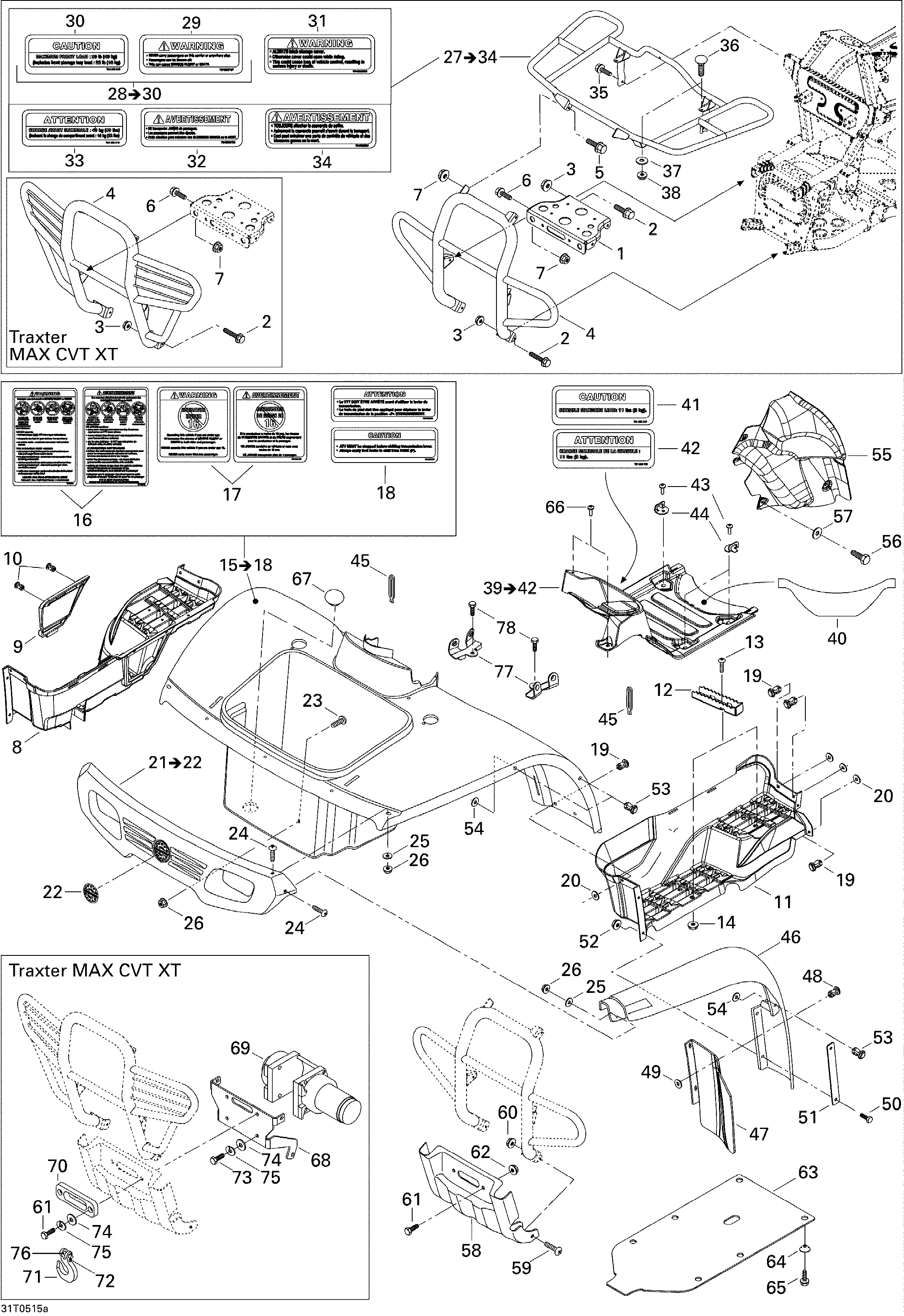

09- Body And Accessories, Front View для BRP Traxter Max CVT 650 - 2005
-
№АртикулНазвание
-
1705200196 Winch Latch (Black)Winch Latch (Black)
-
2207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4705000585 Front Bumper (Black). XTFront Bumper (Black). XT
-
4705000591 Front Bumper (Black). STDFront Bumper (Black). STD
-
5207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
6207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8705001624 Footrest Cover Ass'y RH.. Includes 8 To 10Footrest Cover Ass'y RH.. Includes 8 To 10
-
10293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
11705001627 Footrest Cover Ass'y LH.Footrest Cover Ass'y LH.
-
12705001083 Footrest, BlackFootrest, Black
-
13207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
14233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
15703500494 Front Fender Kit, Viper Red. Includes 15 To 18Front Fender Kit, Viper Red. Includes 15 To 18
-
15703500462 Front Fender Kit, Laurentian Green. Includes 15 To 18Front Fender Kit, Laurentian Green. Includes 15 To 18
-
16704900904 Warning Label, Death And Injuries. English VersionWarning Label, Death And Injuries. English Version
-
16704900905 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
17704900642 Warning Label, Under 16 Years Old. English VersionWarning Label, Under 16 Years Old. English Version
-
17704900436 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
18704900007 Caution Label, Transmission Selector. English VersionCaution Label, Transmission Selector. English Version
-
18704900008 Caution Label, Transmission Selector. French VersionCaution Label, Transmission Selector. French Version
-
19293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
20250200020 Flat WasherFlat Washer
-
21703500011 Front Fascia Ass'y (black). Includes 21 To 22Front Fascia Ass'y (black). Includes 21 To 22
-
22704900130 Bombardier Logo 68 mmBombardier Logo 68 mm
-
23211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
24211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
25224060201 Flat WasherFlat Washer
-
26233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
27703500452 Luggage Rack Kit. Includes 27 To 34Luggage Rack Kit. Includes 27 To 34
-
28704900799 Warning Label, Front Load. Includes 28 To 30Warning Label, Front Load. Includes 28 To 30
-
29704900797 Warning Label (death And Injuries). English VersionWarning Label (death And Injuries). English Version
-
30704900015 Maximum Load Label. English VersionMaximum Load Label. English Version
-
31704900800 Warning Label, Cover Latch. English VersionWarning Label, Cover Latch. English Version
-
32704900798 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
33704900016 Decalque Attention, Charge Maximale. French VersionDecalque Attention, Charge Maximale. French Version
-
34704900801 Warning Label, Cover Latch. French VersionWarning Label, Cover Latch. French Version
-
35207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
36250000035 Truss Phillips Screw M6 X 25Truss Phillips Screw M6 X 25
-
37224061121 Flat WasherFlat Washer
-
38233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
39703500391 Console Kit, Black. Includes 39 To 42Console Kit, Black. Includes 39 To 42
-
40705000541 Reflective SheetReflective Sheet
-
41704900247 Caution Label, Console Load. English VersionCaution Label, Console Load. English Version
-
42704900250 Caution Label, Console Load. French VersionCaution Label, Console Load. French Version
-
43211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
44705000369 Hook, BlackHook, Black
-
45570023800 Windshield LatchWindshield Latch
-
46705001588 LH Front MudguardLH Front Mudguard
-
46705001587 RH Front MudguardRH Front Mudguard
-
47705000755 Mudguard ExtensionMudguard Extension
-
48293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
49234082410 Flat Washer 8 mmFlat Washer 8 mm
-
50207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
51705000754 PlatePlate
-
52233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
53293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
54234082410 Flat Washer 8 mmFlat Washer 8 mm
-
55705000133 LH Tank ProtectorLH Tank Protector
-
55705000134 RH Tank ProtectorRH Tank Protector
-
56210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
57224061201 Flat WasherFlat Washer
-
58705000135 Front Protection Plate (black)Front Protection Plate (black)
-
59211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
60233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
61207602544 Hex Flanged Screw M10 X 25. STDHex Flanged Screw M10 X 25. STD
-
61250000042 Socket Screw 5/16-18 X 1 1/2''. XTSocket Screw 5/16-18 X 1 1/2''. XT
-
62233201414 Hex Flanged Elastic Nut M10. STDHex Flanged Elastic Nut M10. STD
-
63705000949 Skid PlateSkid Plate
-
64705200533 CupCup
-
65207581646 Flanged Screw M8 X 16, Scotch GripFlanged Screw M8 X 16, Scotch Grip
-
66414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
67570041600 Rubber CoverRubber Cover
-
68705000994 Mounting Plate. XTMounting Plate. XT
-
69705000839 Winch. XTWinch. XT
-
70705000194 Cable Guide. XTCable Guide. XT
-
71705000618 Hook. XTHook. XT
-
72250400022 Cotter Pin. XTCotter Pin. XT
-
73250000041 Socket Screw 5/16''-18 X 1''. XTSocket Screw 5/16''-18 X 1''. XT
-
74234081410 Flat Washer 8 mm. XTFlat Washer 8 mm. XT
-
75234181401 Lock Washer 8 mm. XTLock Washer 8 mm. XT
-
76250400021 Clevis Pin. XTClevis Pin. XT
-
77705000311 Bracket, BlackBracket, Black
-
78210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
