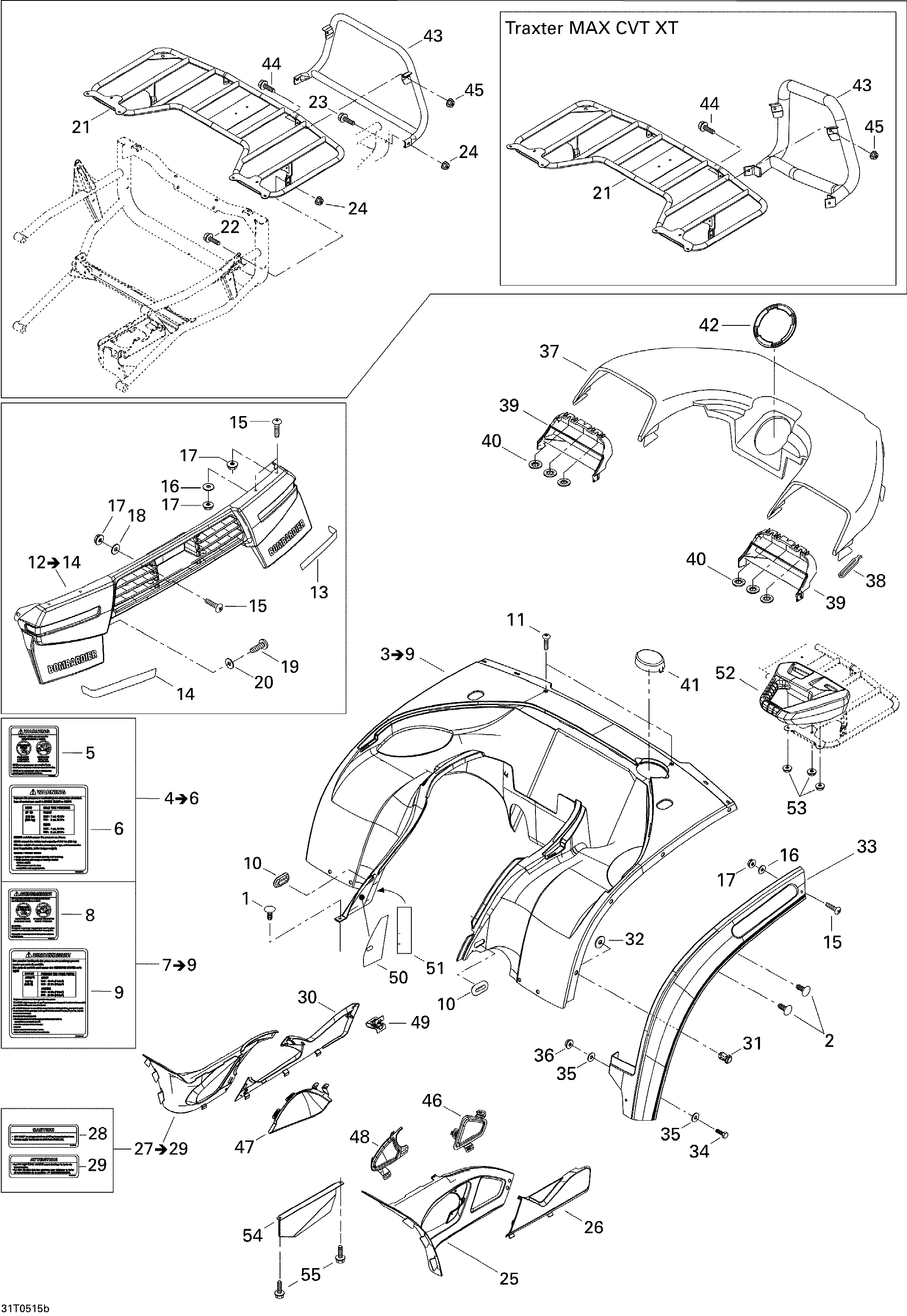

09- Body And Accessories, Rear View для BRP Traxter Max CVT 650 - 2005
-
№АртикулНазвание
-
1293730011 Dart, BlackDart, Black
-
2293730011 Dart, BlackDart, Black
-
3703500463 Rear Fender Kit, Viper Red. Includes 3 To 9Rear Fender Kit, Viper Red. Includes 3 To 9
-
3703500464 Rear Fender Kit, Laurentian Green. Includes 3 To 9Rear Fender Kit, Laurentian Green. Includes 3 To 9
-
4704900857 Warning Label Ass'y, English Version. Includes 4 To 6Warning Label Ass'y, English Version. Includes 4 To 6
-
10705001121 Oblong GrommetOblong Grommet
-
11732600009 Pan Head Forming Screw M6 X 18Pan Head Forming Screw M6 X 18
-
12703500012 Rear Fascia Ass'y (black). Includes 12 To 14Rear Fascia Ass'y (black). Includes 12 To 14
-
13704900085 RH Rear ReflectorRH Rear Reflector
-
14704900086 LH Rear ReflectorLH Rear Reflector
-
15211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
16224060201 Flat WasherFlat Washer
-
17233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
18224060201 Flat WasherFlat Washer
-
19732600009 Pan Head Forming Screw M6 X 18Pan Head Forming Screw M6 X 18
-
20224061121 Flat WasherFlat Washer
-
21705000674 Luggage Rack, BlackLuggage Rack, Black
-
22207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
23207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
24233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
25705000934 Lh. Upper Panel, Viper RedLh. Upper Panel, Viper Red
-
25705000935 Lh. Upper Panel, Laurentian GreenLh. Upper Panel, Laurentian Green
-
26705000942 Lh. Lower Panel, Viper RedLh. Lower Panel, Viper Red
-
26705000943 Lh. Lower Panel, Laurentian GreenLh. Lower Panel, Laurentian Green
-
27703500404 Rh. Upper Panel, Viper Red. Includes 27 To 29Rh. Upper Panel, Viper Red. Includes 27 To 29
-
27703500493 Rh. Upper Panel, Laurentian Green. Includes 27 To 29Rh. Upper Panel, Laurentian Green. Includes 27 To 29
-
28704900007 Caution Label, Transmission Selector. English VersionCaution Label, Transmission Selector. English Version
-
29704900008 Caution Label, Transmission Selector. French VersionCaution Label, Transmission Selector. French Version
-
30705000946 Rh. Lower Panel, Viper RedRh. Lower Panel, Viper Red
-
30705000947 Rh. Lower Panel, Laurentian GreenRh. Lower Panel, Laurentian Green
-
31293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
32234082410 Flat Washer 8 mmFlat Washer 8 mm
-
33705001593 LH Front MudguardLH Front Mudguard
-
33705001592 RH Front MudguardRH Front Mudguard
-
34207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
35224060201 Flat WasherFlat Washer
-
36233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
37705000576 Fender Cover, Viper RedFender Cover, Viper Red
-
37705000831 Fender Cover, Laurentian GreenFender Cover, Laurentian Green
-
38570023800 Windshield LatchWindshield Latch
-
39705000180 LH Grill, BlackLH Grill, Black
-
39705000181 RH Grill, BlackRH Grill, Black
-
40250100000 Push NutPush Nut
-
41705000132 Cover, BlackCover, Black
-
42705000207 CapCap
-
43705000602 Rear Bumper, Black. STDRear Bumper, Black. STD
-
43705001267 Rear Bumper, Black. XTRear Bumper, Black. XT
-
44207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
45233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
46705000367 LH Rear Grill, BlackLH Rear Grill, Black
-
47705000952 RH. Rear Grill (Black)RH. Rear Grill (Black)
-
48705000368 LH Front GrillLH Front Grill
-
49517302785 ClipClip
-
50705001297 Reflective SheetReflective Sheet
-
51705000492 Reflective SheetReflective Sheet
-
52705001761 LH HandleLH Handle
-
52705001762 RH HandleRH Handle
-
53233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
54705001317 Heat ShieldHeat Shield
-
55210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
