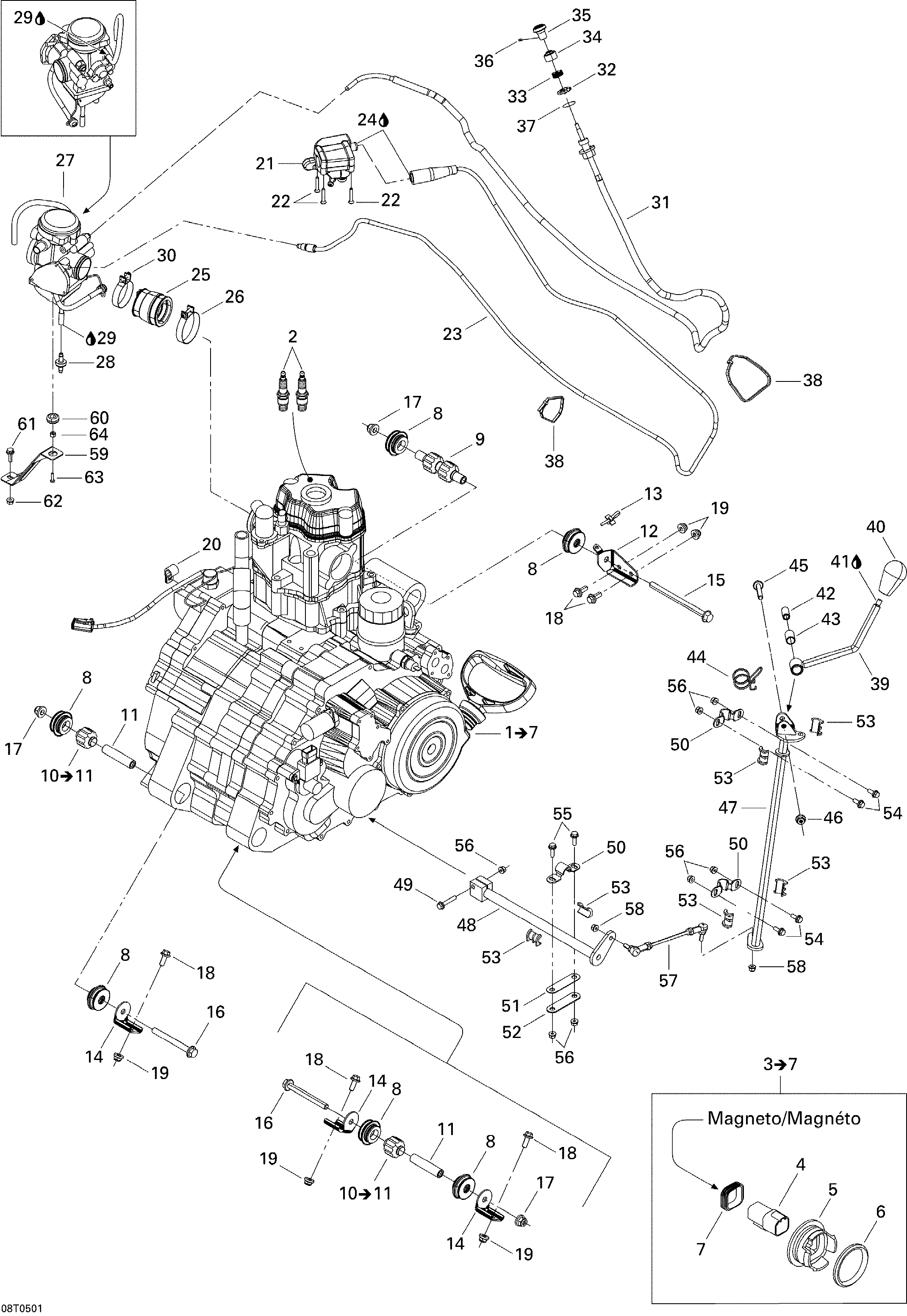

01- Engine And Engine Support для BRP Traxter Max Std & Max XT - 2005
-
№АртикулНазвание
-
1707000041 Rotax 4 Strokes Engine «511». Includes 1 to 7Rotax 4 Strokes Engine «511». Includes 1 to 7
-
2707000008 Spark Plug (Ngk/Dr8Ea)Spark Plug (Ngk/Dr8Ea)
-
3707000031 Adaptor Ass'Y. Includes 3 to 7Adaptor Ass'Y. Includes 3 to 7
-
4270000137 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
6293300033 GasketGasket
-
7293200055 GasketGasket
-
8707000094 Anti-Vibration MountAnti-Vibration Mount
-
9707000019 Engine Support BushingEngine Support Bushing
-
10707000030 Support Bushing. Includes 10 to 11Support Bushing. Includes 10 to 11
-
11707000004 RH Lower BushingRH Lower Bushing
-
12707000082 Front Engine Bracket (Black)Front Engine Bracket (Black)
-
13293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
14705200197 Engine BracketEngine Bracket
-
15230604044 Hex Flanged Screw M10 X 140Hex Flanged Screw M10 X 140
-
16207609544 Hex Flanged Screw M10 X 95Hex Flanged Screw M10 X 95
-
17233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
18207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20705600232 Hose Retainer 13 mmHose Retainer 13 mm
-
21707000370 Throttle HandleThrottle Handle
-
22205052588 Socket Screw M5 X 25Socket Screw M5 X 25
-
23707000311 Throttle CableThrottle Cable
-
24293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
25707000247 Carburator AdaptorCarburator Adaptor
-
26293650157 Gemi ClampGemi Clamp
-
27707000363 CarburatorCarburator
-
28275500398 Check ValveCheck Valve
-
29413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
-
30293650156 Gemi ClampGemi Clamp
-
31707000427 Choke CableChoke Cable
-
32707000067 «d» Shaped Washer«d» Shaped Washer
-
33707000087 Holder CapHolder Cap
-
34707000088 Rubber CapRubber Cap
-
35707000089 ButtonButton
-
36250000108 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
37293300075 O-RingO-Ring
-
38414115200 Tie-RapTie-Rap
-
39707000010 Lever Ass'YLever Ass'Y
-
40705500022 Lever ButtonLever Button
-
41293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
42705500150 BushingBushing
-
43705500193 Adjuster BushingAdjuster Bushing
-
44705500024 Lever SpringLever Spring
-
45207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
46233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
47705500358 Upper Tube (Black)Upper Tube (Black)
-
48705500431 Lower TubeLower Tube
-
49207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
50705500041 Retainer ClampRetainer Clamp
-
51707000080 Shim 1.0 mmShim 1.0 mm
-
52707000081 Shim 2.0 mmShim 2.0 mm
-
53705500033 Half RingHalf Ring
-
54207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
55207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
56233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
57707000068 Tie Rod Ass'YTie Rod Ass'Y
-
58233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
59707200159 Carburator SupportCarburator Support
-
60293720053 GrommetGrommet
-
61207662044 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
62233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
63207341644 Hex Screw M4 X 16 (Scotch Grip)Hex Screw M4 X 16 (Scotch Grip)
-
64707000181 SpacerSpacer
