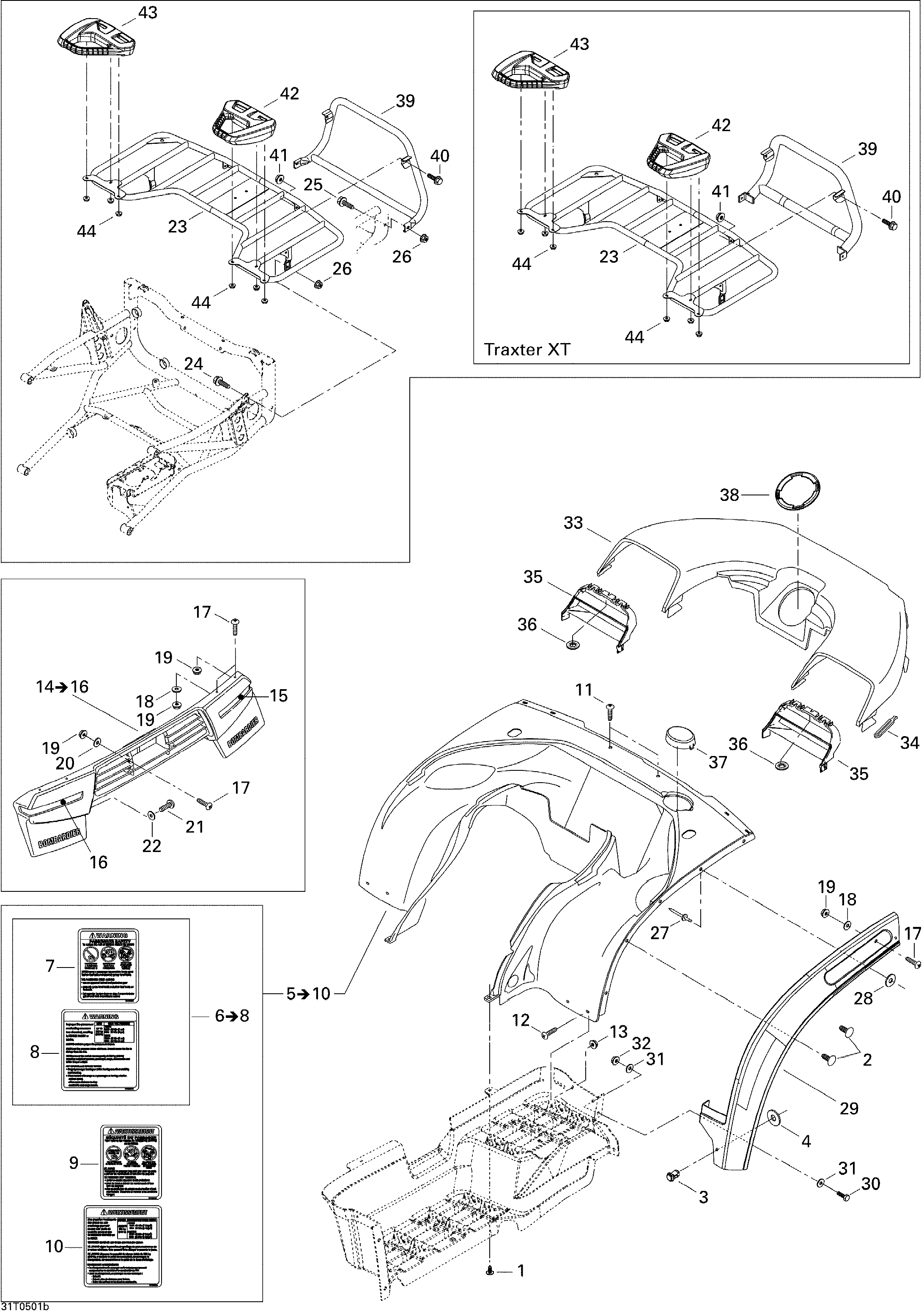

09- Body And Accessories 2 для BRP Traxter Max Std & Max XT - 2005
-
№АртикулНазвание
-
1293730011 Dart (Black)Dart (Black)
-
2293730011 Dart (Black)Dart (Black)
-
3293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5703500465 Rear Fender, Yellow. Yellow, Includes 5 to 10Rear Fender, Yellow. Yellow, Includes 5 to 10
-
5703500466 Rear Fender, Viper Red. Viper Red, Includes 5 to 10Rear Fender, Viper Red. Viper Red, Includes 5 to 10
-
5703500467 Rear Fender, Laurentian Green. Laurentian Green, Includes 5 to 10Rear Fender, Laurentian Green. Laurentian Green, Includes 5 to 10
-
6704900857 Warning Label (12 Years Old, Tires). Includes 6 to 8Warning Label (12 Years Old, Tires). Includes 6 to 8
-
11732600009 Pan Head Forming Screw M6 X 18Pan Head Forming Screw M6 X 18
-
12211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
13233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
14703500012 Rear Fascia Ass'y (black). Includes 14 to 16Rear Fascia Ass'y (black). Includes 14 to 16
-
15704900085 RH Rear ReflectorRH Rear Reflector
-
16704900086 LH Rear ReflectorLH Rear Reflector
-
17211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
18224060201 Flat WasherFlat Washer
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20224060201 Flat WasherFlat Washer
-
21732600009 Pan Head Forming Screw M6 X 18Pan Head Forming Screw M6 X 18
-
22224061121 Flat WasherFlat Washer
-
23705000674 Luggage Rack, BlackLuggage Rack, Black
-
24207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
25207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
26233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
27293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
28234082410 Flat Washer 8 mmFlat Washer 8 mm
-
29705001593 LH Front MudguardLH Front Mudguard
-
29705001592 RH Front MudguardRH Front Mudguard
-
30207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
31224060201 Flat WasherFlat Washer
-
32233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
33705000179 Fender Cover, Yellow. YellowFender Cover, Yellow. Yellow
-
33705000576 Fender Cover, Viper Red. Viper RedFender Cover, Viper Red. Viper Red
-
33705000831 Fender Cover, Laurentian Green. Laurentian GreenFender Cover, Laurentian Green. Laurentian Green
-
34570023800 Windshield LatchWindshield Latch
-
35705000180 LH Grill (Black)LH Grill (Black)
-
35705000181 RH Grill (Black)RH Grill (Black)
-
36250100000 Push NutPush Nut
-
37705000132 Cover (Black)Cover (Black)
-
38705000207 CapCap
-
39705000602 Rear Bumper (Black). STDRear Bumper (Black). STD
-
39705001267 Rear Bumper (Black). XTRear Bumper (Black). XT
-
40207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
41233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
42705001761 LH HandleLH Handle
-
43705001762 RH HandleRH Handle
-
44233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
