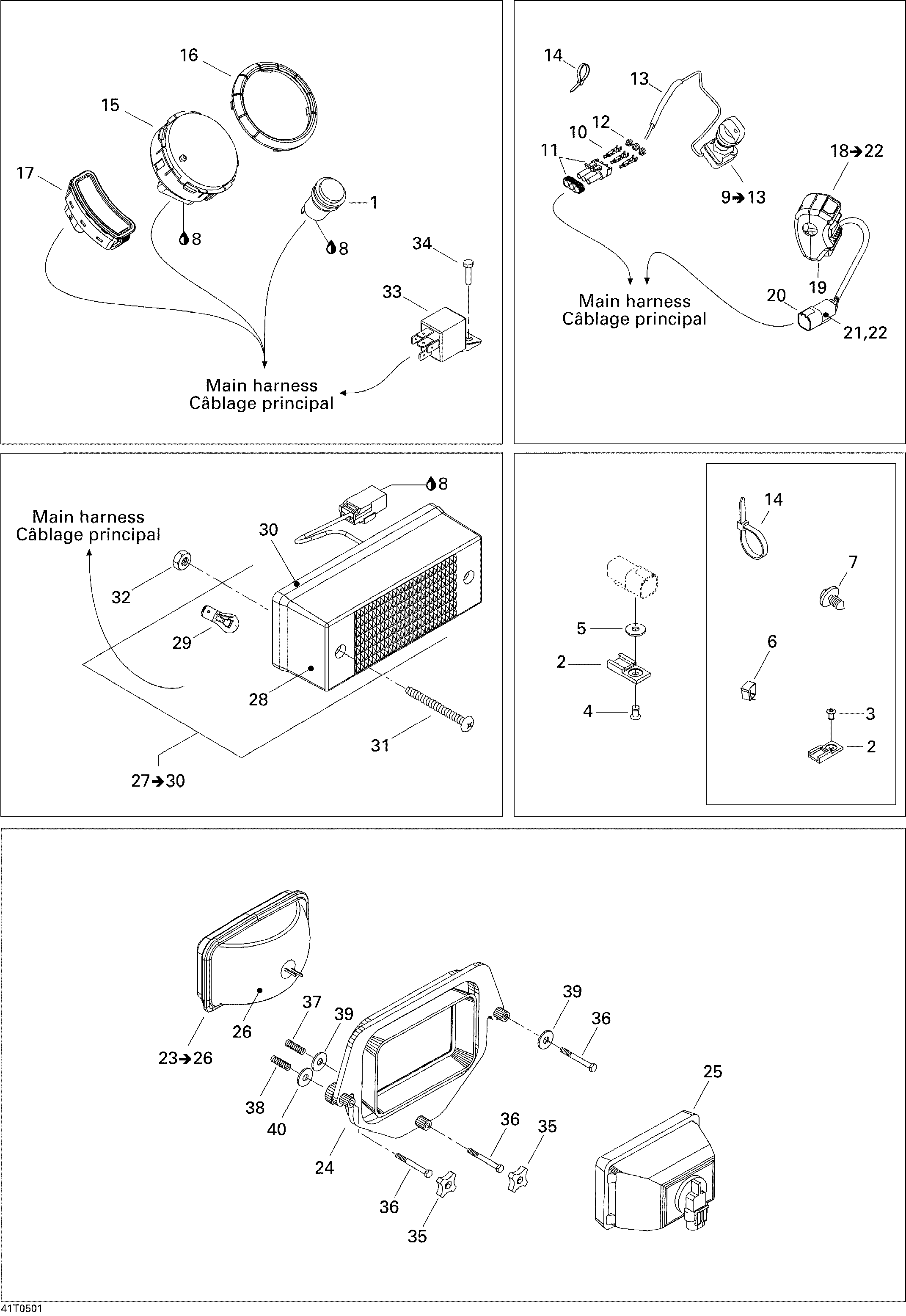

10- Electrical Accessories для BRP Traxter Max Std & Max XT - 2005
-
№АртикулНазвание
-
1861507200 Outlet (12 Volts)Outlet (12 Volts)
-
2270000141 ClipClip
-
3390402400 Pop-rivet 3/16''Pop-rivet 3/16''
-
4390402300 Pop-rivet 3/16''Pop-rivet 3/16''
-
5391301600 WasherWasher
-
6414227300 ClipClip
-
7293730018 Mount DartMount Dart
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9710000192 Ignition Switch Ass'y. Includes 9 to 13Ignition Switch Ass'y. Includes 9 to 13
-
9710000101 Blank Key (''B'' Type)Blank Key (''B'' Type)
-
10278000223 Female TerminalFemale Terminal
-
11278000273 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
12278000218 Wire SealWire Seal
-
13710000171 Protector TubeProtector Tube
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
14293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
14414115200 Tie-RapTie-Rap
-
16710000137 Blank Key (''A'' Type)Blank Key (''A'' Type)
-
15710000674 SpeedometerSpeedometer
-
16710000353 Trim RingTrim Ring
-
17710000592 LH Warning LightLH Warning Light
-
18710000088 Multi-function Switch Ass'y. Includes 18 to 22Multi-function Switch Ass'y. Includes 18 to 22
-
19710000173 Back CoverBack Cover
-
20409015200 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
21409014600 Male Lock (6 Circuits)Male Lock (6 Circuits)
-
22409014800 Male TerminalMale Terminal
-
23710000174 Headlamp Ass'y. Includes 23 to 26Headlamp Ass'y. Includes 23 to 26
-
24705000283 Lamp SupportLamp Support
-
25705000284 Lamp HousingLamp Housing
-
26710000176 BulbBulb
-
27710000711 Tail Light Housing Ass'y. Includes 27 to 30Tail Light Housing Ass'y. Includes 27 to 30
-
28710000055 Tail Light LensTail Light Lens
-
29410504100 Tail Light BulbTail Light Bulb
-
30710000129 GasketGasket
-
31208656091 Pan Head Phillips Screw M5 X 60Pan Head Phillips Screw M5 X 60
-
32233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
33410113200 RelayRelay
-
34210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
35572106600 HandleHandle
-
36250000008 Hex Screw K40 X 40Hex Screw K40 X 40
-
37710000285 SpringSpring
-
38517168600 SpringSpring
-
39234042600 Flat Washer 4 mmFlat Washer 4 mm
-
40234040600 Flat Washer 4 mmFlat Washer 4 mm
