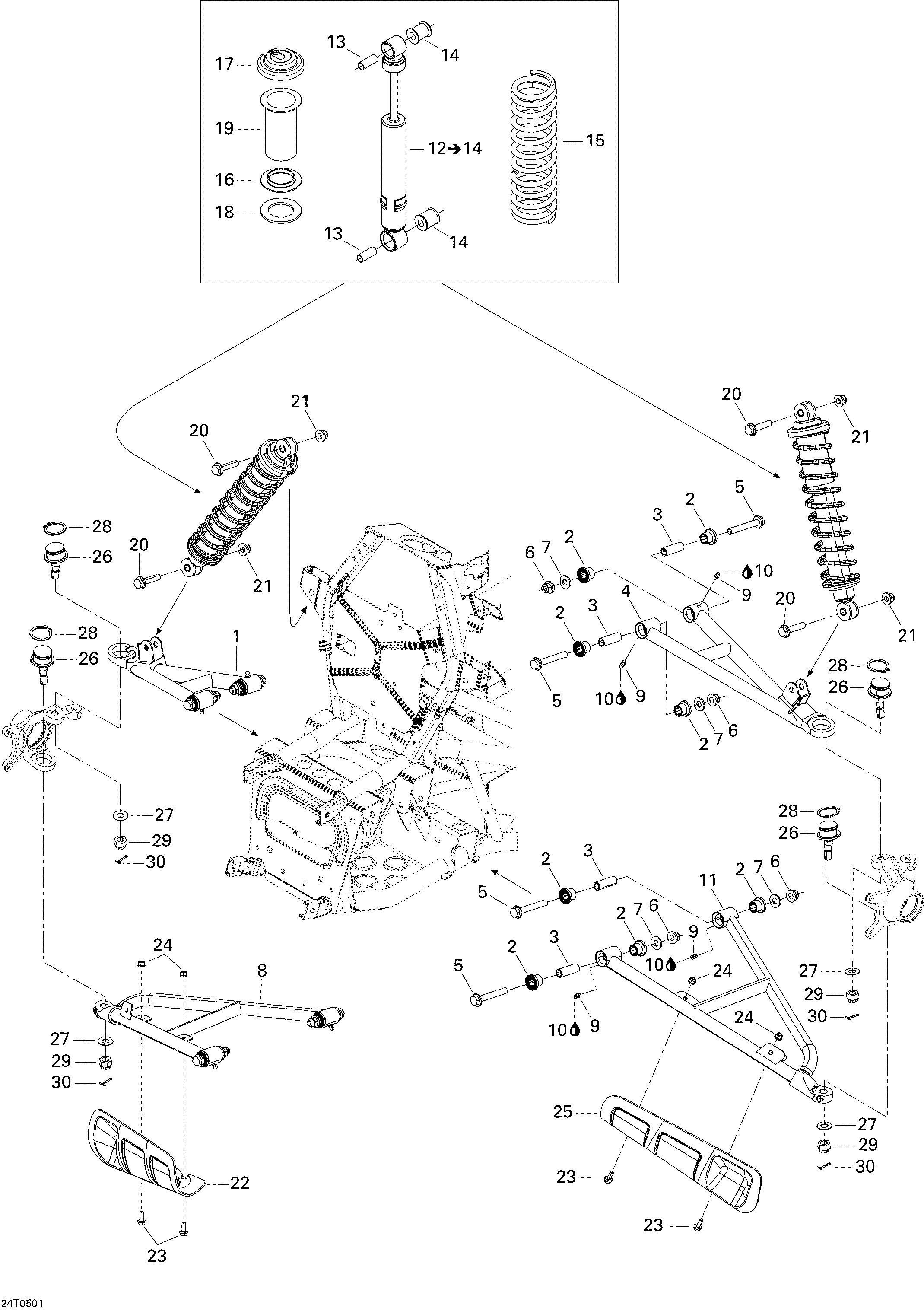

07- Front Suspension для BRP Traxter Max Std & Max XT - 2005
-
№АртикулНазвание
-
1706200318 RH Upper Arm (Black)RH Upper Arm (Black)
-
2706200181 CushionCushion
-
3706200182 Inner BushingInner Bushing
-
4706200320 LH Upper Arm (Black)LH Upper Arm (Black)
-
5207607046 Hex Flanged Screw M10 X 70Hex Flanged Screw M10 X 70
-
6233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
7234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
8706200360 RH Lower Arm (Black)RH Lower Arm (Black)
-
9408200700 Grease FittingGrease Fitting
-
10293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
11706200365 LH Lower Arm (Black)LH Lower Arm (Black)
-
12706200429 Front Shock. Includes 12 to 14Front Shock. Includes 12 to 14
-
13706200488 BushingBushing
-
14706200489 CushionCushion
-
15706200467 Front Spring, Yellow. STDFront Spring, Yellow. STD
-
16706200460 Spring Guide. XTSpring Guide. XT
-
17503140600 Spring StopperSpring Stopper
-
18706000375 Spring SeatSpring Seat
-
19503139800 ProtectorProtector
-
20207604544 Hex Flanged Screw M10 X 45Hex Flanged Screw M10 X 45
-
21233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
22706200179 Arm ProtectorArm Protector
-
23207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
24233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
25706200180 Arm ProtectorArm Protector
-
26706200091 Ball JointBall Joint
-
27706200281 Hard WasherHard Washer
-
28293370009 Circlip 32 mmCirclip 32 mm
-
29232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
30211400017 Cotter PinCotter Pin
