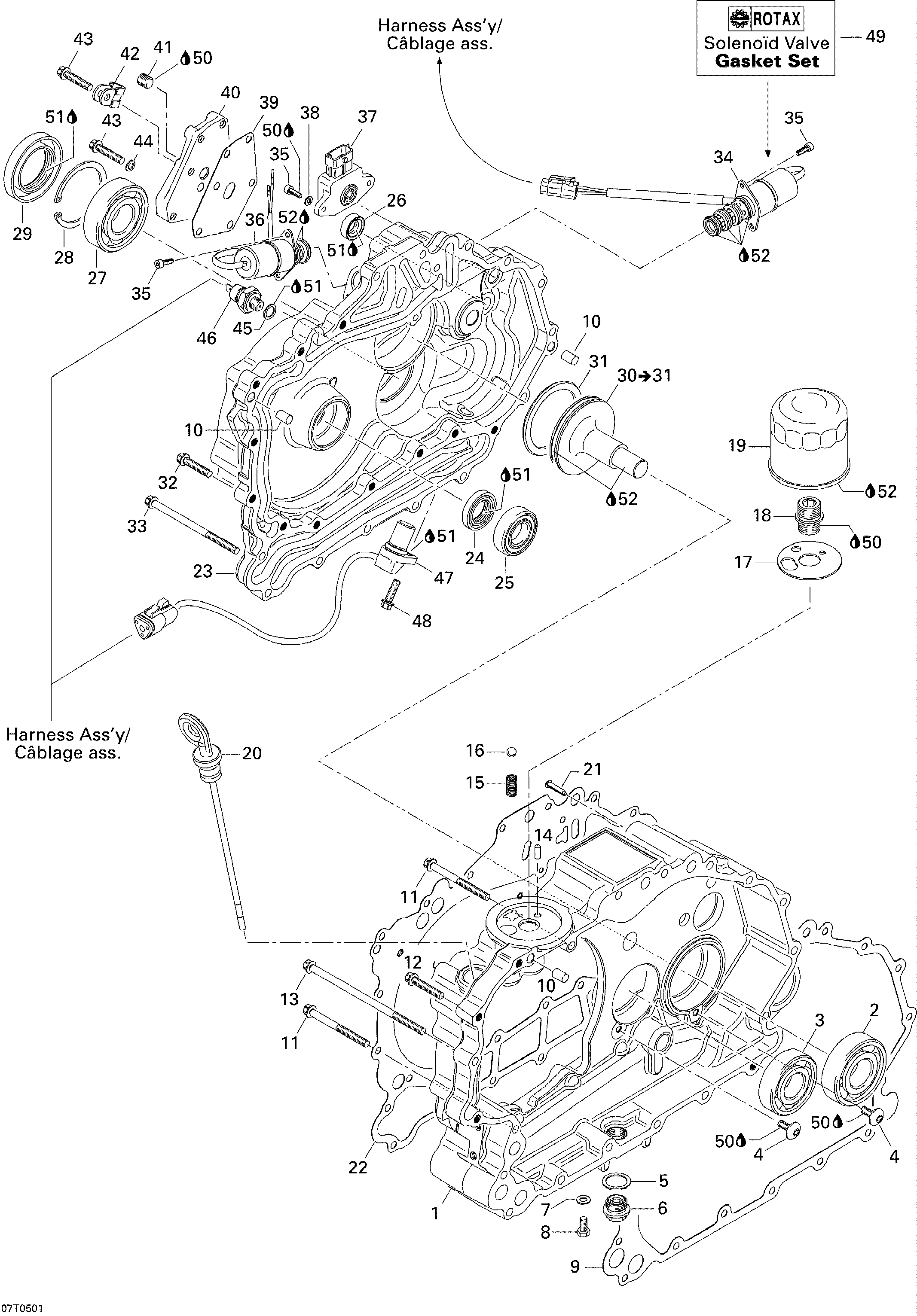

05- Clutch Housing And Cover для BRP Traxter Max Std & Max XT - 2005
-
№АртикулНазвание
-
1420211921 Clutch HousingClutch Housing
-
2420932825 Ball Bearing 6305Ball Bearing 6305
-
3420632200 Ball Bearing 63/22Ball Bearing 63/22
-
4420241531 Screw M6 X 13Screw M6 X 13
-
5420552280 O-RingO-Ring
-
6420840277 Drain Plug M18 X 1.5Drain Plug M18 X 1.5
-
7404146600 Seal WasherSeal Washer
-
8420241751 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
9420650582 Gasket (Clutch Housing)Gasket (Clutch Housing)
-
10420632010 Pin M8 X 12Pin M8 X 12
-
11420940576 Hex Flanged Screw M6 X 70Hex Flanged Screw M6 X 70
-
12420941126 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
13420640371 Hex Flanged Screw M6 X 130Hex Flanged Screw M6 X 130
-
14420232710 Needle PinNeedle Pin
-
15420238050 SpringSpring
-
16420232370 BallBall
-
17420627370 Oil Filter WasherOil Filter Washer
-
18420924420 Oil Filter NippleOil Filter Nipple
-
19420256620 Oil FilterOil Filter
-
20420256610 Oil DipstickOil Dipstick
-
21420229170 Groove Pin M4 X 20Groove Pin M4 X 20
-
22420650592 Gasket (Clutch Cover)Gasket (Clutch Cover)
-
23420211811 Clutch CoverClutch Cover
-
24420930390 Oil SealOil Seal
-
25420232190 Ball Bearing 6304Ball Bearing 6304
-
26420250455 Oil SealOil Seal
-
27420932825 Ball Bearing 6305Ball Bearing 6305
-
28420445070 Retaining RingRetaining Ring
-
29420650680 Oil SealOil Seal
-
30420257056 Disengaging Piston. Includes 30 to 31Disengaging Piston. Includes 30 to 31
-
31420650550 K-Grooved RingK-Grooved Ring
-
32420241941 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
33420640361 Hex Flanged Screw M6 X 100Hex Flanged Screw M6 X 100
-
34420256550 Solenoid ValveSolenoid Valve
-
35420440291 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
36420256560 Pressure ValvePressure Valve
-
37420265600 Potentiometer (Sub Transmission)Potentiometer (Sub Transmission)
-
38420244073 Washer 4.3Washer 4.3
-
39420650620 GasketGasket
-
40420211935 Oil Duct CoverOil Duct Cover
-
41420240480 Plug ScrewPlug Screw
-
42414176000 Open ClampOpen Clamp
-
43420241941 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
44420230415 Seal WasherSeal Washer
-
45420230150 Oil SealOil Seal
-
46420256640 Oil Pressure SwitchOil Pressure Switch
-
47420265622 Speed SensorSpeed Sensor
-
48420241861 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
49420296375 Solenoid Valve Gasket SetSolenoid Valve Gasket Set
-
50293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
51293550030 Grease, Super LubeGrease, Super Lube
-
52293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
