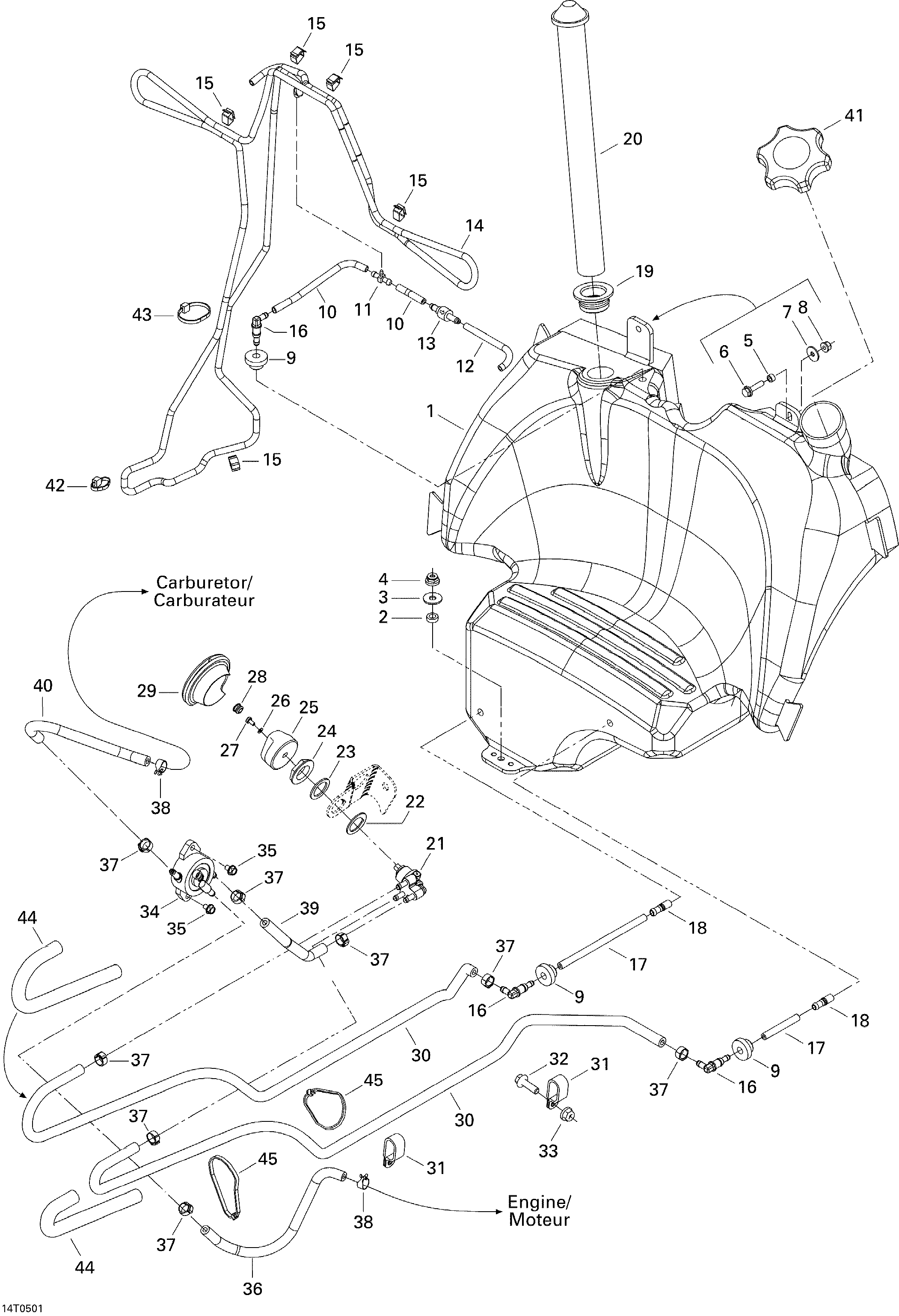

02- Fuel System для BRP Traxter Max Std & Max XT - 2005
-
№АртикулНазвание
-
1709000025 Fuel TankFuel Tank
-
2293900028 BushingBushing
-
3234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
5293900029 BushingBushing
-
6207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
7224061201 Flat WasherFlat Washer
-
8233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
9570045500 GrommetGrommet
-
10415080200 Polyurethane HosePolyurethane Hose
-
11414222500 T-fittingT-fitting
-
12709000029 Vent HoseVent Hose
-
13275500479 Check ValveCheck Valve
-
14709000031 Vent HoseVent Hose
-
15414227300 ClipClip
-
16414580600 Elbow Male ConnectorElbow Male Connector
-
17415080200 Polyurethane HosePolyurethane Hose
-
18414865700 Fuel FilterFuel Filter
-
19293720058 GrommetGrommet
-
20709000078 Fuel GaugeFuel Gauge
-
21275500098 Fuel ValveFuel Valve
-
22293250004 GasketGasket
-
23250200015 WasherWasher
-
24212100009 Hex Plastic NutHex Plastic Nut
-
25275500263 Fuel Valve Knob, BlackFuel Valve Knob, Black
-
26234040600 Flat Washer 4 mmFlat Washer 4 mm
-
27208640860 Pan Head Phillips Screw M4 X 8Pan Head Phillips Screw M4 X 8
-
28275500241 Fuel Valve Cap Plug, BlackFuel Valve Cap Plug, Black
-
29709000005 Fuel Valve GrommetFuel Valve Grommet
-
30415079800 Hose 1/4''Hose 1/4''
-
31709000057 Open ClampOpen Clamp
-
32207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
33233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
34709000103 Gas PumpGas Pump
-
35210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
36709000024 HoseHose
-
37293650042 Oetiker ClampOetiker Clamp
-
38414415200 Universal Spring ClampUniversal Spring Clamp
-
39415079800 Hose 1/4''Hose 1/4''
-
40709000104 Gas HoseGas Hose
-
41513033025 CapCap
-
42293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
43414115200 Tie-RapTie-Rap
-
44409901800 TubingTubing
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
