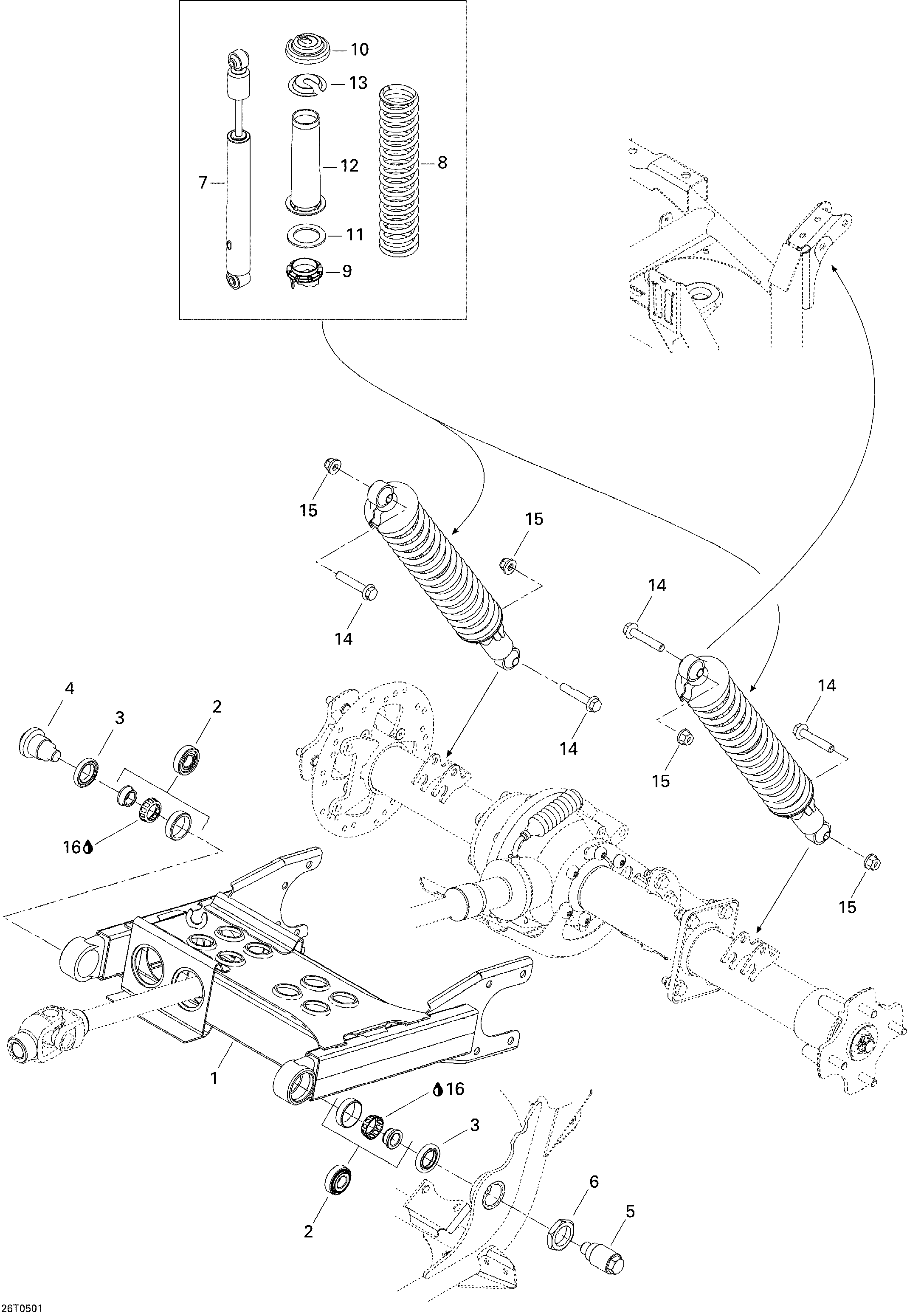

08- Rear Suspension для BRP Traxter Max Std & Max XT - 2005
-
№АртикулНазвание
-
1706000298 Swing Arm, BlackSwing Arm, Black
-
2706000169 Cone BearingCone Bearing
-
3706000010 Oil SealOil Seal
-
4706000092 RH Pivot BoltRH Pivot Bolt
-
5706000093 LH Pivot BoltLH Pivot Bolt
-
6706000006 Hex Jam NutHex Jam Nut
-
7706000380 Rear ShockRear Shock
-
8706000306 Rear Spring, YellowRear Spring, Yellow
-
9706000294 Adjuster RingAdjuster Ring
-
10503140600 Spring StopperSpring Stopper
-
11706000335 Spring SeatSpring Seat
-
12503190436 ProtectorProtector
-
13503141600 CapCap
-
14207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
15233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
16293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
