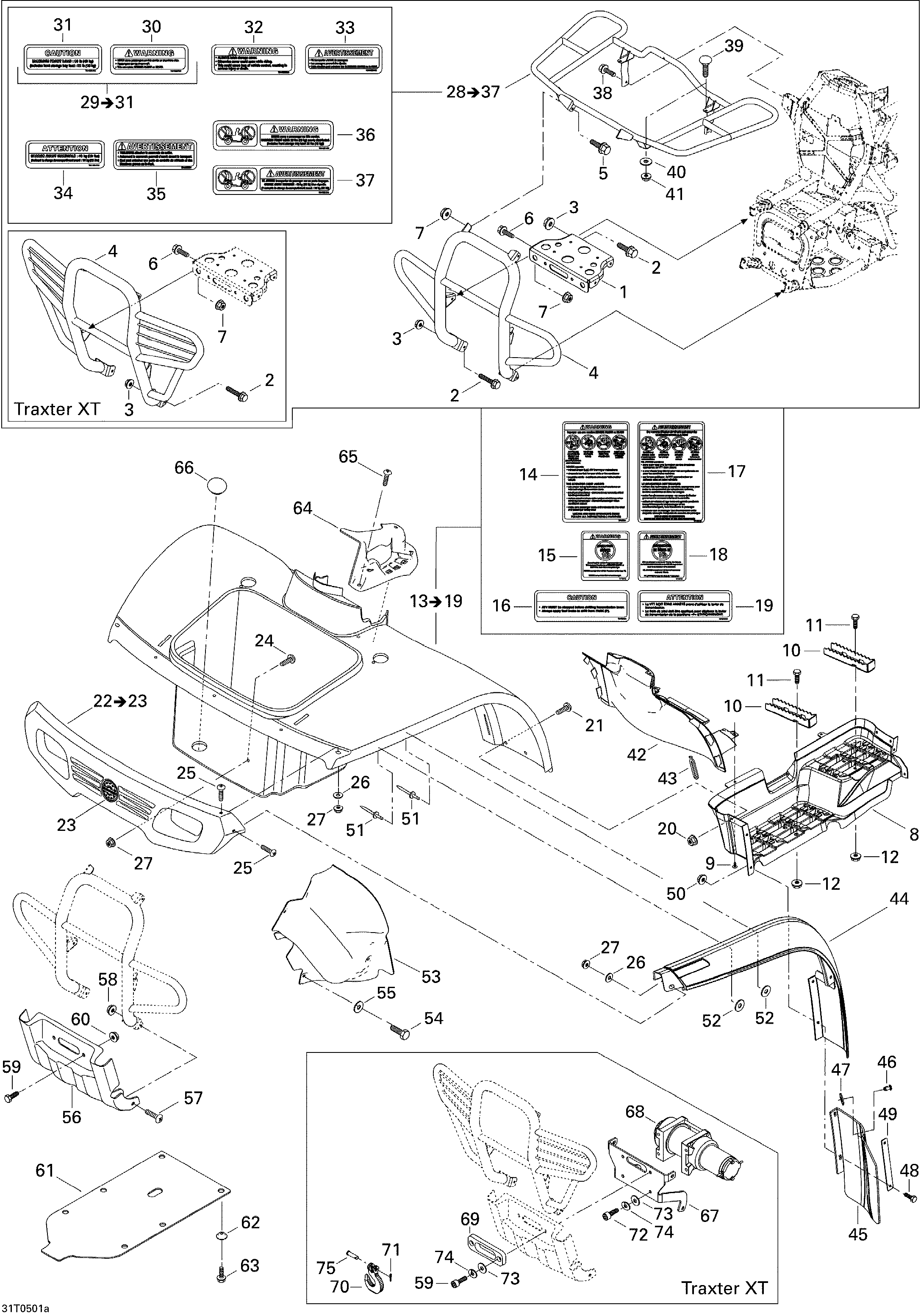

09- Body And Accessories 1 для BRP Traxter Max Std & Max XT - 2005
-
№АртикулНазвание
-
1705200196 Winch Latch (Black)Winch Latch (Black)
-
2207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4705000585 Front Bumper (Black). XTFront Bumper (Black). XT
-
4705000591 Front Bumper (Black). STDFront Bumper (Black). STD
-
5207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
6207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8705001628 RH FootboardRH Footboard
-
8705001629 LH FootboardLH Footboard
-
9293730011 Dart (Black)Dart (Black)
-
10705001083 Footrest (black)Footrest (black)
-
11207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
12233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
13703500495 Front Fender, Laurentian Green. Laurentian Green, Includes 13 to 19Front Fender, Laurentian Green. Laurentian Green, Includes 13 to 19
-
13703500496 Front Fender, Yellow. Yellow, Includes 13 to 19Front Fender, Yellow. Yellow, Includes 13 to 19
-
13703500497 Front Fender, Viper Red. Viper Red, Includes 13 to 19Front Fender, Viper Red. Viper Red, Includes 13 to 19
-
14704900904 Warning Label (death, Injuries). English VersionWarning Label (death, Injuries). English Version
-
15704900642 Warning Label (under 16 Years Old). English VersionWarning Label (under 16 Years Old). English Version
-
16704900007 Warning Label, Transmission Selector. English VersionWarning Label, Transmission Selector. English Version
-
18704900436 Warning Label (under 16 Years Old). French VersionWarning Label (under 16 Years Old). French Version
-
19704900008 Warning Label (transmission Selector). French VersionWarning Label (transmission Selector). French Version
-
20233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
21211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
22703500011 Front Fascia Ass'y (black). Includes 22 to 23Front Fascia Ass'y (black). Includes 22 to 23
-
23704900130 Bombardier Logo 68 mmBombardier Logo 68 mm
-
24211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
25211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
26224060201 Flat WasherFlat Washer
-
27233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
28703500452 Luggage Rack Kit. Includes 28 to 37Luggage Rack Kit. Includes 28 to 37
-
29704900799 Warning Label, Front Load. Includes 29 to 31Warning Label, Front Load. Includes 29 to 31
-
32704900800 Warning Label, Cover Latch. English VersionWarning Label, Cover Latch. English Version
-
33704900798 Warning Label (death And Injuries). French VersionWarning Label (death And Injuries). French Version
-
34704900016 Caution Decal, Maximum Load. French VersionCaution Decal, Maximum Load. French Version
-
35704900801 Warning Label (cover Latch). French VersionWarning Label (cover Latch). French Version
-
36704900453 Warning Label (front Load). English VersionWarning Label (front Load). English Version
-
38207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
39250000035 Truss Phillips Screw M6 X 25Truss Phillips Screw M6 X 25
-
40224061121 Flat WasherFlat Washer
-
41233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
42705000010 Tank CoverTank Cover
-
43570023800 Windshield LatchWindshield Latch
-
44705001588 LH Front MudguardLH Front Mudguard
-
44705001587 RH Front MudguardRH Front Mudguard
-
45705000755 Mudguard ExtensionMudguard Extension
-
46293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
47234082410 Flat Washer 8 mmFlat Washer 8 mm
-
48207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
49705000754 PlatePlate
-
50233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
51293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
52234082410 Flat Washer 8 mmFlat Washer 8 mm
-
53705000133 LH Tank ProtectorLH Tank Protector
-
53705000134 RH Tank ProtectorRH Tank Protector
-
54210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
55224061201 Flat WasherFlat Washer
-
56705000135 Front Protection Plate (black)Front Protection Plate (black)
-
57211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
58233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
59207602544 Hex Flanged Screw M10 X 25. STDHex Flanged Screw M10 X 25. STD
-
59250000042 Socket Screw 5/16-18 X 1 1/2''. XTSocket Screw 5/16-18 X 1 1/2''. XT
-
60233201414 Hex Flanged Elastic Nut M10. STDHex Flanged Elastic Nut M10. STD
-
61705000675 Skid PlateSkid Plate
-
62705200533 CupCup
-
63207581646 Flanged Screw M8 X 16, Scotch GripFlanged Screw M8 X 16, Scotch Grip
-
64705000081 Lever IndicatorLever Indicator
-
65414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
66570041600 Rubber CoverRubber Cover
-
67705000994 Mounting Plate. XTMounting Plate. XT
-
68705000839 Winch. XTWinch. XT
-
69705000194 Cable Guide. XTCable Guide. XT
-
70705000618 Hook. XTHook. XT
-
71250400022 Cotter Pin. XTCotter Pin. XT
-
72250000041 Socket Screw 5/16''-18 X 1''. XTSocket Screw 5/16''-18 X 1''. XT
-
73234081410 Flat Washer 8 mm. XTFlat Washer 8 mm. XT
-
74234181401 Lock Washer 8 mm. XTLock Washer 8 mm. XT
-
75250400021 Clevis Pin. XTClevis Pin. XT
