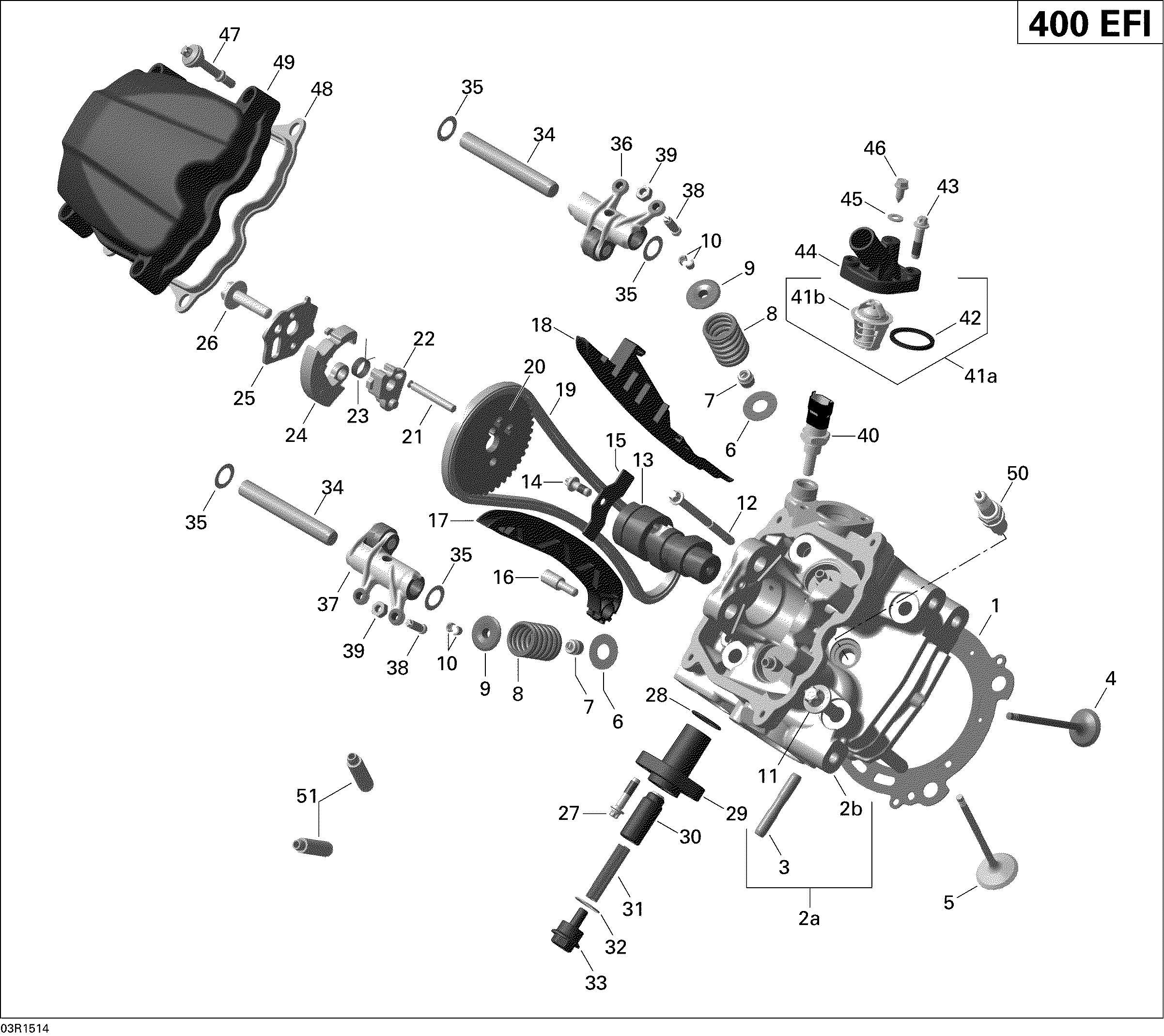

01- Cylinder Head _03R1514 для BRP Outlander Max 400 EFI, STD, XT (International only) - 2015
-
№АртикулНазвание
-
1420630195 Cylinder Head GasketCylinder Head Gasket
-
2a420613532 Cylinder Head Ass'y. Includes 2a to 3Cylinder Head Ass'y. Includes 2a to 3
-
3420941014 Stud M8 x 26Stud M8 x 26
-
4420254351 Intake Valve, 31 mmIntake Valve, 31 mm
-
5420254361 Exhaust Valve, 27 mmExhaust Valve, 27 mm
-
6420627770 Thrust WasherThrust Washer
-
7420230515 Valve Stem SealValve Stem Seal
-
8420239295 Valve SpringValve Spring
-
9420254132 Valve Spring RetainerValve Spring Retainer
-
10420254120 Cotter ValveCotter Valve
-
11420641550 Torx Screw M10 X 140Torx Screw M10 X 140
-
12420440342 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
13420620011 CamshaftCamshaft
-
14420241525 Torx Screw M6 X 16Torx Screw M6 X 16
-
15420627743 Holding StripHolding Strip
-
16420240941 Bearing Screw M6Bearing Screw M6
-
17420436015 Chain Tension GuideChain Tension Guide
-
18420236581 Chain GuideChain Guide
-
19420297063 Silent ChainSilent Chain
-
20420254433 Camshaft Sprocket, 42 TeethCamshaft Sprocket, 42 Teeth
-
21420620120 Deko ShaftDeko Shaft
-
22420231080 SpacerSpacer
-
23420238270 Deko Torsion SpringDeko Torsion Spring
-
24420231070 Centrifugal WeightCentrifugal Weight
-
25420231090 Deko WasherDeko Washer
-
26420641820 Hex. Collar Screw M8 X 32Hex. Collar Screw M8 X 32
-
27420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
28420430370 O-RingO-Ring
-
29420236510 Chain Tensioner HousingChain Tensioner Housing
-
30420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
31420238120 SpringSpring
-
32420250890 O-RingO-Ring
-
33420641150 Plug ScrewPlug Screw
-
34420229712 Pin #12, Small, M6 X 90Pin #12, Small, M6 X 90
-
35420944382 ShimShim
-
36420254905 Rocker Arm InletRocker Arm Inlet
-
37420254915 Rocker Arm ExhaustRocker Arm Exhaust
-
38420241335 Adjustment Screw M6 X 0.75Adjustment Screw M6 X 0.75
-
39420242910 Hex. Nut M6Hex. Nut M6
-
40278001016 Temperature SensorTemperature Sensor
-
41a420222494 Thermostat 65° With Gasket Ass'y. Includes 41a to 42Thermostat 65° With Gasket Ass'y. Includes 41a to 42
-
42420650300 Thermostat GasketThermostat Gasket
-
43420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
44420222691 Thermostat CoverThermostat Cover
-
45420650255 Gasket RingGasket Ring
-
46420441621 Screw M5 X 16Screw M5 X 16
-
47420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
48420630260 GasketGasket
-
49420610395 Valve CoverValve Cover
-
50707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
51420254374 Valve GuideValve Guide
