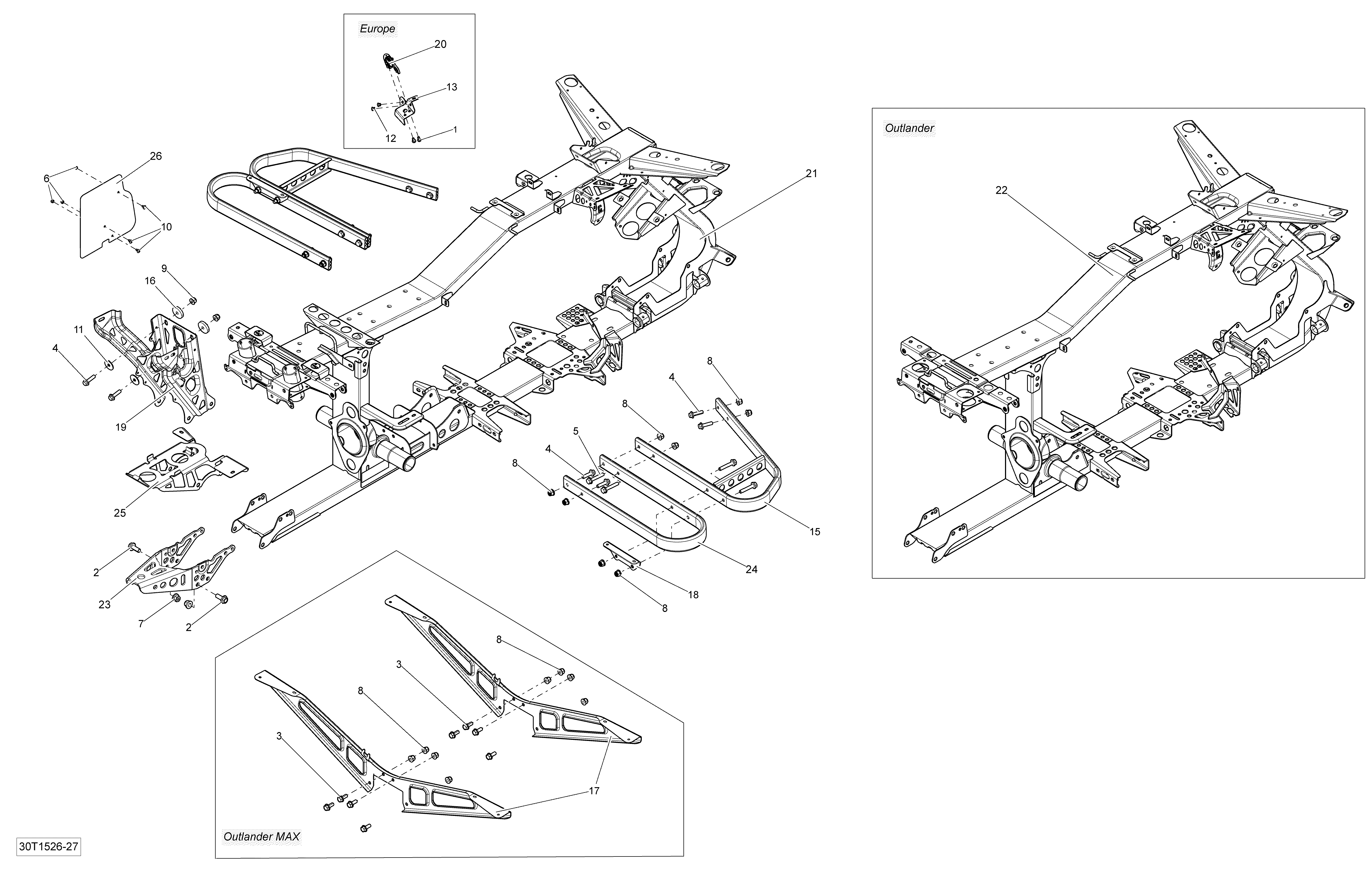

09- Frame _30T1527 для BRP Outlander Max 400 EFI, STD, XT (International only) - 2015
-
№АртикулНазвание
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207682044 Hex. Flanged Screw M8 X 20. Outlander MAXHex. Flanged Screw M8 X 20. Outlander MAX
-
4207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
5207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
6232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
10250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
11250200073 Flat WasherFlat Washer
-
15705202081 Footboard Ass'yFootboard Ass'y
-
16705202084 SpacerSpacer
-
17705202393 Diagonal Brace. Outlander MAXDiagonal Brace. Outlander MAX
-
18705202402 Support Plate, BlackSupport Plate, Black
-
19705203842 Rear Support, BlackRear Support, Black
-
21705203839 Frame, Black. Outlander MAXFrame, Black. Outlander MAX
-
23715000286 Trailer Hook KitTrailer Hook Kit
-
24705201993 Rear FootrestRear Footrest
-
25705201942 Battery Support BaseBattery Support Base
-
26705202394 Heat ShieldHeat Shield
