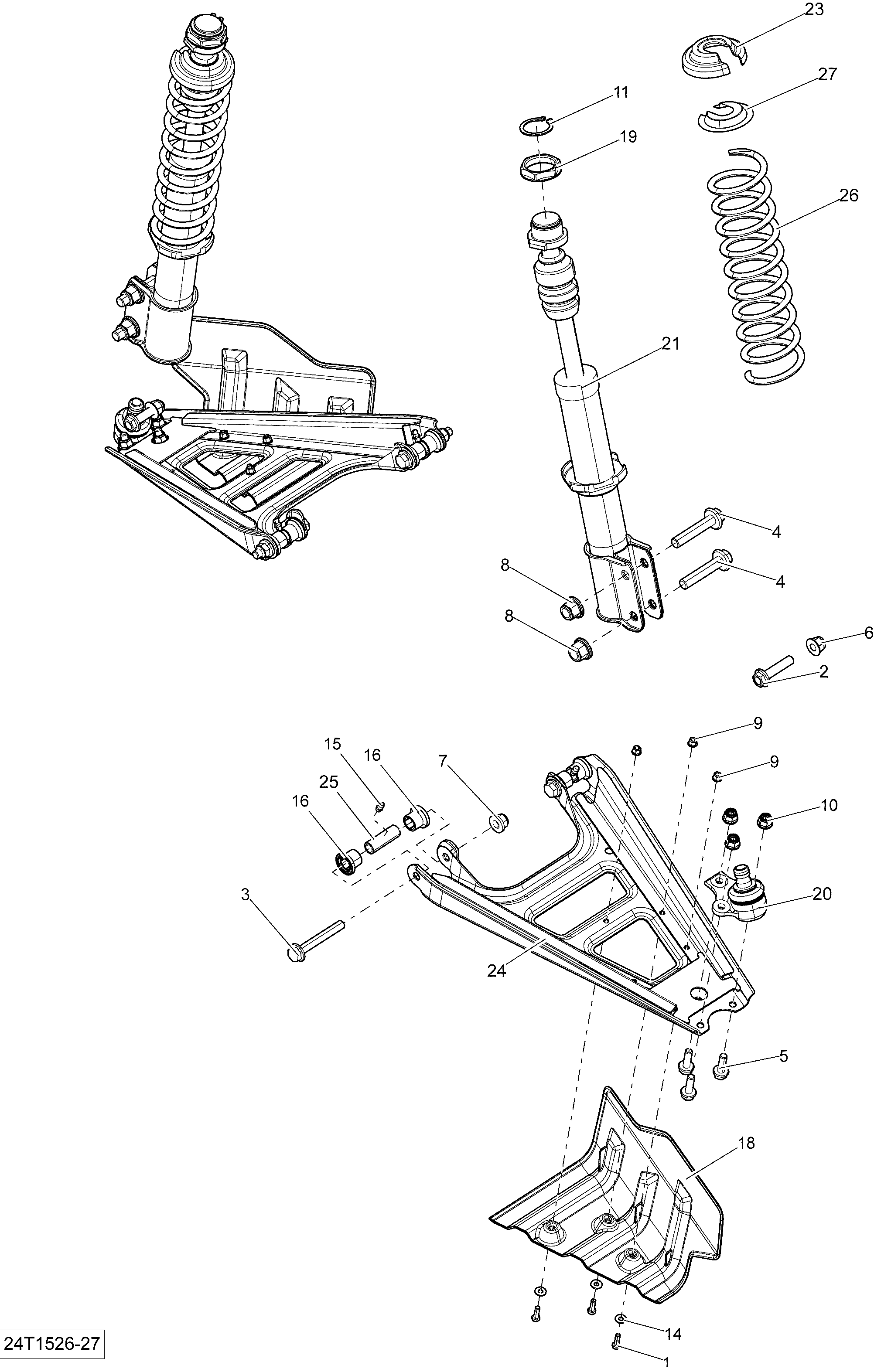

07- Front Suspension _24T1527 для BRP Outlander Max 400 EFI, STD, XT (International only) - 2015

№

Артикул

Название
1

207151644 Hex. Screw M5 X 16

Hex. Screw M5 X 16

90 ₽
2

207604544 Hex. Flanged Screw M10 X 45

Hex. Flanged Screw M10 X 45

720 ₽
3

207607046 Hex. Flanged Screw M10 X 70

Hex. Flanged Screw M10 X 70

1 570 ₽
4

207626046 Hex. Flanged Screw M12 X 60

Hex. Flanged Screw M12 X 60

670 ₽
5

207682544 Hex. Flanged Screw M8 X 25

Hex. Flanged Screw M8 X 25

380 ₽
6

233201414 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

810 ₽
7

233201436 Flanged Elastic Nut M10

Flanged Elastic Nut M10

740 ₽
8

233221414 Hex. Flanged Elastic Nut M12

Hex. Flanged Elastic Nut M12

1 730 ₽
9

233251414 Hex. Flanged Elastic Nut M5

Hex. Flanged Elastic Nut M5

100 ₽
10

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
11

293370009 Circlip 32 mm

Circlip 32 mm

490 ₽
14

250200081 Flat Washer

Flat Washer

120 ₽
15

408200700 Grease Fitting

Grease Fitting

1 330 ₽
16

706200181 Cushion

Cushion

1 570 ₽
18

706200213 LH Protector

LH Protector

4 240 ₽
18

706200214 RH Protector

RH Protector

4 240 ₽
19

706200443 Nut

Nut

1 220 ₽
20

706200444 Joint Attachment

Joint Attachment

28 140 ₽
21

706200658 Front Shock

Front Shock

54 600 ₽
23

706200882 Stopper Spring

Stopper Spring

4 240 ₽
24

706201050 Suspension Arm, Black

Suspension Arm, Black

44 590 ₽
25

706201587 Inner Bushing

Inner Bushing

2 810 ₽
26

706200818 Front Spring. Outlander MAX

Front Spring. Outlander MAX

4 800 ₽
27

706200793 Cap. Outlander MAX

Cap. Outlander MAX

1 590 ₽
