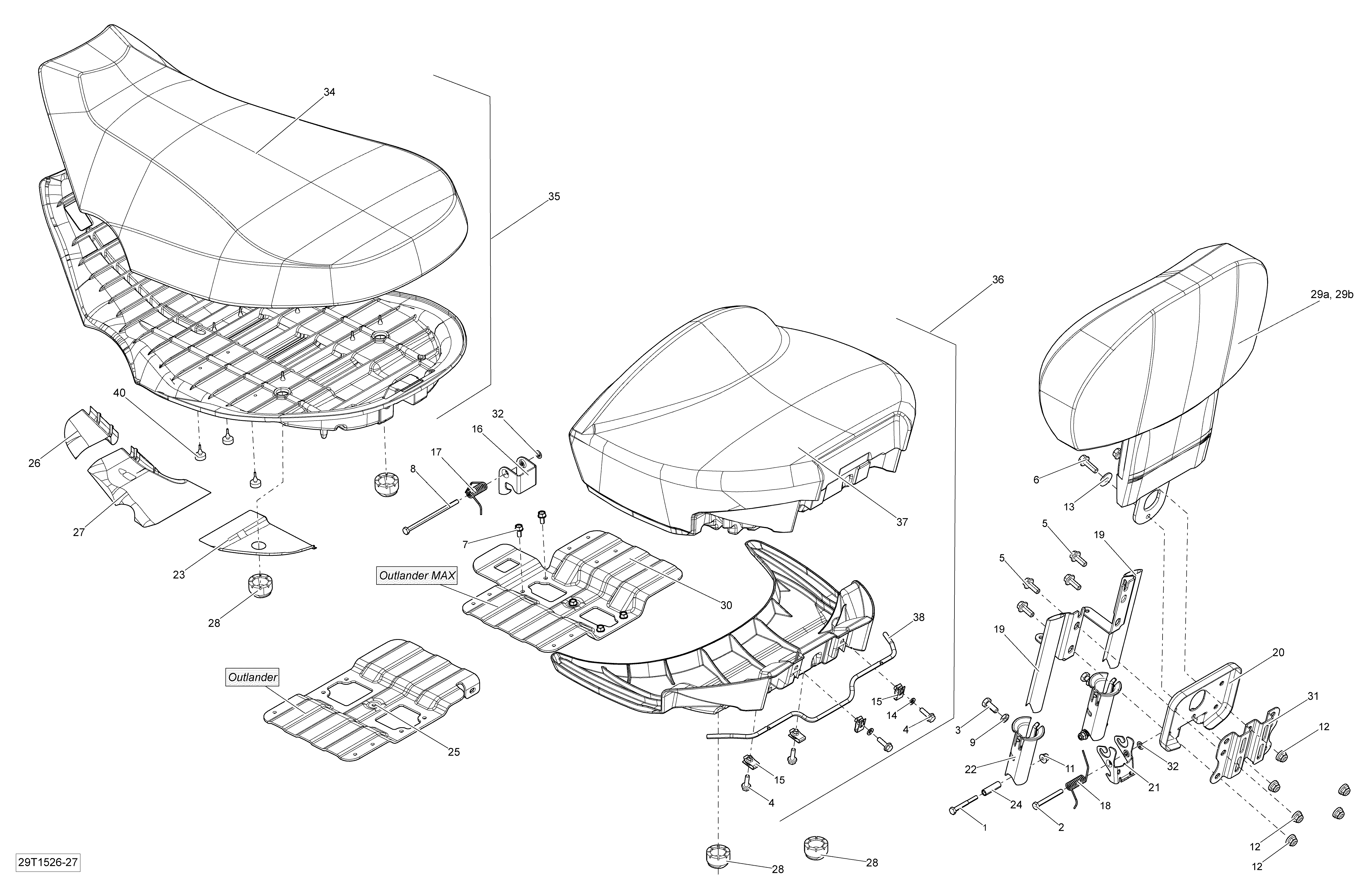

09- Seat _29T1527 для BRP Outlander Max 400 EFI, STD, XT (International only) - 2015
-
№АртикулНазвание
-
1207065034 Hex. Cap Screw M6 X 50. Outlander MAXHex. Cap Screw M6 X 50. Outlander MAX
-
2207065544 Hex. Screw M6 X 55. Outlander MAXHex. Screw M6 X 55. Outlander MAX
-
3207182034 Hex. Cap Screw M8 X 20. Outlander MAXHex. Cap Screw M8 X 20. Outlander MAX
-
4207662044 Hex. Flanged Screw M6 X 20. Outlander MAXHex. Flanged Screw M6 X 20. Outlander MAX
-
5207682044 Hex. Flanged Screw M8 X 20. Outlander MAXHex. Flanged Screw M8 X 20. Outlander MAX
-
6207682544 Hex. Flanged Screw M8 X 25. Outlander MAXHex. Flanged Screw M8 X 25. Outlander MAX
-
7210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
8230061044 Hex. Screw M6 X 110Hex. Screw M6 X 110
-
9232180600 Hex. Jam Nut M8. Outlander MAXHex. Jam Nut M8. Outlander MAX
-
11233261434 Flanged Elastic Nut M6. Outlander MAXFlanged Elastic Nut M6. Outlander MAX
-
12233281414 Hex. Flanged Elastic Nut M8. Outlander MAXHex. Flanged Elastic Nut M8. Outlander MAX
-
13234082410 Flat Washer 8 mm. Outlander MAXFlat Washer 8 mm. Outlander MAX
-
14234161471 Lock Washer M6, Black. Outlander MAXLock Washer M6, Black. Outlander MAX
-
15250000048 Panel Nut M6 X 1.0. Outlander MAXPanel Nut M6 X 1.0. Outlander MAX
-
16708000144 Latch, BlackLatch, Black
-
17708000369 SpringSpring
-
18708000922 Spring. Outlander MAXSpring. Outlander MAX
-
19708000439 LH Backrest Stem. Outlander MAXLH Backrest Stem. Outlander MAX
-
19708000443 RH Backrest Stem. Outlander MAXRH Backrest Stem. Outlander MAX
-
20708000446 Front Plate. Outlander MAXFront Plate. Outlander MAX
-
21708000448 Latch. Outlander MAXLatch. Outlander MAX
-
22708000461 Rod Guide. Outlander MAXRod Guide. Outlander MAX
-
23708000514 Reflecting SheetReflecting Sheet
-
24708000530 Inner Bushing. Outlander MAXInner Bushing. Outlander MAX
-
26708000649 Reflecting SheetReflecting Sheet
-
27708000650 Reflecting SheetReflecting Sheet
-
28708000760 Bumper RubberBumper Rubber
-
29a708000809 Backrest Ass'y. Outlander MAXBackrest Ass'y. Outlander MAX
-
29b708000545 Backrest Cover. Outlander MAXBackrest Cover. Outlander MAX
-
30708000817 Reinforcement Seat. Outlander MAXReinforcement Seat. Outlander MAX
-
31708000855 Rear Plate. Outlander MAXRear Plate. Outlander MAX
-
32732610072 Push NutPush Nut
-
34708000556 Seat CoverSeat Cover
-
35715500322 Seat Ass'ySeat Ass'y
-
36708000805 Rear Seat Ass'y. Outlander MAXRear Seat Ass'y. Outlander MAX
-
37708000541 Seat Cover. Outlander MAXSeat Cover. Outlander MAX
-
38708000822 Latch Handle. Outlander MAXLatch Handle. Outlander MAX
-
40708000771 Rubber StopperRubber Stopper
