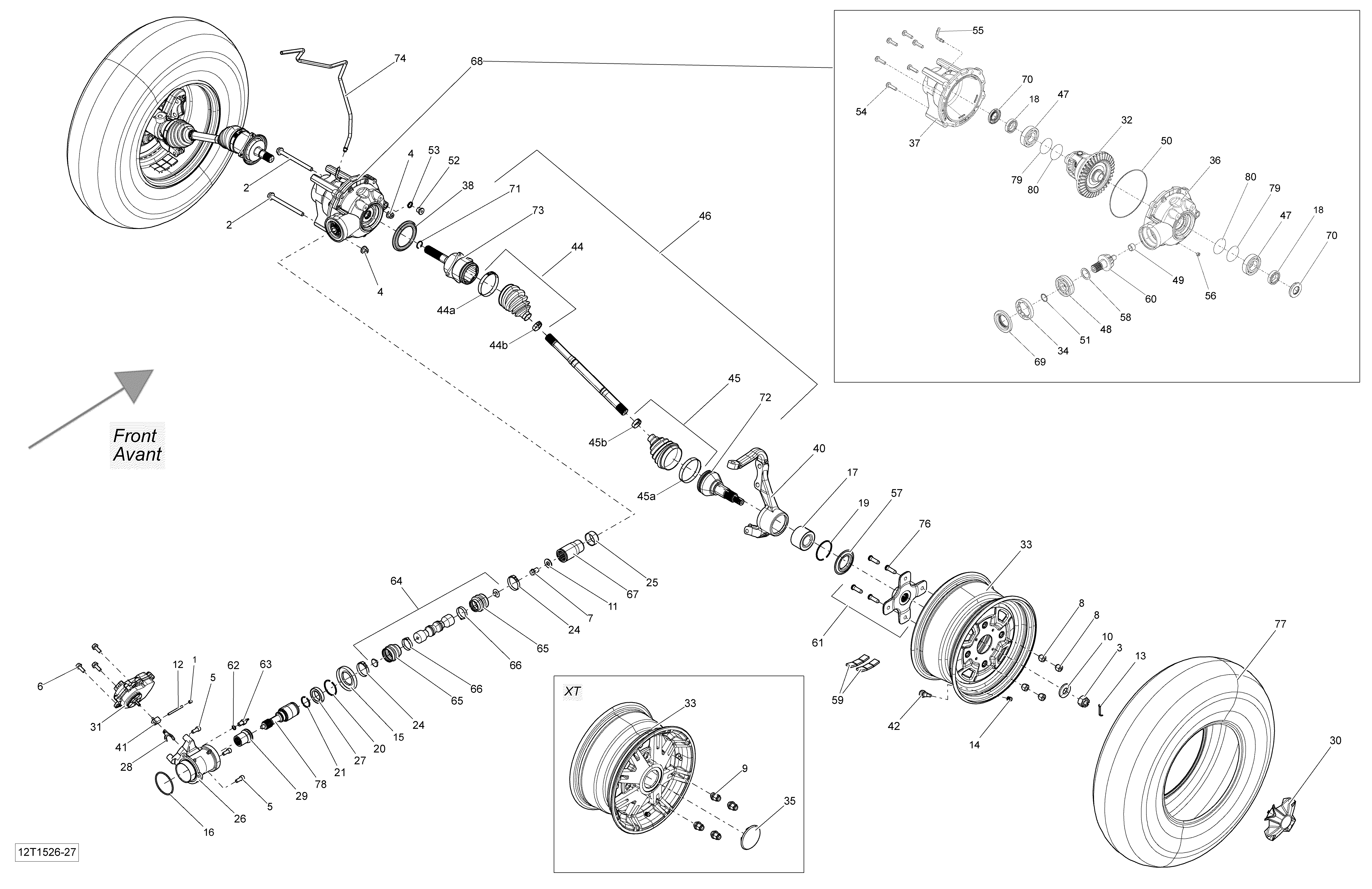

07- Drive System, Front _12T1527 для BRP Outlander Max 400 EFI, STD, XT (International only) - 2015
-
№АртикулНазвание
-
1206580890 Pressure Screw M8 X 8Pressure Screw M8 X 8
-
2230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
3250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
6250000137 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
7250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
8250100042 Steel Wheel NutSteel Wheel Nut
-
9250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
10250200049 Spring WasherSpring Washer
-
11250200102 Flat Washer M12Flat Washer M12
-
12250400025 Dowell PinDowell Pin
-
13250400036 Cotter PinCotter Pin
-
14293000110 Valve CapValve Cap
-
15293250138 Oil SealOil Seal
-
16293300091 O-RingO-Ring
-
17293350040 Cone BearingCone Bearing
-
18293350044 Ball BearingBall Bearing
-
19293370019 CirclipCirclip
-
20293370029 CirclipCirclip
-
21293370030 CirclipCirclip
-
24293650138 Oetiker Gear ClampOetiker Gear Clamp
-
25705400036 Wear RingWear Ring
-
26705400169 HousingHousing
-
27705400249 Ball BearingBall Bearing
-
28705400387 Shifter PlateShifter Plate
-
29705400389 Coupling SleeveCoupling Sleeve
-
30705400563 Wheel CapWheel Cap
-
31705400581 Actuator Ass'yActuator Ass'y
-
32705400645 DifferentialDifferential
-
33705400648 Front Rim. XT InternationalFront Rim. XT International
-
33705401199 Black Front Rim. STD InternationalBlack Front Rim. STD International
-
34705400661 NutNut
-
35705400680 Wheel Cap. XTWheel Cap. XT
-
36705400761 Front CoverFront Cover
-
37705400762 Front CoverFront Cover
-
38705400780 Wear SleeveWear Sleeve
-
40705400816 LH KnuckleLH Knuckle
-
40705400818 RH KnuckleRH Knuckle
-
41705400956 SliderSlider
-
42705400193 Rim Valve With CapRim Valve With Cap
-
44705401346 Boot Kit, Differential Side. Includes 44 to 44bBoot Kit, Differential Side. Includes 44 to 44b
-
44a715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
44b715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
45705401345 Boot Kit, Wheel Side. Includes 45 to 45bBoot Kit, Wheel Side. Includes 45 to 45b
-
45a715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
45b715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
46705401109 LH Homocinetic JointLH Homocinetic Joint
-
46705401110 RH Homocinetic JointRH Homocinetic Joint
-
47705500259 Ball BearingBall Bearing
-
48705500260 Ball BearingBall Bearing
-
49705500261 Needle BearingNeedle Bearing
-
50705500265 SealSeal
-
51705500267 O-RingO-Ring
-
52705500504 Fill Level PlugFill Level Plug
-
53705500506 Copper WasherCopper Washer
-
54705500892 ScrewScrew
-
55705500893 Vent ValveVent Valve
-
56705500894 Drain PlugDrain Plug
-
57705501121 Wear SleeveWear Sleeve
-
58703500049 Pinion Shim KitPinion Shim Kit
-
58705501162 Pinion Gear ShimPinion Gear Shim
-
59705501385 1/2 OZ Weight1/2 OZ Weight
-
60705501588 10 Teeth Pinion10 Teeth Pinion
-
61705501713 LH Wheel HubLH Wheel Hub
-
62705600310 Copper WasherCopper Washer
-
63710000324 SwitchSwitch
-
64705400912 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
65715900118 Rubber BootRubber Boot
-
66509000045 Oetiker Gear ClampOetiker Gear Clamp
-
67703500678 Front Bushing Shaft KitFront Bushing Shaft Kit
-
68705401484 Front Differential Ass'yFront Differential Ass'y
-
69705401481 Oil SealOil Seal
-
70705401486 Oil SealOil Seal
-
71705401349 Circlip JointCirclip Joint
-
72705401344 CV JointCV Joint
-
73705401351 Right Plunging JointRight Plunging Joint
-
73705401352 Left Plunging JointLeft Plunging Joint
-
74415080200 Hose, PolyurethaneHose, Polyurethane
-
76250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
77705400606 Front Tire. XT InternationalFront Tire. XT International
-
77705400009 Front Tire. STD InternationalFront Tire. STD International
-
78705400917 Union ShaftUnion Shaft
-
79703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
80703500050 Differential Shim Spool KitDifferential Shim Spool Kit
