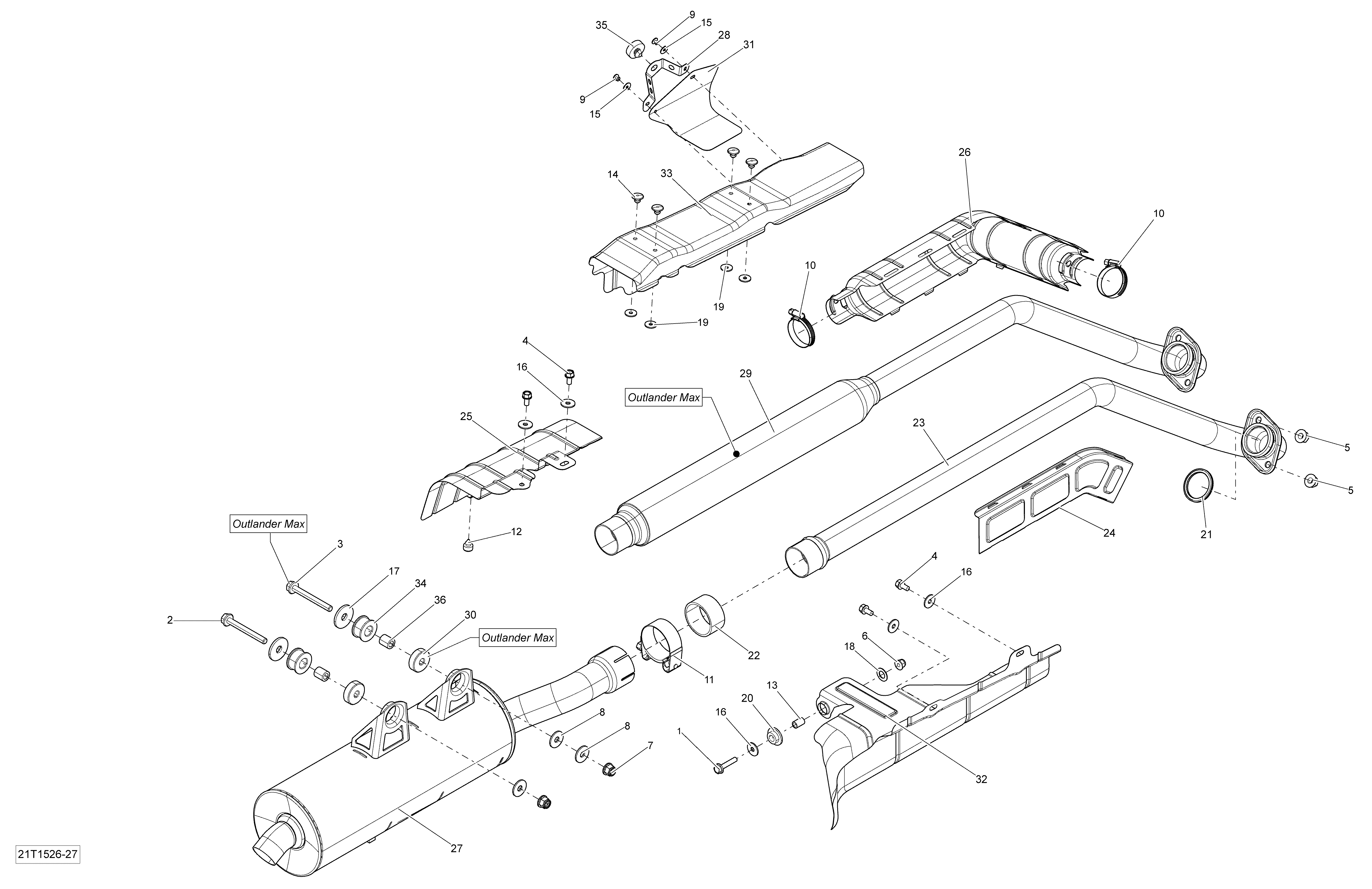

01- Exhaust System _21T1527 для BRP Outlander Max 400 EFI, STD, XT (International only) - 2015
-
№АртикулНазвание
-
1207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
2207687044 Hex. Flanged Screw M8 X 70. OutlanderHex. Flanged Screw M8 X 70. Outlander
-
3207688044 Hex. Flanged Screw M8 X 80. Outlander MAXHex. Flanged Screw M8 X 80. Outlander MAX
-
4210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
5233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8234082410 Flat Washer 8 mmFlat Washer 8 mm
-
9293150122 Pop Rivet 1/8''Pop Rivet 1/8''
-
10293650098 Norma Gear ClampNorma Gear Clamp
-
11293650177 Norma Gear ClampNorma Gear Clamp
-
12293830005 Rubber BumperRubber Bumper
-
13293900078 SleeveSleeve
-
14390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
15391301000 WasherWasher
-
16250200082 Flat WasherFlat Washer
-
17503032900 WasherWasher
-
18503175800 WasherWasher
-
19517124300 WasherWasher
-
20705003932 GrommetGrommet
-
21707600317 GasketGasket
-
22707600430 Pipe GasketPipe Gasket
-
24707600457 Heat Shield CoverHeat Shield Cover
-
25707600459 Heat ShieldHeat Shield
-
26707600462 Heat Base ShieldHeat Base Shield
-
27707600574 Muffler. InternationalMuffler. International
-
28707600581 Panel SupportPanel Support
-
29707600599 Tuned PipeTuned Pipe
-
30707600603 SpacerSpacer
-
31707600618 Heat ShieldHeat Shield
-
32707600621 ProtectorProtector
-
33707600700 Heat ShieldHeat Shield
-
34707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
35708000506 Rubber StopperRubber Stopper
-
36293900106 BushingBushing
