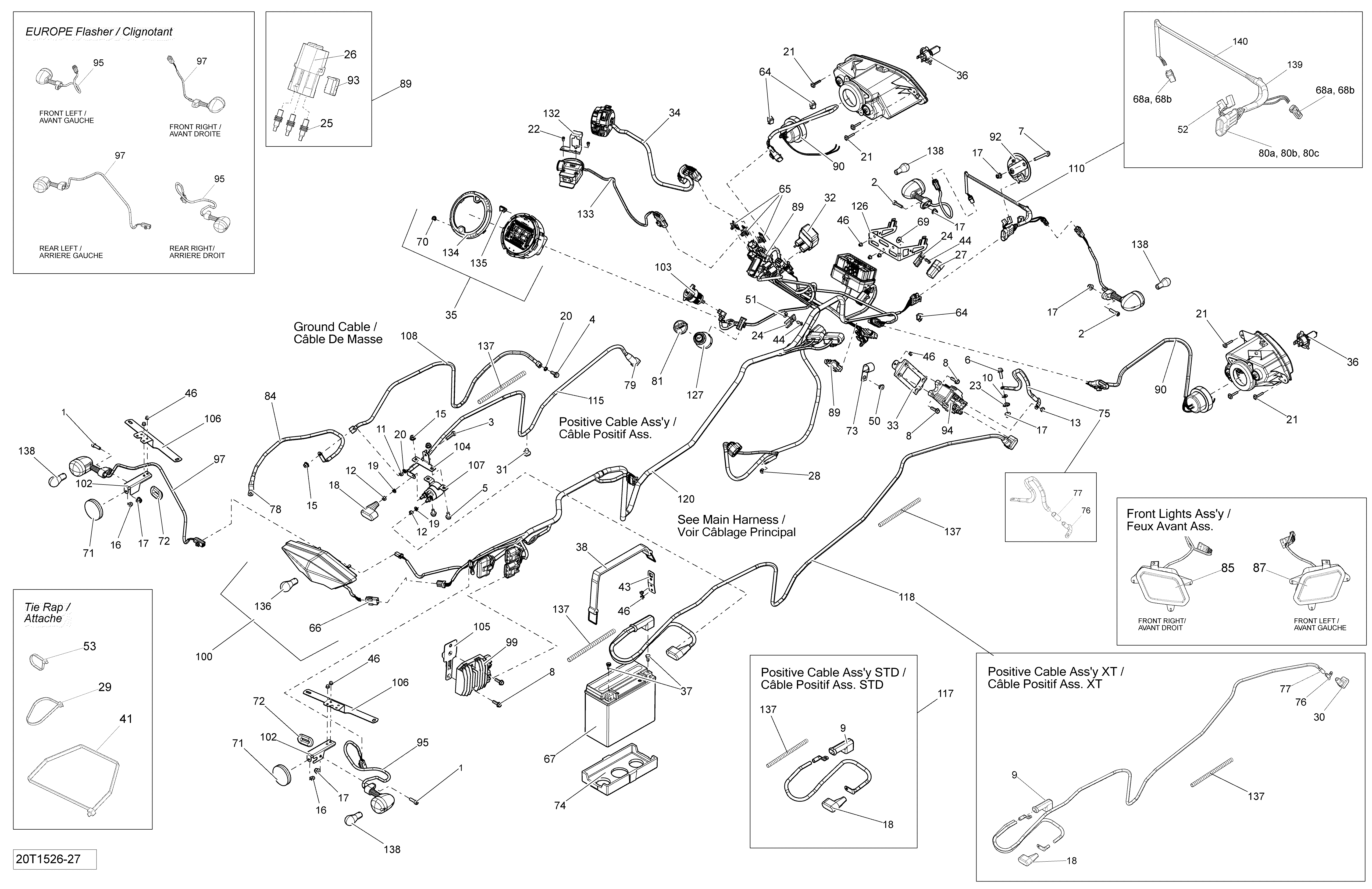

10- Electrical System _20T1527 для BRP Outlander Max 400 EFI, STD, XT (International only) - 2015
-
№АртикулНазвание
-
3207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
6207662044 Hex. Flanged Screw M6 X 20. XTHex. Flanged Screw M6 X 20. XT
-
8210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
9710001829 Protector Cap. STD, XTProtector Cap. STD, XT
-
10224061121 Flat Washer. XTFlat Washer. XT
-
11232061414 Hex. Nut M6Hex. Nut M6
-
12232061600 Hex. Nut M6Hex. Nut M6
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18710001817 Protector CapProtector Cap
-
19234161601 Lock Washer Helical M6Lock Washer Helical M6
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
21250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
22250000153 Hex. Cap Screw 6-32 X 1/4''. XTHex. Cap Screw 6-32 X 1/4''. XT
-
23250200041 Lock Washer Serrated M6. XTLock Washer Serrated M6. XT
-
24270000141 ClipClip
-
25278000216 Wire Seal. STD, XTWire Seal. STD, XT
-
26278000281 Female Terminal Housing, 3 Circuits. STD, XTFemale Terminal Housing, 3 Circuits. STD, XT
-
27278002704 Diagnostic ConnectorDiagnostic Connector
-
28293650100 Oetiker ClampOetiker Clamp
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30710001828 Protector Cap. XTProtector Cap. XT
-
31293730040 Mount DartMount Dart
-
33710001813 Winch Relay Support. XTWinch Relay Support. XT
-
34710003063 Multi-Fonction Handle. InternationalMulti-Fonction Handle. International
-
35710003100 Speedometer Ass'ySpeedometer Ass'y
-
36710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
37295500849 Battery Fastener KitBattery Fastener Kit
-
38293850097 Retainer StrapRetainer Strap
-
43293850030 Strap ClipStrap Clip
-
44390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
46390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
50390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
51250200081 Flat WasherFlat Washer
-
53414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
64414227300 ClipClip
-
65515175283 Housing SupportHousing Support
-
66515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
67410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
69517124300 WasherWasher
-
70704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
73705600311 ClampClamp
-
74710000279 Insulator PadInsulator Pad
-
75710000455 Negative Cable Ass'y. XTNegative Cable Ass'y. XT
-
76710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
77710000483 Shrink TubingShrink Tubing
-
78710000518 Open BarrelOpen Barrel
-
79710000526 Protector CapProtector Cap
-
81710000817 Black-Electronic Key. InternationalBlack-Electronic Key. International
-
84710000830 Ground Cable Ass'y, Battery/FrameGround Cable Ass'y, Battery/Frame
-
85710001496 RH Headlamp Ass'y. InternationalRH Headlamp Ass'y. International
-
87710001497 LH Headlamp Ass'y. InternationalLH Headlamp Ass'y. International
-
89710000917 Connector Ass'y. XTConnector Ass'y. XT
-
89710000917 Connector Ass'y. STDConnector Ass'y. STD
-
90710000828 Light Harness. InternationalLight Harness. International
-
93710000992 Clip. STDClip. STD
-
93710000992 Clip. XTClip. XT
-
94710001000 Winch Solenoid. XTWinch Solenoid. XT
-
99710001103 Voltage RegulatorVoltage Regulator
-
100710001203 Tail Light Housing Ass'y. InternationalTail Light Housing Ass'y. International
-
103710001248 Outlet DCOutlet DC
-
104710001260 Solenoid SupportSolenoid Support
-
105710001262 Rectifier SupportRectifier Support
-
107710001364 Starter RelayStarter Relay
-
108710001444 Ground CableGround Cable
-
115710001821 Positive Cable Ass'yPositive Cable Ass'y
-
117710001822 Positive Cable Ass'y. STDPositive Cable Ass'y. STD
-
118710001824 Positive Cable Ass'y. XTPositive Cable Ass'y. XT
-
120710002114 Main Harness Ass'y. InternationalMain Harness Ass'y. International
-
126710002176 Fuse SupportFuse Support
-
127710002324 Ignition SwitchIgnition Switch
-
132710002631 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
133710002724 Winch Interrupter. XTWinch Interrupter. XT
-
134710001416 Trim RingTrim Ring
-
135710001473 ButtonButton
-
136520000758 BulbBulb
-
137710000497 Protector Tube, 9 mm. STDProtector Tube, 9 mm. STD
-
137710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
137710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
137710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
