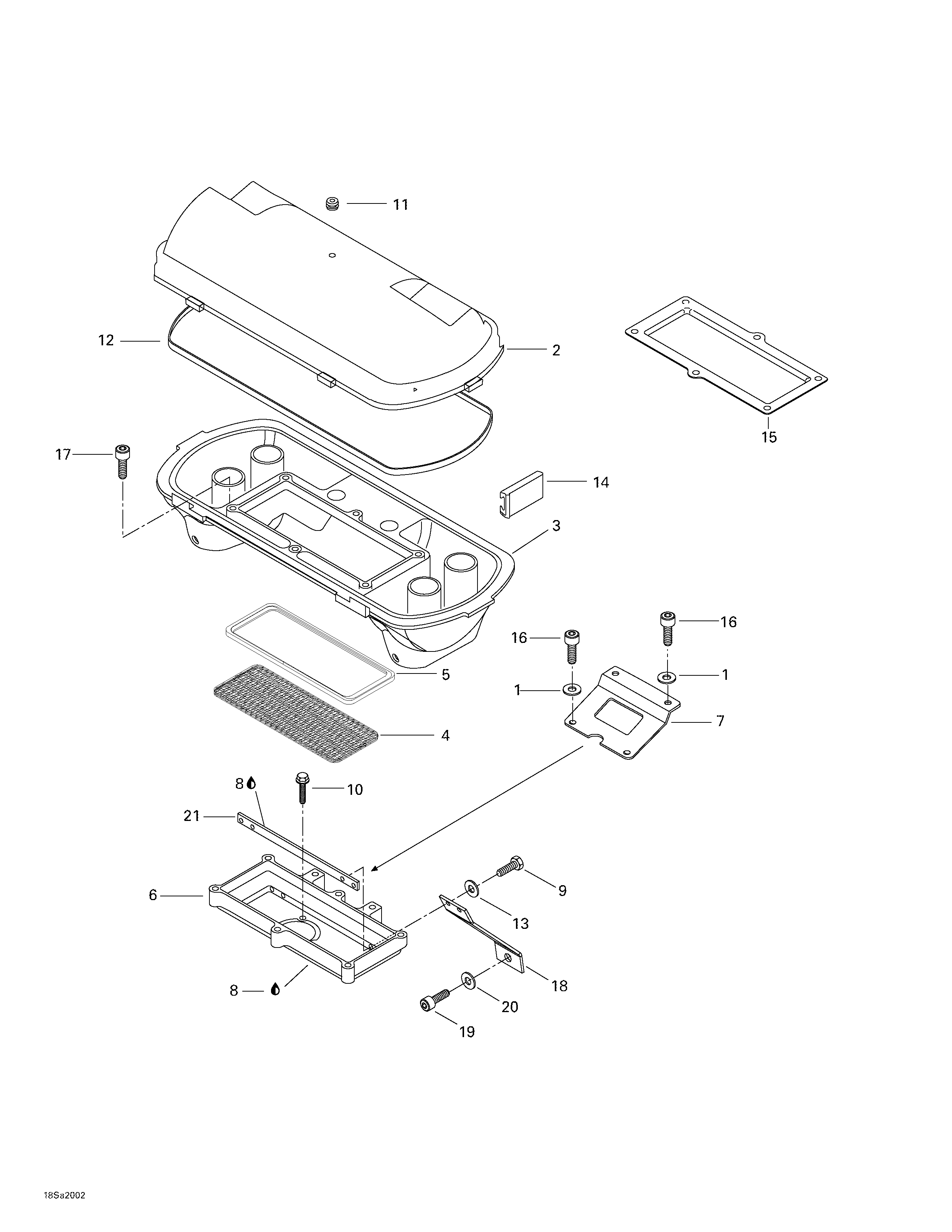

02- Air Intake System для BRP GTI, 5647/5657 - 2000
-
№АртикулНазвание
-
1234061600 Flat Washer 6 mmFlat Washer 6 mm
-
2273000115 Air Silencer CoverAir Silencer Cover
-
3273000103 Air Silencer BaseAir Silencer Base
-
4273000117 Flame ArresterFlame Arrester
-
5273000020 IsolatorIsolator
-
6273000131 Housing ArresterHousing Arrester
-
7270000261 SupportSupport
-
8293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
9207351660 Hex. Screw M5 x 16 (Scotch Grip)Hex. Screw M5 x 16 (Scotch Grip)
-
10207562560 Hex. Flanged Screw (Scotch Grip)Hex. Flanged Screw (Scotch Grip)
-
11293830005 Rubber PlugRubber Plug
-
12293250023 GasketGasket
-
13234051600 Flat Washer 5 mmFlat Washer 5 mm
-
14273000006 Retainer ClipRetainer Clip
-
15273000059 HolderHolder
-
16205561260 Socket Head Screw M6 x 12 (Scotch Grip)Socket Head Screw M6 x 12 (Scotch Grip)
-
17205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
18270000391 Flame Arrester Support PTOFlame Arrester Support PTO
-
270000392 Flame Arrester Support MAGFlame Arrester Support MAG
-
19205582560 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
20293050001 Washer 8 mmWasher 8 mm
-
21270000393 Threaded PlateThreaded Plate
