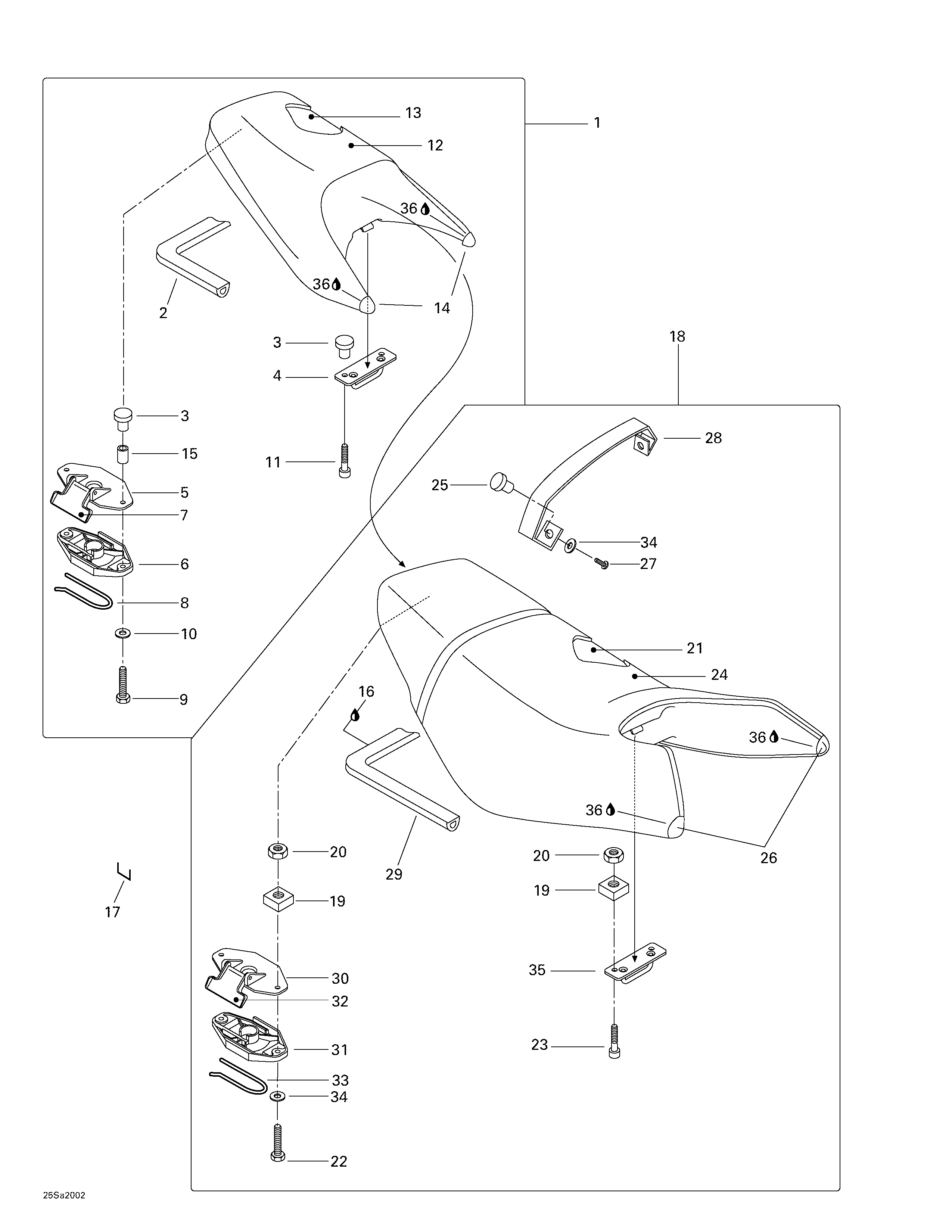

09- Seat And Engine Cover для BRP GTI, 5647/5657 - 2000
-
№АртикулНазвание
-
1269000638 Rear Seat Ass'y. Includes 1 - 15.Rear Seat Ass'y. Includes 1 - 15.
-
2293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
3293100003 Nut M6Nut M6
-
4291001357 Base HookBase Hook
-
5269700020 Latch CoverLatch Cover
-
6269000015 Latch BaseLatch Base
-
7269000016 Latch LeverLatch Lever
-
8269700017 SpringSpring
-
9207363560 Hex. Screw M6 x 35 (Scotch Grip)Hex. Screw M6 x 35 (Scotch Grip)
-
10234061600 Flat Washer 6 mmFlat Washer 6 mm
-
11205561660 Socket Head Screw M6 x 16 (Scotch Grip)Socket Head Screw M6 x 16 (Scotch Grip)
-
12269000639 Rear Seat CoverRear Seat Cover
-
13269000353 Rear Seat FoamRear Seat Foam
-
14269000640 R.H. Rear Seat CornerR.H. Rear Seat Corner
-
269000641 LH Rear Seat CornerLH Rear Seat Corner
-
15291000532 SpacerSpacer
-
16293800048 Loctite 401, 1 ozLoctite 401, 1 oz
-
17293730005 Staple (Monelle)Staple (Monelle)
-
18269000642 Front Seat Ass'y. Includes 18 - 35.Front Seat Ass'y. Includes 18 - 35.
-
19269500252 Nut Housing Ass'y. Includes 19 - 20.Nut Housing Ass'y. Includes 19 - 20.
-
20232061600 Hex. Nut M6Hex. Nut M6
-
21269000358 Front Seat FoamFront Seat Foam
-
22207363060 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
23205562060 Socket Head Screw M6 x 16 (Scotch Grip)Socket Head Screw M6 x 16 (Scotch Grip)
-
24269000643 Front Seat CoverFront Seat Cover
-
25293100003 Nut M6Nut M6
-
26269000645 Seat CornerSeat Corner
-
27207361660 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
28269000644 Seat StrapSeat Strap
-
29293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
30269700020 Latch CoverLatch Cover
-
31269000015 Latch BaseLatch Base
-
32269000016 Latch LeverLatch Lever
-
33269700017 SpringSpring
-
34234061600 Flat Washer 6 mmFlat Washer 6 mm
-
35291001357 Base HookBase Hook
-
36413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
