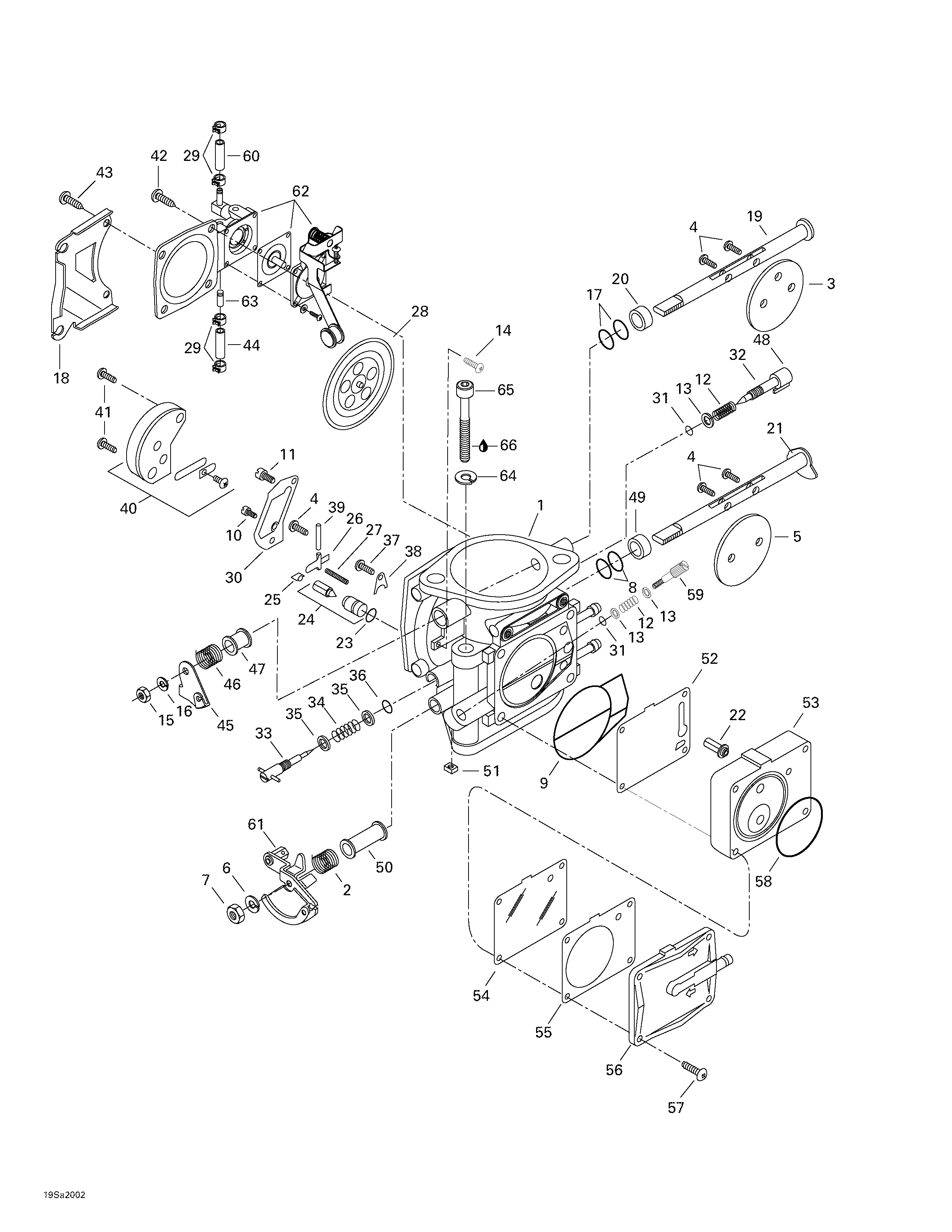

02- Carburetor(s) для BRP GTI, 5647/5657 - 2000
-
№АртикулНазвание
-
1270500420 Carburetor BN40I-38-48. Includes 1 - 63.Carburetor BN40I-38-48. Includes 1 - 63.
-
2270500191 SpringSpring
-
4270500156 ScrewScrew
-
6270500011 Spring WasherSpring Washer
-
7270500376 NutNut
-
8270500222 Sealing RingSealing Ring
-
9270500104 O-RingO-Ring
-
10270500427 Pilot Jet 75Pilot Jet 75
-
11270500392 Main Jet 167.5Main Jet 167.5
-
12270500091 SpringSpring
-
13270500136 WasherWasher
-
14270500228 ScrewScrew
-
15270500229 NutNut
-
16270500230 Spring WasherSpring Washer
-
17270500234 Sealing RingSealing Ring
-
18270500315 SupportSupport
-
20270500239 RingRing
-
22270500115 Fuel FilterFuel Filter
-
23270500127 O-RingO-Ring
-
24270500208 Needle Valve 2.0Needle Valve 2.0
-
25270500129 ClipClip
-
26270500128 Needle Valve LeverNeedle Valve Lever
-
27270500428 SpringSpring
-
28270500132 Diaphragm Ass'yDiaphragm Ass'y
-
29293650043 ClipClip
-
30270500131 GasketGasket
-
31270500144 O-RingO-Ring
-
32270500113 Adjuster ScrewAdjuster Screw
-
33270500020 Idle Adjusting ScrewIdle Adjusting Screw
-
34270500019 SpringSpring
-
35270500018 WasherWasher
-
36270500119 O-RingO-Ring
-
37270500155 Screw and Spring WasherScrew and Spring Washer
-
38270500125 PlatePlate
-
39270500038 PinPin
-
40270500124 Valve Ass'yValve Ass'y
-
41270500123 ScrewScrew
-
42270500322 ScrewScrew
-
43270500238 ScrewScrew
-
44270500308 HoseHose
-
45270500316 Choke LeverChoke Lever
-
46270500248 SpringSpring
-
47270500110 RingRing
-
48270500154 CapCap
-
49270500309 RingRing
-
50270500192 RingRing
-
51270500249 NutNut
-
52270500103 GasketGasket
-
53270500105 Body Pump Ass'yBody Pump Ass'y
-
54270500106 DiaphragmDiaphragm
-
55270500146 GasketGasket
-
56270500108 Pump CoverPump Cover
-
57270500143 ScrewScrew
-
58270500102 O-RingO-Ring
-
59270500288 Adjuster ScrewAdjuster Screw
-
60270500342 HoseHose
-
61270500317 Throttle Lever Ass'yThrottle Lever Ass'y
-
62270500424 Diaphragm CoverDiaphragm Cover
-
63270500348 Recharge JetRecharge Jet
-
64234081600 Lock Washer 8 mmLock Washer 8 mm
-
65205587560 Socket Head Screw M8 x 75 (Scotch Grip)Socket Head Screw M8 x 75 (Scotch Grip)
-
66293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
