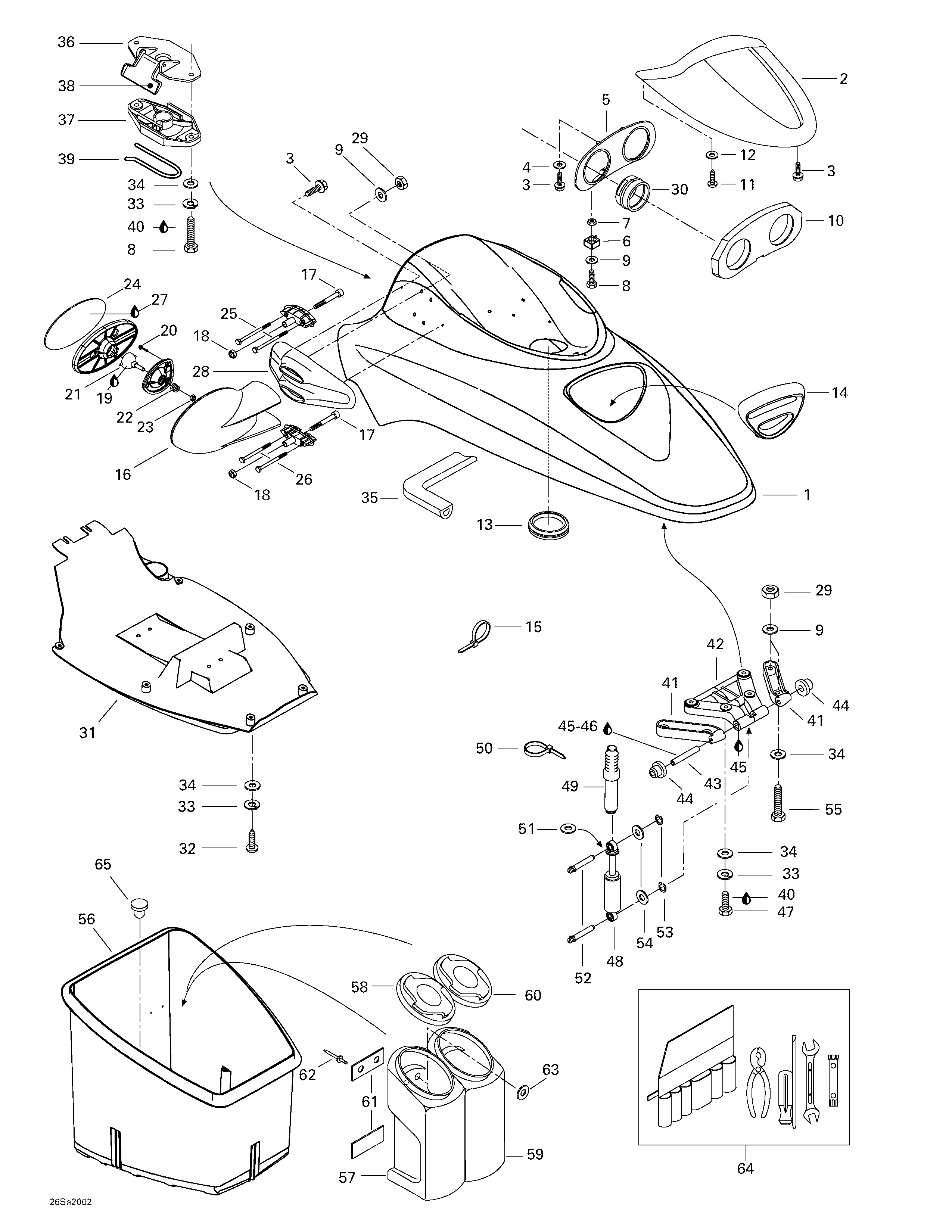

09- Front Storage Compartment для BRP GTI, 5647/5657 - 2000
-
№АртикулНазвание
-
1269500764 Storage Cover UpperStorage Cover Upper
-
2269500765 DeflectorDeflector
-
3241141660 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
-
4234041600 Flat Washer 4 mmFlat Washer 4 mm
-
5269500588 Dash Board. Includes 5 - 7.Dash Board. Includes 5 - 7.
-
6269500725 Housing Nut Ass'y. Includes 6 - 7.Housing Nut Ass'y. Includes 6 - 7.
-
7232561600 Nut M6Nut M6
-
8207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
9234062600 Flat Washer 6 mmFlat Washer 6 mm
-
10269500577 Gauge SupportGauge Support
-
11211000098 Phillips ScrewPhillips Screw
-
12211200007 Flat WasherFlat Washer
-
13570276900 Rubber RingRubber Ring
-
14269500694 Grill IntakeGrill Intake
-
15293750002 Tie Rap 130 mmTie Rap 130 mm
-
16269500767 R.H. Mirror Ass'y. Includes 16 - 27.R.H. Mirror Ass'y. Includes 16 - 27.
-
269500778 LH Mirror Ass'yLH Mirror Ass'y
-
17205087560 Socket Head Screw M8 x 75Socket Head Screw M8 x 75
-
18232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
19293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
20241141660 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
-
21269500079 Ball JointBall Joint
-
22269500453 Spring-MirrorSpring-Mirror
-
23232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
24269500454 MirrorMirror
-
25207068060 Hex. Screw M6 x 80Hex. Screw M6 x 80
-
26207067060 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
27296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
28269500780 R.H. Support MirrorR.H. Support Mirror
-
269500782 LH Support MirrorLH Support Mirror
-
29232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
30293720047 Gauge SupportGauge Support
-
31269500660 Storage Cover LowerStorage Cover Lower
-
32208661660 Phillips Screw M6 x 16Phillips Screw M6 x 16
-
33234161601 Lock Washer 6 mmLock Washer 6 mm
-
34234061600 Flat Washer 6 mmFlat Washer 6 mm
-
35293250047 Seal NeopreneSeal Neoprene
-
36269700020 Latch CoverLatch Cover
-
37269000015 Latch BaseLatch Base
-
38269000016 Latch LeverLatch Lever
-
39269700017 SpringSpring
-
40293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
41269700022111 R.H. HingeR.H. Hinge
-
269700023111 LH HingeLH Hinge
-
42269700038 Hinge Cover (White)Hinge Cover (White)
-
43269700024 AxleAxle
-
44293350016 CushionCushion
-
45293800054 Loctite 648, 50 mlLoctite 648, 50 ml
-
46293800041 Loctite - PrimerLoctite - Primer
-
47207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
48269500261 Gas Shock Ass'y. Includes 48 - 51.Gas Shock Ass'y. Includes 48 - 51.
-
49291000919 BootBoot
-
50293750001 Tie Rap 94 mmTie Rap 94 mm
-
51211200034 Washer AluminumWasher Aluminum
-
52211400006 Short PinShort Pin
-
53293370008 CirclipCirclip
-
54234081600 Flat Washer 8 mmFlat Washer 8 mm
-
55207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
56269500269 Storage TrayStorage Tray
-
57269500606 Extinguisher HousingExtinguisher Housing
-
58269500603 Extinguisher Housing CoverExtinguisher Housing Cover
-
59269500605 Housing StorageHousing Storage
-
60269500604 Storage Housing CoverStorage Housing Cover
-
61293250037 GasketGasket
-
62293150033 Pop Rivet 1/8Pop Rivet 1/8
-
63234032600 Flat Washer 3 mmFlat Washer 3 mm
-
64295500783 Tool KitTool Kit
-
65293830005 Rubber PlugRubber Plug
