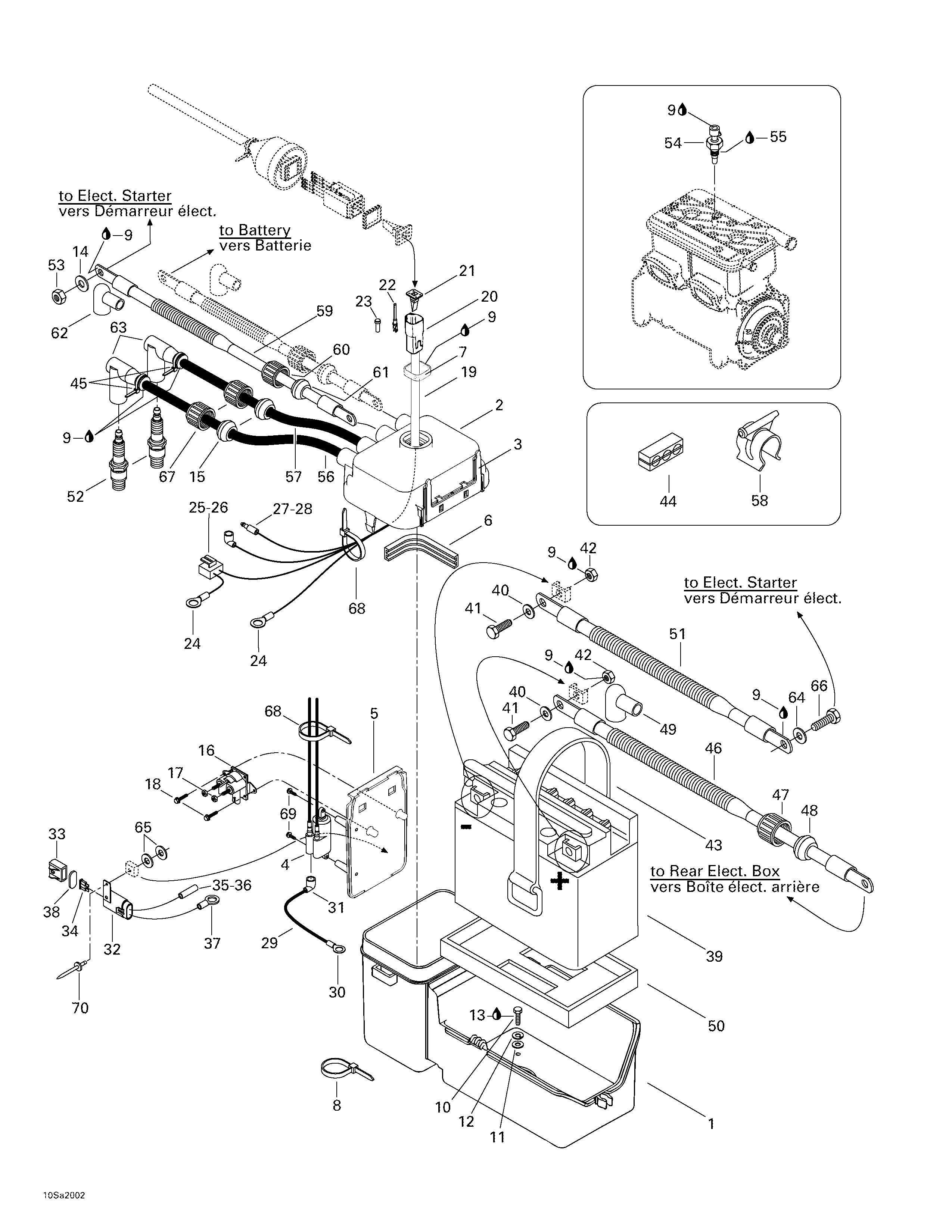

10- Rear Electrical Box для BRP GTI, 5647/5657 - 2000
-
№АртикулНазвание
-
1278001191 BaseBase
-
2278001265 CoverCover
-
3278000732 Ground PlateGround Plate
-
4278001130 Ignition CoilIgnition Coil
-
5278000826 Mounting PlateMounting Plate
-
6278000440 GasketGasket
-
7293200030 GasketGasket
-
8293750009 Tie Rap 160 mmTie Rap 160 mm
-
9293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
10243041660 Hex. Screw M4.8 x 16 (Plastite)Hex. Screw M4.8 x 16 (Plastite)
-
11234062600 Flat Washer 6 mmFlat Washer 6 mm
-
12211200043 Lock WasherLock Washer
-
13293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
14234061600 Flat Washer 6 mmFlat Washer 6 mm
-
15278000682 Grommet (1 Circuit) (Gray)Grommet (1 Circuit) (Gray)
-
16278001376 Starter RelayStarter Relay
-
17232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
18210261040 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
19278000861 Rear Electric Box Harness. Includes 19 - 27.Rear Electric Box Harness. Includes 19 - 27.
-
20270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
21278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
22278000631 Male Terminal (16-18 Gauge)Male Terminal (16-18 Gauge)
-
23293000052 Sealing CapSealing Cap
-
24278000300 Open BarrelOpen Barrel
-
25278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
26278001114 Female TerminalFemale Terminal
-
27278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
28278001008 Insulating SheathInsulating Sheath
-
29278000664 Ground Harness. Includes 29 - 31.Ground Harness. Includes 29 - 31.
-
30278000300 Open BarrelOpen Barrel
-
31278000228 Female Terminal (12-18 Gauge)Female Terminal (12-18 Gauge)
-
32278000665 Fuse Harness 15 Amp. Includes 32 - 38.Fuse Harness 15 Amp. Includes 32 - 38.
-
33278001326 Fuse Holder CapFuse Holder Cap
-
34278000343 15 Amp. Fuse15 Amp. Fuse
-
35278001009 Female Terminal (14-18 Gauge)Female Terminal (14-18 Gauge)
-
36278001007 Insulating Sheath (Simple) (Female Terminal)Insulating Sheath (Simple) (Female Terminal)
-
37278000300 Open BarrelOpen Barrel
-
38278000805 CushionCushion
-
39278000712 BatteryBattery
-
40211200018 Flat Washer 6 mmFlat Washer 6 mm
-
41211000045 Hex. ScrewHex. Screw
-
42211100022 Nut M6Nut M6
-
43293850031 StrapStrap
-
44278000245 3 Wire Support3 Wire Support
-
45293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
46278000511 Battery Cable (Red). Includes 46 - 49.Battery Cable (Red). Includes 46 - 49.
-
47278000100 Electric Box CapElectric Box Cap
-
48278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
49278000020 Protector CapProtector Cap
-
50278001234 Battery Lower PadBattery Lower Pad
-
51278001117 Battery Ground CableBattery Ground Cable
-
52278000609 Spark Plug (NGK BR8-ES)Spark Plug (NGK BR8-ES)
-
53232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
54278000965 Temperature SensorTemperature Sensor
-
55293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
56278001268 Spark Plug WireSpark Plug Wire
-
57278001268 Spark Plug WireSpark Plug Wire
-
58278000559 Collar SupportCollar Support
-
59278000975 Starter Cable (Red). Includes 59 - 62.Starter Cable (Red). Includes 59 - 62.
-
60278000100 CapCap
-
61278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
62278000020 Protector CapProtector Cap
-
63278000237 Spark Plug CapSpark Plug Cap
-
64234081600 Flat Washer 8 mmFlat Washer 8 mm
-
65213200016 Flat WasherFlat Washer
-
66207382560 Hex. Screw M8 x 25 (Scotch Grip)Hex. Screw M8 x 25 (Scotch Grip)
-
67278000100 Electric Box CapElectric Box Cap
-
68293750001 Tie Rap 94 mmTie Rap 94 mm
-
69250000005 Hex. Tapping ScrewHex. Tapping Screw
-
70293150005 Pop Rivet 3/16Pop Rivet 3/16
