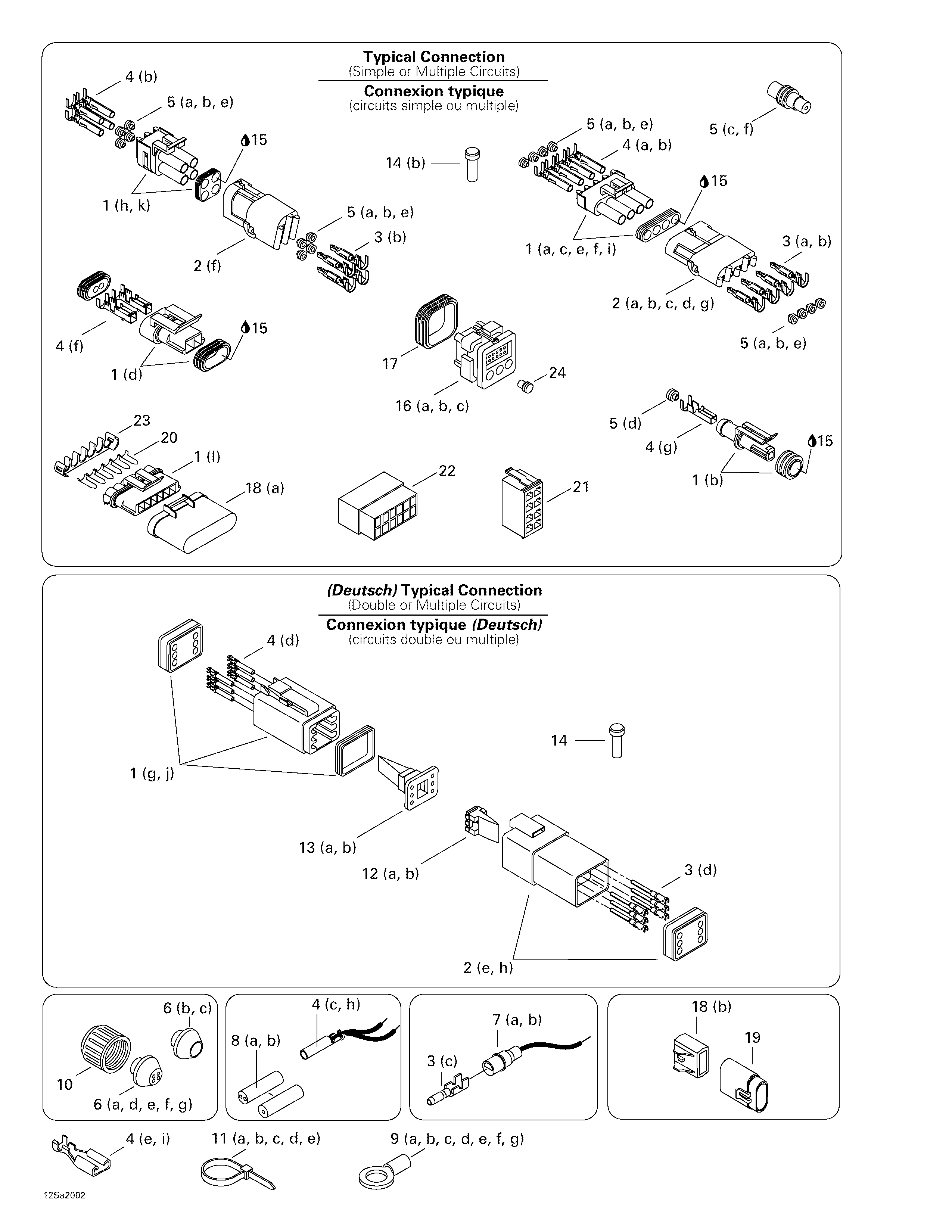

10- Typical Electrical Connections для BRP GTI, 5647/5657 - 2000
-
№АртикулНазвание
-
1a278000219 Male Housing (1 Circuit)(Packard)Male Housing (1 Circuit)(Packard)
-
1b278001012 Male Housing (1 Circuit)(AMP)Male Housing (1 Circuit)(AMP)
-
1c278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
1d278001113 Male Housing (2 Circuit)(Packard)Male Housing (2 Circuit)(Packard)
-
1e278000273 Male Housing (3 Circuits)(Packard)Male Housing (3 Circuits)(Packard)
-
1f278000395 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
1g278000739 Male Housing (4 Circuits)(Deutsch)Male Housing (4 Circuits)(Deutsch)
-
1h278000891 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
1i278000221 Male Housing (6 Circuits)(Packard)Male Housing (6 Circuits)(Packard)
-
1j278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
1k278001318 Male Housing (6 Circuits)(AMP)Male Housing (6 Circuits)(AMP)
-
1l278001327 Male Housing (6 Circuits)(Packard)Male Housing (6 Circuits)(Packard)
-
2a278000161 Female Housing (1 Circuit)(Packard)Female Housing (1 Circuit)(Packard)
-
2b278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
2c278000281 Female Housing (3 Circuits)(Packard)Female Housing (3 Circuits)(Packard)
-
2d278000394 Female Housing (4 Circuits)(Packard)Female Housing (4 Circuits)(Packard)
-
2e278000635 Female Housing (4 Circuits)(Deutsch)Female Housing (4 Circuits)(Deutsch)
-
2f278000890 Female Housing (4 Circuits)(Packard)Female Housing (4 Circuits)(Packard)
-
2g278000156 Female Housing (6 Circuits)(Packard)Female Housing (6 Circuits)(Packard)
-
2h270000137 Female Housing (6 Circuits)(Deutsch)Female Housing (6 Circuits)(Deutsch)
-
3a409004300 Male Terminal (16 Gauge)(Packard)Male Terminal (16 Gauge)(Packard)
-
3b278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
3c278000230 Male Terminal (20 Gauge)(AMP)Male Terminal (20 Gauge)(AMP)
-
3d278000631 Male Terminal (16-18 Gauge)(Deutsch)Male Terminal (16-18 Gauge)(Deutsch)
-
4a409007300 Female Terminal (16 Gauge)(Packard)Female Terminal (16 Gauge)(Packard)
-
4b278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
4c278001009 Female Terminal (14-18 Gauge)(AMP)Female Terminal (14-18 Gauge)(AMP)
-
4d278000632 Female Terminal (16-18 Gauge)(Deutsch)Female Terminal (16-18 Gauge)(Deutsch)
-
4e278000228 Female Terminal (12-18 Gauge)(AMP)Female Terminal (12-18 Gauge)(AMP)
-
4f278001114 Female Terminal (Packard)Female Terminal (Packard)
-
4g278001014 Female Terminal(AMP)Female Terminal(AMP)
-
4h278000995 Female Terminal(AMP)Female Terminal(AMP)
-
4i278000994 Female Terminal(AMP)Female Terminal(AMP)
-
5a278000218 Wire Seal (16-18 Gauge) (Green)(Packard)Wire Seal (16-18 Gauge) (Green)(Packard)
-
5b278001065 Wire Seal (20 Gauge)(Packard)Wire Seal (20 Gauge)(Packard)
-
5c278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
5d278001013 Wire Seal (Yellow)(AMP)Wire Seal (Yellow)(AMP)
-
5e278000996 Wire Seal(AMP)Wire Seal(AMP)
-
5f293000070 Sealing CapSealing Cap
-
6a293720030 Grommet (1 Circuit) (Blue)Grommet (1 Circuit) (Blue)
-
6b278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
6c278000682 Grommet (1 Circuit) (Light Gray)Grommet (1 Circuit) (Light Gray)
-
6D293720025 Grommet (2 Circuit) (Gray)Grommet (2 Circuit) (Gray)
-
6e278000193 Grommet (3 Circuit) (Black)Grommet (3 Circuit) (Black)
-
6f570026800 Grommet (4 Circuit) (Red)Grommet (4 Circuit) (Red)
-
6g293720034 Grommet (4 Circuit) (White)Grommet (4 Circuit) (White)
-
7A278000231 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
7b278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
8a278001007 Insulating Sheath (Simple) (Female Terminal)Insulating Sheath (Simple) (Female Terminal)
-
8b278000770 Insulating Sheath (Double) (Female Terminal)Insulating Sheath (Double) (Female Terminal)
-
9a278000992 Open Barrel 1/4'' (14-18 Gauge)(AMP)Open Barrel 1/4'' (14-18 Gauge)(AMP)
-
9b409003200 Open Barrel (Essex)Open Barrel (Essex)
-
9c278000300 Open Barrel(AMP)Open Barrel(AMP)
-
9d278001138 Open Barrel(8 mm)Open Barrel(8 mm)
-
9e278001165 Open BarrelOpen Barrel
-
9f278001323 Open Barrel(AMP)Open Barrel(AMP)
-
9g278001324 Open Barrel(AMP)Open Barrel(AMP)
-
10278000100 Electric Box CapElectric Box Cap
-
11a293750001 Tie Rap(94 mm) (Panduit)Tie Rap(94 mm) (Panduit)
-
11b293750002 Locking Tie 142 mmLocking Tie 142 mm
-
11c293750009 Tie Rap(160 mm) (Panduit)Tie Rap(160 mm) (Panduit)
-
11d414115200 Tie Rap (Panduit)Tie Rap (Panduit)
-
11e293750008 Tie Rap(350 mm) (Dennison)Tie Rap(350 mm) (Dennison)
-
12a278000738 (Male)SecondaryLock(4Circuits)(Deutsch)(Male)SecondaryLock(4Circuits)(Deutsch)
-
12b278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
13a278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
13b278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
14293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
14b293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16a278000993 Male Housing (26 Circuits)(AMP)Male Housing (26 Circuits)(AMP)
-
16b278001062 Male Housing (26 Circuits)(AMP)Male Housing (26 Circuits)(AMP)
-
16c278001063 Male Housing (26 Circuits)(AMP)Male Housing (26 Circuits)(AMP)
-
17278001307 Wire Seal(AMP)Wire Seal(AMP)
-
18a278001330 Cap (6 Circuits)Cap (6 Circuits)
-
18b278001326 Fuse Holder CapFuse Holder Cap
-
19278001325 Fuse HolderFuse Holder
-
20278001329 Buss BarBuss Bar
-
21278001321 Male Housing (8 Circuits)(Carlington)Male Housing (8 Circuits)(Carlington)
-
22278001322 Male Housing (12 Circuits)(Molex)Male Housing (12 Circuits)(Molex)
-
23278001328 Secondary Lock (Packard)Secondary Lock (Packard)
-
24409013900 Plug(AMP)Plug(AMP)
