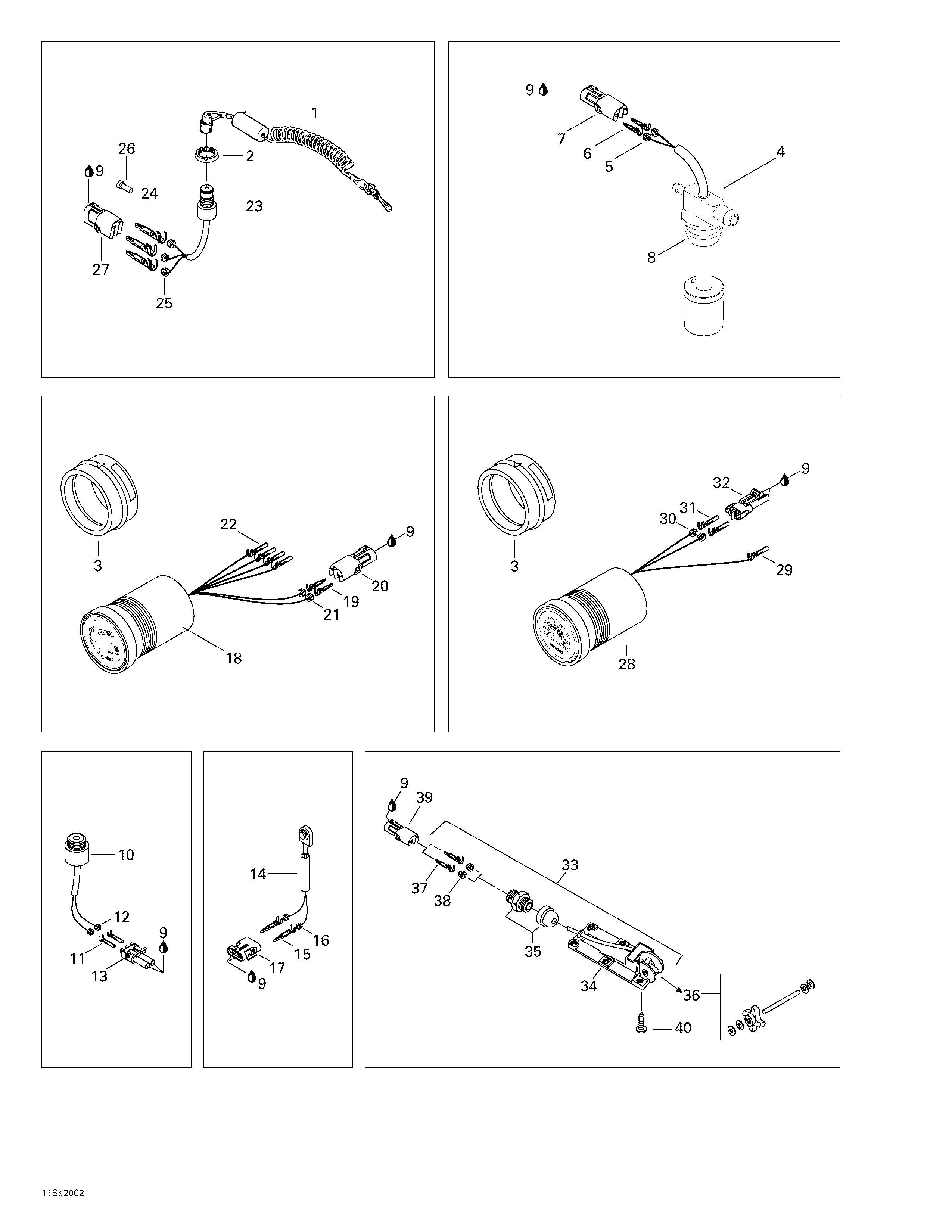

10- Electrical Accessories для BRP GTI, 5647/5657 - 2000
-
№АртикулНазвание
-
1278001543 Safety Lanyard Ass'ySafety Lanyard Ass'y
-
2278000508 Safety Switch NutSafety Switch Nut
-
3293720047 Gauge SupportGauge Support
-
4278001401 Oil Level Sensor Ass'y. Includes 4 - 8.Oil Level Sensor Ass'y. Includes 4 - 8.
-
5278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
6278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
7278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
8293720008 GrommetGrommet
-
9293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
10278001565 Buzzer Ass'y. Includes 10 - 13.Buzzer Ass'y. Includes 10 - 13.
-
11278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
12278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
13278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
14278001358 Ignition Switch Ass'y (Stop/Start). Includes 14 - 17.Ignition Switch Ass'y (Stop/Start). Includes 14 - 17.
-
15278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
16278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
17278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
18278001350 Oil/Fuel Level Gauge. Includes 18 - 22.Oil/Fuel Level Gauge. Includes 18 - 22.
-
19278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
20278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
21278001065 Wire SealWire Seal
-
22278000995 Female TerminalFemale Terminal
-
23278000977 Safety Switch Ass'y. Includes 23 - 27.Safety Switch Ass'y. Includes 23 - 27.
-
24278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
25278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
26278000216 Sealing PlugSealing Plug
-
27278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
28278001333 Speedometer Ass'y. Includes 28 - 32.Speedometer Ass'y. Includes 28 - 32.
-
29278000995 Female terminalFemale terminal
-
30278001065 Wire SealWire Seal
-
31278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
32278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
33278000970 Speed Sensor. Includes 33 - 38.Speed Sensor. Includes 33 - 38.
-
35293710031 Electric ConnectorElectric Connector
-
36295500108 Paddle Wheel KitPaddle Wheel Kit
-
39278000217 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
40250000020 Phillips Screw M5 x 10 (Scotch Grip)Phillips Screw M5 x 10 (Scotch Grip)
