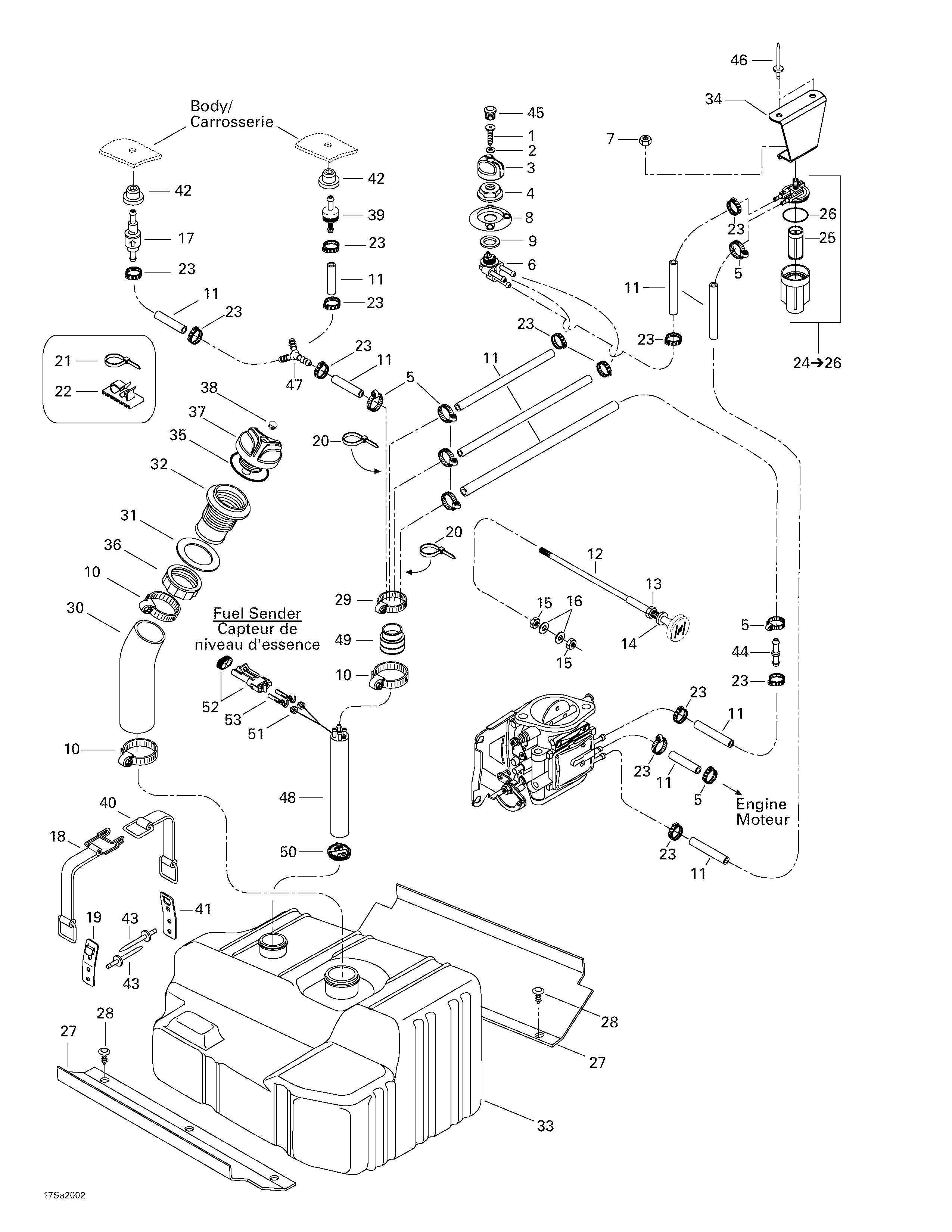

02- Fuel System для BRP GTI, 5647/5657 - 2000
-
№АртикулНазвание
-
1208640860 Phillips Screw M4 x 8Phillips Screw M4 x 8
-
2234040600 Flat Washer 4 mmFlat Washer 4 mm
-
3275500263 Fuel Valve KnobFuel Valve Knob
-
4212100009 Hex. Plastic NutHex. Plastic Nut
-
5293650038 Tridon ClampTridon Clamp
-
6275500098 Fuel ValveFuel Valve
-
7232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
8275500264 Fuel Valve PlateFuel Valve Plate
-
9293250004 Valve GasketValve Gasket
-
10293650023 Tridon ClampTridon Clamp
-
11275500139 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
12270000728 Choke Cable. Includes 12 - 16.Choke Cable. Includes 12 - 16.
-
13211100030 Hex. NutHex. Nut
-
15232160600 Lock Nut M6Lock Nut M6
-
16234061600 Flat Washer 6 mmFlat Washer 6 mm
-
17275500479 Pressure Relief ValvePressure Relief Valve
-
18293850037 Strap. Includes 18 - 19.Strap. Includes 18 - 19.
-
19293850024 Strap ClipStrap Clip
-
20294000606 Tie Rap 180 mmTie Rap 180 mm
-
21293750008 Tie Rap 350 mmTie Rap 350 mm
-
22293750005 Tie ClampTie Clamp
-
23293650042 Clamp OetikerClamp Oetiker
-
24275500088 Fuel Filter Ass'y. Includes 24 - 26.Fuel Filter Ass'y. Includes 24 - 26.
-
25275500089 Fuel FilterFuel Filter
-
26275500090 O-RingO-Ring
-
27293830077 Pad RubberPad Rubber
-
28293730006 Dart BlackDart Black
-
29293650035 Tridon ClampTridon Clamp
-
30275500301 Filler Neck HoseFiller Neck Hose
-
31293250029 GasketGasket
-
32275500231 Filler NeckFiller Neck
-
33275500291 Fuel TankFuel Tank
-
34275500287 Fuel Filter SupportFuel Filter Support
-
35293250075 GasketGasket
-
36211100012 Nut Neck Filler FuelNut Neck Filler Fuel
-
37275500430 Fuel Tank Cap. Includes 37 - 38.Fuel Tank Cap. Includes 37 - 38.
-
38293000034 Cap Snap (Black)Cap Snap (Black)
-
39275500398 Check ValveCheck Valve
-
40293850036 StrapStrap
-
41293850024 Strap ClipStrap Clip
-
42293720029 GrommetGrommet
-
43293150037 Rivet 3/16Rivet 3/16
-
44293710039 Straight FittingStraight Fitting
-
45275500241 Cap PlugCap Plug
-
46293150043 Pop Rivet 3/16Pop Rivet 3/16
-
47293710059 Y FittingY Fitting
-
48275500473 Baffle Pick Up. Includes 48 - 53.Baffle Pick Up. Includes 48 - 53.
-
49275500111 Tube AdapterTube Adapter
-
50275500397 Fuel FilterFuel Filter
-
51278000218 Wire SealWire Seal
-
52278000220 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
53278000223 Female TerminalFemale Terminal
