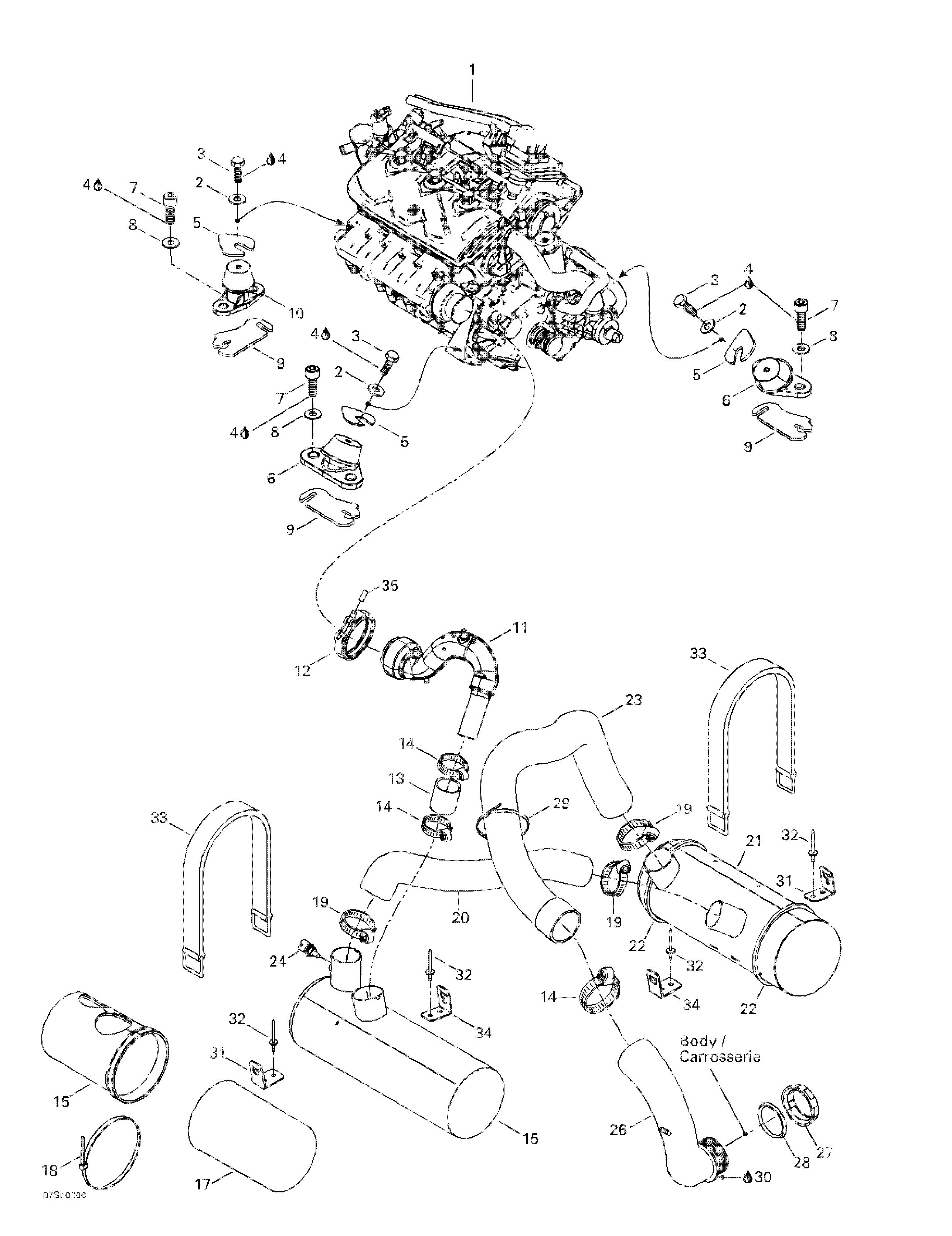

01- Engine Support And Muffler для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1270000504 Rotax Engine 4 Strokes 1503Rotax Engine 4 Strokes 1503
-
2234082600 Flat Washer 8 mmFlat Washer 8 mm
-
3207182560 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
4293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
5270000025 Shim 1.3 mmShim 1.3 mm
-
270000024 Shim 0.3 mmShim 0.3 mm
-
6270000510 Rubber MountRubber Mount
-
7205084060 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
8250200018 Conical WasherConical Washer
-
9270000446 Shim 1.3 mmShim 1.3 mm
-
270000445 Shim 0.3 mmShim 0.3 mm
-
10270000489 Rubber MountRubber Mount
-
11274000958 Exhaust PipeExhaust Pipe
-
12274000959 Exhaust ClampExhaust Clamp
-
13274000961 Exhaust HoseExhaust Hose
-
14293650006 Tridon Gear ClampTridon Gear Clamp
-
15274000846 Muffler (L.H.)Muffler (L.H.)
-
16274000851 Muffler Cover (Front Section)Muffler Cover (Front Section)
-
17274000852 Muffler Cover (Rear Section)Muffler Cover (Rear Section)
-
18293750020 Tie Rap 838 mmTie Rap 838 mm
-
19293650107 Tridon Gear ClampTridon Gear Clamp
-
20274000840 Exhaust HoseExhaust Hose
-
21274000855 Muffler (R.H.)Muffler (R.H.)
-
22293830034 Rubber StripRubber Strip
-
23274000841 Exhaust HoseExhaust Hose
-
24278001016 Temperature SensorTemperature Sensor
-
25293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
26274000901 Exhaust OutletExhaust Outlet
-
27274000224 Nut 72 mmNut 72 mm
-
28274000225 Stabilising WasherStabilising Washer
-
29293750008 Tie Rap 350 mmTie Rap 350 mm
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31293850029 Strap Clip 90 DegStrap Clip 90 Deg
-
32293150037 Rivet 3/16''Rivet 3/16''
-
33293850036 StrapStrap
-
34293850069 Strap clip 90 DegStrap clip 90 Deg
-
35415080200 Hose (Meter)Hose (Meter)
