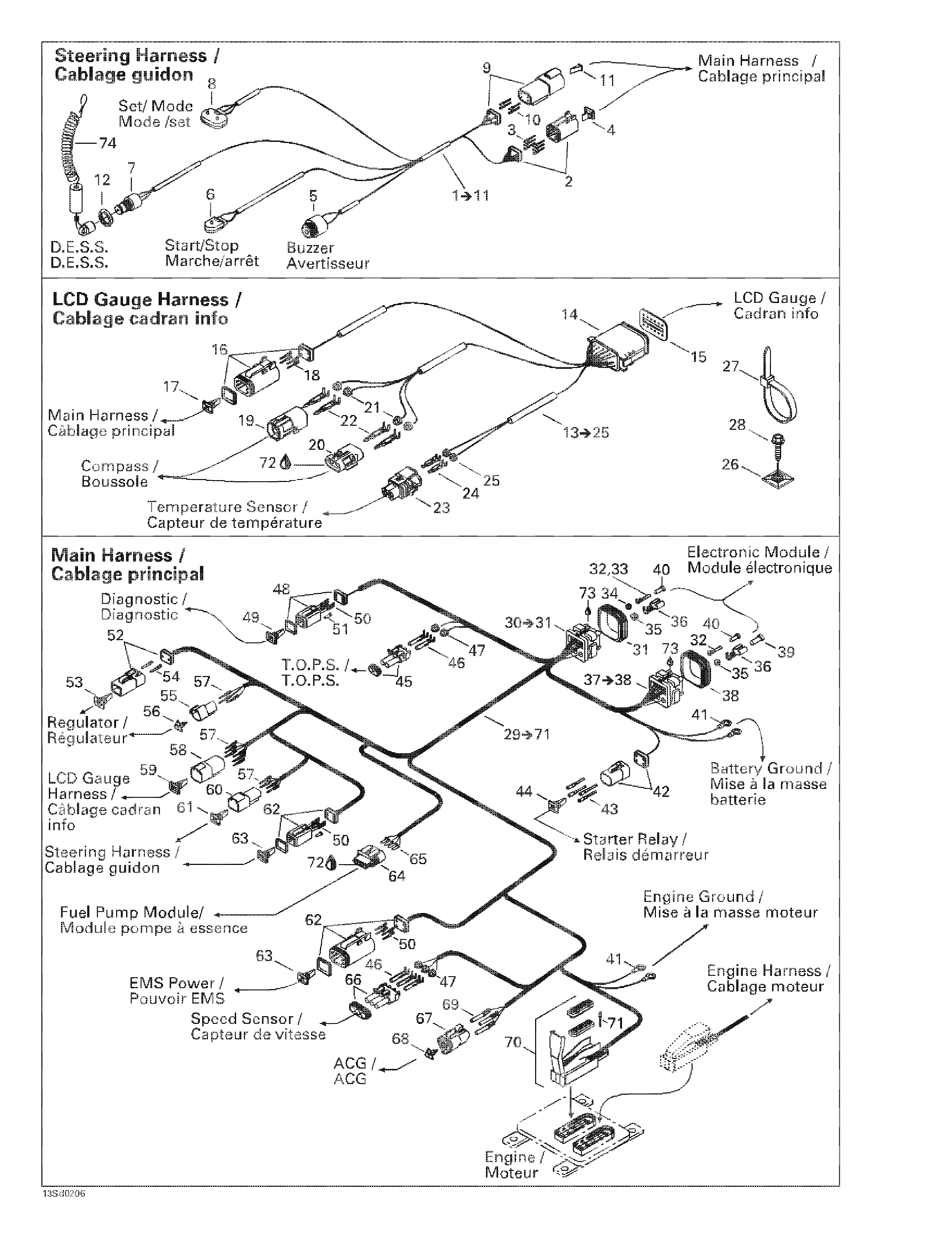

10- Electrical Harness для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1278001732 Steering Harness. Includes 1 - 11.Steering Harness. Includes 1 - 11.
-
2278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
3278000632 Female TerminalFemale Terminal
-
4278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
5278001586 BuzzerBuzzer
-
6278001733 Start/Stop SwitchStart/Stop Switch
-
7278001734 Safety SwitchSafety Switch
-
8278001755 Mode/Set SwitchMode/Set Switch
-
9278000635 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
10278000631 Male TerminalMale Terminal
-
11278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
12278000508 Safety Switch NutSafety Switch Nut
-
13278001702 LCD Gauge Harness. Includes 13 - 25.LCD Gauge Harness. Includes 13 - 25.
-
14409015900 Female Housing (12 Circuits)Female Housing (12 Circuits)
-
15409015700 Female Wedge (12 Circuits)Female Wedge (12 Circuits)
-
16278000739 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
17278000738 Male Wedge (4 Circuits)Male Wedge (4 Circuits)
-
18278000632 Female TerminalFemale Terminal
-
19278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
20278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
21278000218 Wire SealWire Seal
-
22278000222 Male TerminalMale Terminal
-
23515175588 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
24278000998 Female TerminalFemale Terminal
-
25278000999 Wire SealWire Seal
-
26293750026 Tie Rap MountTie Rap Mount
-
27414115200 Tie Rap 180 mmTie Rap 180 mm
-
28241141360 Hex. Flanged Screw K40 x 13Hex. Flanged Screw K40 x 13
-
29278001607 Main Harness. Includes 29 - 71.Main Harness. Includes 29 - 71.
-
30278000993 Male Housing (26 Circuits). Includes 30 - 31.Male Housing (26 Circuits). Includes 30 - 31.
-
31278001307 Wire SealWire Seal
-
32278000995 Female TerminalFemale Terminal
-
33409011700 Female TerminalFemale Terminal
-
34278001223 Wire SealWire Seal
-
35278000996 Wire SealWire Seal
-
36278000994 Female TerminalFemale Terminal
-
37278001062 Male Housing (26 Circuits). Includes 37 - 38.Male Housing (26 Circuits). Includes 37 - 38.
-
38278001307 Wire SealWire Seal
-
39409013900 PlugPlug
-
40293000070 Sealing CapSealing Cap
-
41278001392 Open BarrelOpen Barrel
-
42278001473 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
43515175260 Female TerminalFemale Terminal
-
44278001474 Male Wedge (4 Circuits)Male Wedge (4 Circuits)
-
45278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
46278000223 Female TerminalFemale Terminal
-
47278000218 Wire SealWire Seal
-
48278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
49278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
50278000632 Female TerminalFemale Terminal
-
51293000052 Sealing PlugSealing Plug
-
52278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
53278001671 Male Wedge (2 Circuits)Male Wedge (2 Circuits)
-
54515175567 Female TerminalFemale Terminal
-
55409207000 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
56409207600 Male Wedge (3 Circuits)Male Wedge (3 Circuits)
-
57278000631 Male TerminalMale Terminal
-
58278000635 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
59278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
60270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
61278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
62278000739 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
63278000738 Male Wedge (4 Circuits)Male Wedge (4 Circuits)
-
64278001308 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
65278001114 Female TerminalFemale Terminal
-
66278000273 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
67409207400 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
68409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
69278000632 Female TerminalFemale Terminal
-
70278001751 Male Housing (41 Circuits)Male Housing (41 Circuits)
-
71278001750 Female TerminalFemale Terminal
-
278001752 Female TerminalFemale Terminal
-
72293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
73293550015 Deoxit Spray LubricantDeoxit Spray Lubricant
-
74278001543 Safety LanyardSafety Lanyard
