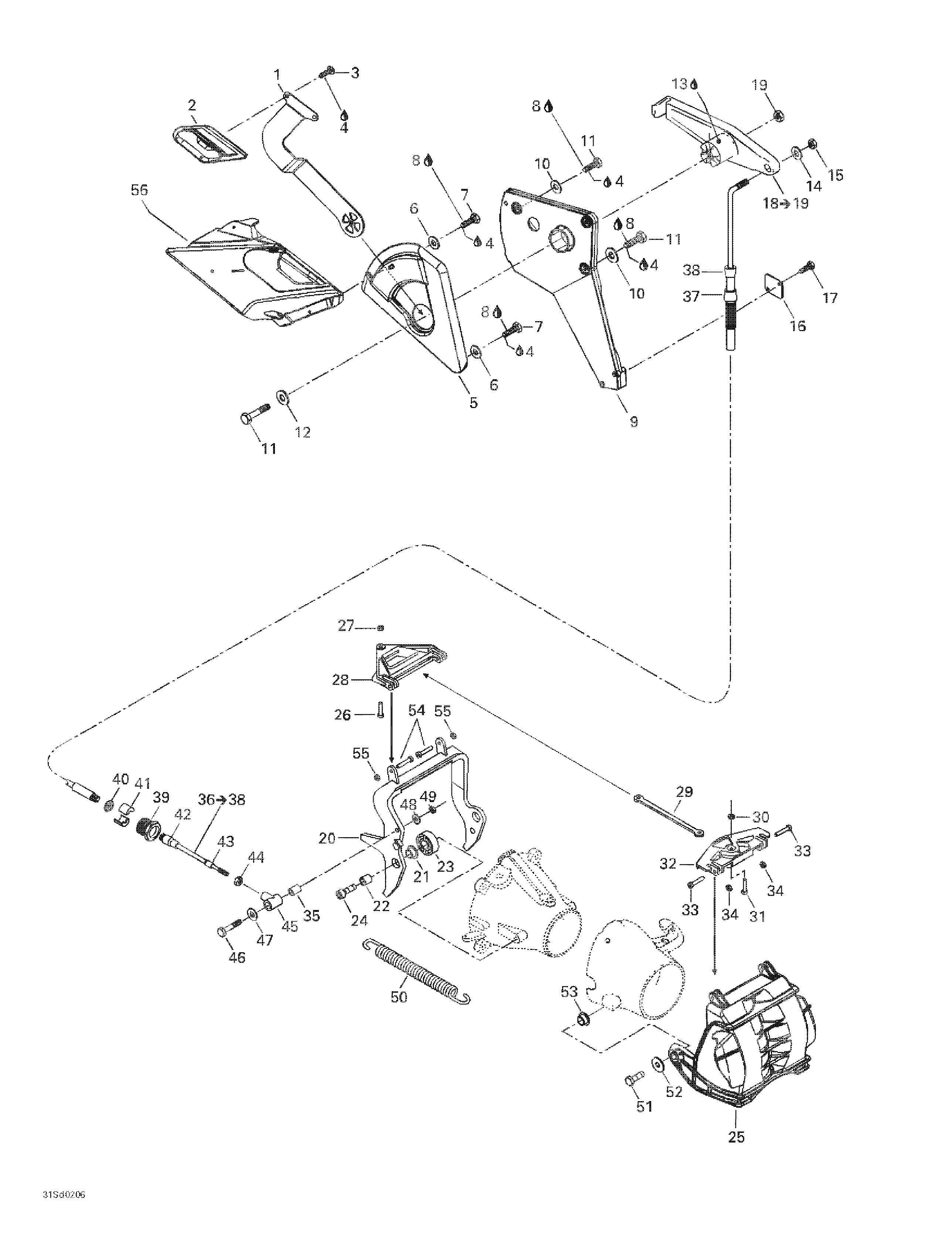

05- Reverse для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1271001156 Handle LeverHandle Lever
-
2271001157 Reverse HandleReverse Handle
-
3208451260 Phillips Screw M5 x 12Phillips Screw M5 x 12
-
4293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
5271001158 Reverse Handle HousingReverse Handle Housing
-
6250200022 Flat Washer 6.6 mmFlat Washer 6.6 mm
-
7207161260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
8296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
9271001358 Reverse Cable SupportReverse Cable Support
-
10234062600 Flat Washer 6 mmFlat Washer 6 mm
-
11207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
12234061600 Flat Washer 6 mmFlat Washer 6 mm
-
13293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
14234051600 Flat Washer 5 mmFlat Washer 5 mm
-
15212000006 Elastic Stop NutElastic Stop Nut
-
16277001058 BracketBracket
-
17207153060 Hex. Screw M5 x 30Hex. Screw M5 x 30
-
18271000986 Lever. Includes 18 - 19.Lever. Includes 18 - 19.
-
19232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
20271001012 ArmArm
-
21271000321 Bushing VenturiBushing Venturi
-
22271001039 SpacerSpacer
-
23293900038 BushingBushing
-
24250000026 Pivot Screw M8 x 25Pivot Screw M8 x 25
-
25271001317 Reverse GateReverse Gate
-
26250000018 Pivot ScrewPivot Screw
-
27232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
28271001017 TriangleTriangle
-
29271001018 Rod-ConnectorRod-Connector
-
30232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
31250000018 Pivot ScrewPivot Screw
-
32271001312 Rod PivotRod Pivot
-
33250000023 Screw PivotScrew Pivot
-
34232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
35271001020 SpacerSpacer
-
36277000948 Reverse Cable. Includes 36 - 38.Reverse Cable. Includes 36 - 38.
-
37277000473 Boot (Large)Boot (Large)
-
38277000466 Boot (Small)Boot (Small)
-
39277000052 Cable LockCable Lock
-
40211100009 Rubber WasherRubber Washer
-
41277000055 Half RingHalf Ring
-
42277000473 Boot (Large)Boot (Large)
-
43277000466 Boot (Small)Boot (Small)
-
44212100005 Nut 10-32Nut 10-32
-
45277000854 JointJoint
-
46207063560 Hex. Cap Screw M6 x 35Hex. Cap Screw M6 x 35
-
47234062600 Flat Washer 6 mmFlat Washer 6 mm
-
48234061600 Flat Washer 6 mmFlat Washer 6 mm
-
49232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
50271001328 SpringSpring
-
51207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
52234082600 Flat Washer 8mmFlat Washer 8mm
-
53277001066 SpacerSpacer
-
54250000018 Pivot ScrewPivot Screw
-
55232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
56269501159 Grill L.HGrill L.H
