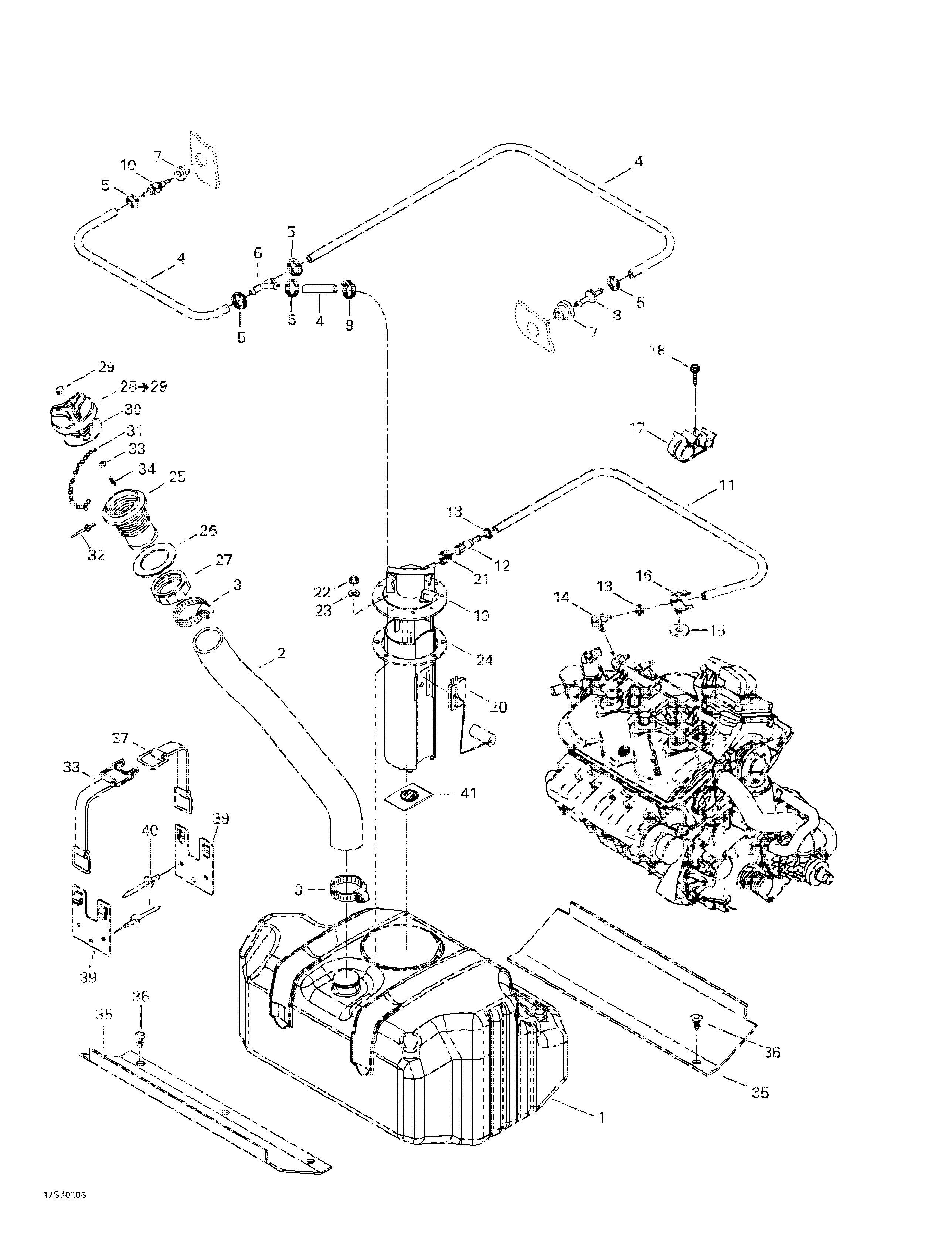

02- Fuel System для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1275500480 Fuel TankFuel Tank
-
2275500491 Filler NeckFiller Neck
-
3293650023 Tridon Gear ClampTridon Gear Clamp
-
4275500549 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
5293650050 Caillau Clic ClampCaillau Clic Clamp
-
6293710059 ''Y'' Fitting''Y'' Fitting
-
7293720029 GrommetGrommet
-
8275500398 Check ValveCheck Valve
-
9293650128 Tridon Gear ClampTridon Gear Clamp
-
10275500505 Check ValveCheck Valve
-
11275500563 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
12275500428 Quick Connector BoxQuick Connector Box
-
13293650047 Oetiker ClampOetiker Clamp
-
14293710099 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
15250200028 Rubber WasherRubber Washer
-
16275500528 Hose RetainerHose Retainer
-
17275500553 RetainerRetainer
-
18241141660 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
-
19270600041 Fuel Pump ModuleFuel Pump Module
-
20270600051 Sensor LeverSensor Lever
-
21275500429 Quick Connector StopperQuick Connector Stopper
-
22232551200 Elastic Stop Nut M5Elastic Stop Nut M5
-
23234052400 Flat Washer 5 mmFlat Washer 5 mm
-
24293250088 GasketGasket
-
25275500231 Filler NeckFiller Neck
-
26293250029 GasketGasket
-
27211100012 Filler Neck NutFiller Neck Nut
-
28275500430 Fuel Tank Cap. Includes 28 - 29.Fuel Tank Cap. Includes 28 - 29.
-
29293000034 Snap CapSnap Cap
-
30293250075 GasketGasket
-
31275500518 Fuel Cap ChainFuel Cap Chain
-
32390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
33234032600 Flat Washer 3 mmFlat Washer 3 mm
-
34241140060 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
-
35293830094 Rubber PadRubber Pad
-
36293730006 DartDart
-
37293850067 Fuel Tank StrapFuel Tank Strap
-
38293850038 Fuel Tank StrapFuel Tank Strap
-
39293850066 Strap ClipStrap Clip
-
40293150037 Rivet 3/16''Rivet 3/16''
-
41219700368 Lower FilterLower Filter
