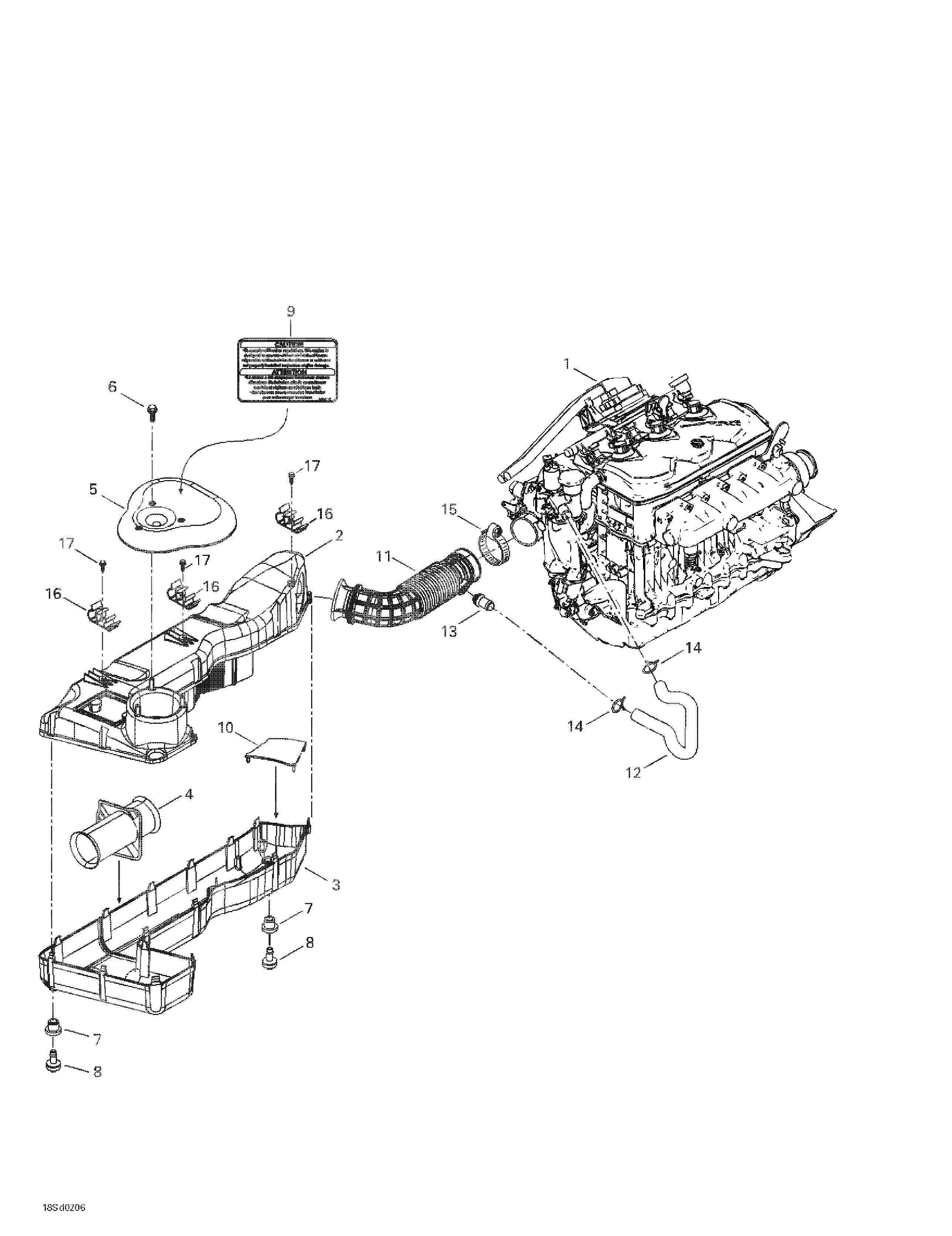

02- Air Intake System для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1270000504 Rotax Engine 4 Strokes 1503Rotax Engine 4 Strokes 1503
-
2273000189 Air Silencer Upper ShellAir Silencer Upper Shell
-
3273000190 Air Silencer Lower ShellAir Silencer Lower Shell
-
4273000191 Connector TubeConnector Tube
-
5273000192 Air Silencer CoverAir Silencer Cover
-
6241141660 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
-
7293720064 GrommetGrommet
-
8275500454 Check ValveCheck Valve
-
9516001191 Instruction LabelInstruction Label
-
10273000206 DeflectorDeflector
-
11273000187 Intake HoseIntake Hose
-
12275500497 Formed HoseFormed Hose
-
13273000195 BreatherBreather
-
14293650115 Spring ClampSpring Clamp
-
15293650061 Tridon Gear ClampTridon Gear Clamp
-
16275500553 RetainerRetainer
-
17241141660 Hex. Flanged Screw K40 x 16Hex. Flanged Screw K40 x 16
