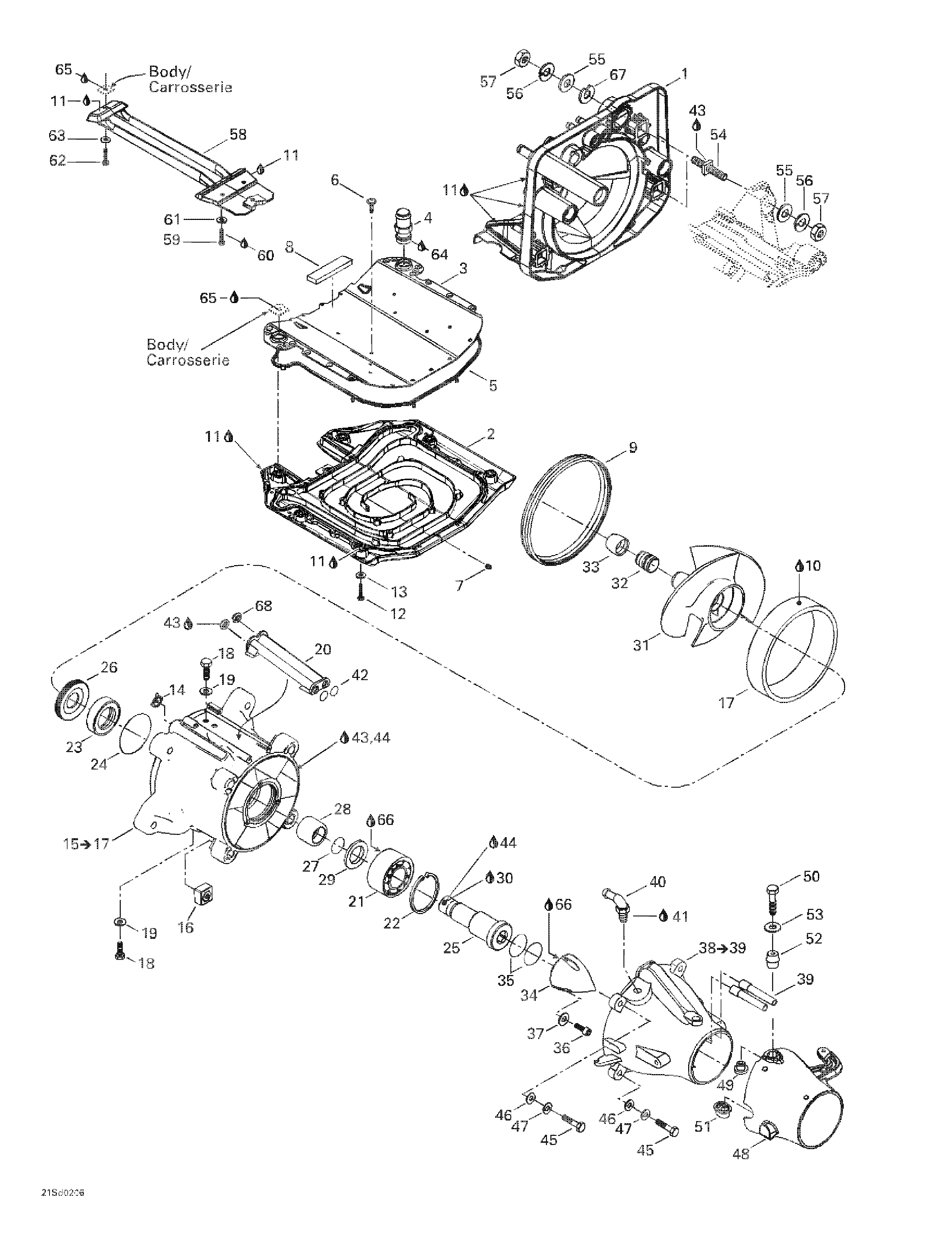

05- Propulsion System для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1271001159 Pump SupportPump Support
-
2271001318 Riding PlateRiding Plate
-
3271001335 Cover PlateCover Plate
-
5293250116 Oil SealOil Seal
-
6250000064 Screw M6 x 14Screw M6 x 14
-
7250500005 Drain PlugDrain Plug
-
8293250087 Gasket (Meter)Gasket (Meter)
-
9293200051 Neoprene SealNeoprene Seal
-
10413708300 Glue Tube, Loctite Gel 454, 20 gGlue Tube, Loctite Gel 454, 20 g
-
11293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
12207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
13234081600 Flat Washer 8 mmFlat Washer 8 mm
-
14291001731 ReducerReducer
-
15271001288 Impeller Housing. Includes 15 - 17.Impeller Housing. Includes 15 - 17.
-
16211100033 Square Nut M8Square Nut M8
-
17271000653 Wear RingWear Ring
-
18250000040 Hex. Plastite Screw #10 x 3/8''Hex. Plastite Screw #10 x 3/8''
-
19234051600 Flat Washer 5 mmFlat Washer 5 mm
-
20271000785 Water OutletWater Outlet
-
21293350042 Angle BearingAngle Bearing
-
22293370021 CirclipCirclip
-
23293200080 Oil SealOil Seal
-
24293300090 O-RingO-Ring
-
25271001263 Impeller ShaftImpeller Shaft
-
26271001278 ShieldShield
-
27293300079 O-RingO-Ring
-
28271001359 Shaft SleeveShaft Sleeve
-
29271001264 SpacerSpacer
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31271001171 Impeller Ass'yImpeller Ass'y
-
32271001152 Impeller BootImpeller Boot
-
33271001153 RingRing
-
34271001262 Impeller CoverImpeller Cover
-
35293300086 O-RingO-Ring
-
36205562060 Socket Screw M6 x 20 (Scotch Grip)Socket Screw M6 x 20 (Scotch Grip)
-
37234061600 Flat Washer 6 mmFlat Washer 6 mm
-
38271001163 Venturi. Includes 38 - 39.Venturi. Includes 38 - 39.
-
39271001133 Siphon TubeSiphon Tube
-
40271001298 Elbow Ass'yElbow Ass'y
-
41293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
42293300013 O-RingO-Ring
-
43293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
44293800041 Loctite, Primer NLoctite, Primer N
-
45207285060 Hex. Screw M8 x 50 (Scotch Grip)Hex. Screw M8 x 50 (Scotch Grip)
-
46234081600 Flat Washer 8 mmFlat Washer 8 mm
-
47234181601 Lock Washer 8 mmLock Washer 8 mm
-
48271001311 Steering NozzleSteering Nozzle
-
49293900001 Venturi BushingVenturi Bushing
-
50207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
51293900010 Plastic BushingPlastic Bushing
-
52271000122 SleeveSleeve
-
53293050001 Washer 8 mmWasher 8 mm
-
54250300010 Square StudSquare Stud
-
55234002600 Flat Washer 10 mmFlat Washer 10 mm
-
56234101601 Lock Washer 10 mmLock Washer 10 mm
-
57232001600 Hex. Nut M10Hex. Nut M10
-
58271001169 Pump GratePump Grate
-
59207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
60293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
61234061600 Flat Washer 8 mmFlat Washer 8 mm
-
62207382560 Hex. Screw M8 x 25 (Scotch Grip)Hex. Screw M8 x 25 (Scotch Grip)
-
63234081600 Flat Washer 8 mmFlat Washer 8 mm
-
64293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
65296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
66293550032 Asalco ThermaLube Grease XL OLC2, 110 grAsalco ThermaLube Grease XL OLC2, 110 gr
-
67272000053 ShimShim
-
68293250084 O-RingO-Ring
