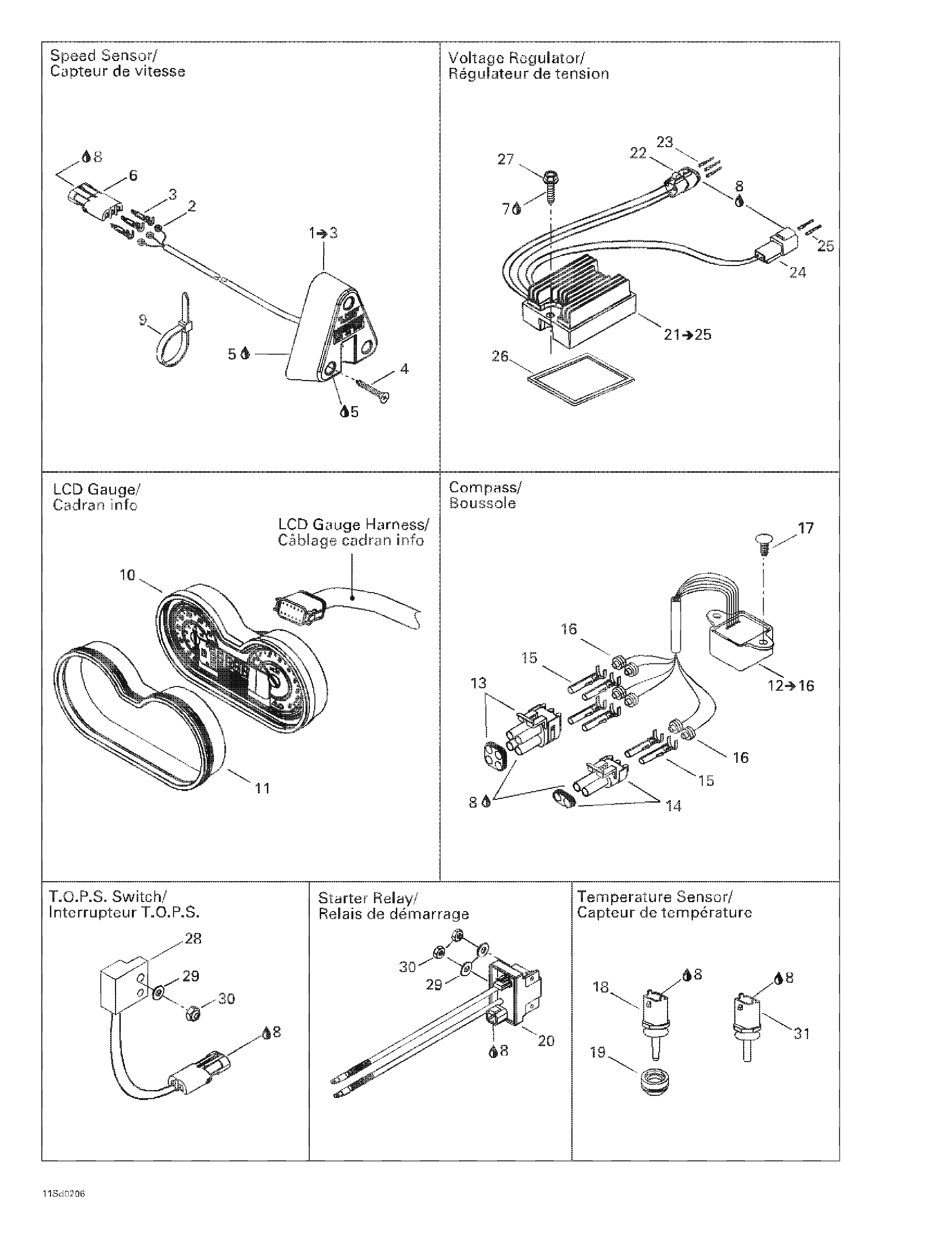

10- Electrical Accessories для BRP GTX 4-TEC, 5573/5574/5593/5594 - 2002
-
№АртикулНазвание
-
1278001585 Speed Sensor. Includes 1 - 3.Speed Sensor. Includes 1 - 3.
-
4211000021 Phillips ScrewPhillips Screw
-
5296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
6278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
7293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9414115200 Tie Rap 180 mmTie Rap 180 mm
-
10278001591 LCD GaugeLCD Gauge
-
11278001603 Gauge SupportGauge Support
-
12278001243 Compass. Includes 12 - 16.Compass. Includes 12 - 16.
-
13278000891 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
14278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
15278000223 Female TerminalFemale Terminal
-
16278000218 Wire SealWire Seal
-
17293730010 DartDart
-
18270600000 Air Temperature Sensor (Storage Cover)Air Temperature Sensor (Storage Cover)
-
19278001054 InsulatorInsulator
-
20278001767 Starter RelayStarter Relay
-
21278001581 Voltage Regulator. Includes 21 - 25.Voltage Regulator. Includes 21 - 25.
-
22409207400 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
23278000631 Male TerminalMale Terminal
-
24409206900 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
26293250123 SealSeal
-
27211000023 Hex. ScrewHex. Screw
-
28278001547 T.O.P.S. SwitchT.O.P.S. Switch
-
29234061600 Flat Washer 6 mmFlat Washer 6 mm
-
30232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
31278001016 Temperature SensorTemperature Sensor
