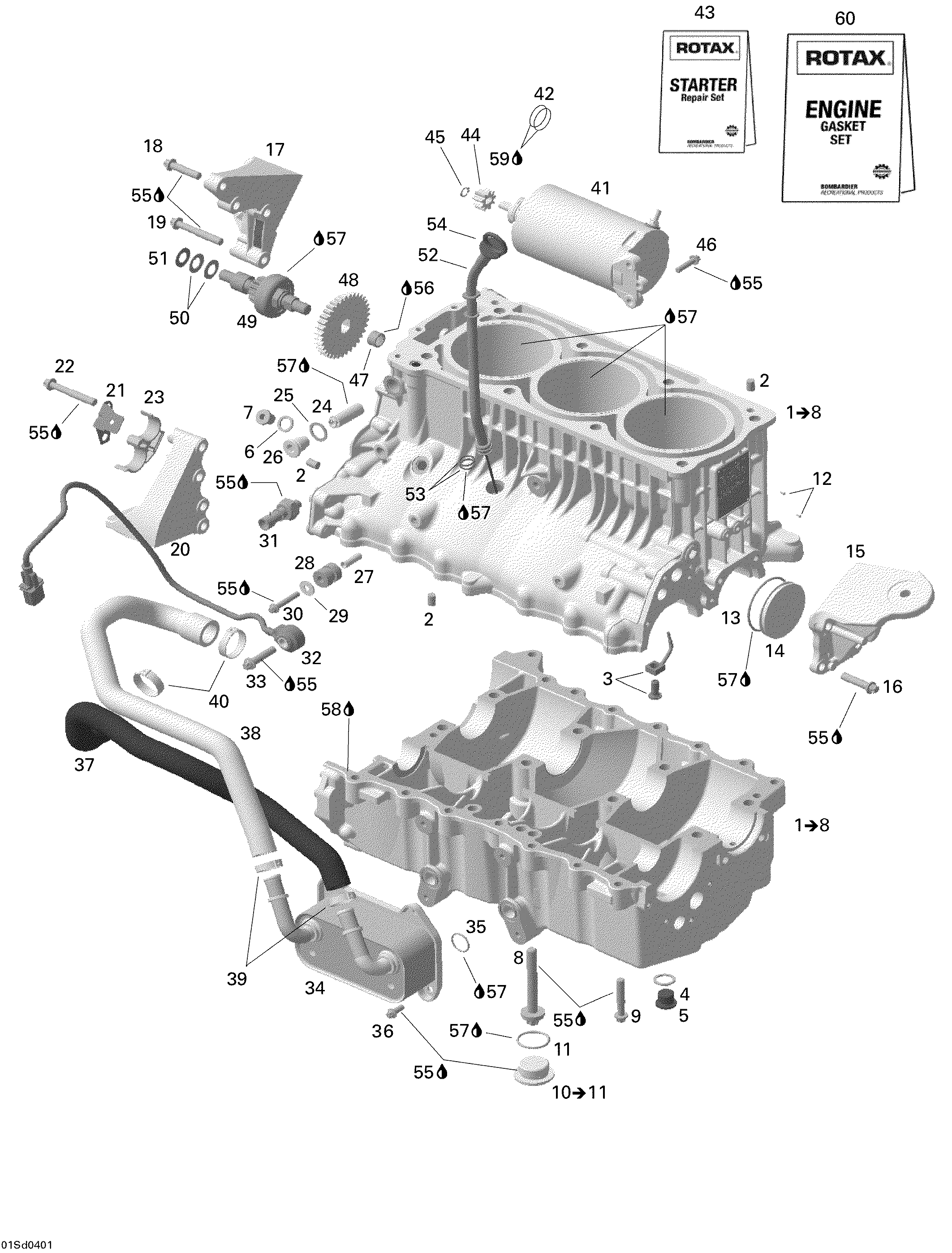

01- Engine Block для BRP GTX 4-TEC, Special Supercharged - 2004
-
№АртикулНазвание
-
1420888812 Engine block ass'y. Includes 1 to 8Engine block ass'y. Includes 1 to 8
-
2420632010 Pin M8 x 12Pin M8 x 12
-
3420956775 Oil hole adaptorOil hole adaptor
-
4420430623 Gasket RingGasket Ring
-
5420240233 Plug screw M16Plug screw M16
-
6420250015 Sealing ringSealing ring
-
7420841923 Plug screw M12Plug screw M12
-
8420641120 Torx screw M10 X 82Torx screw M10 X 82
-
9420641203 Torx Flanged Screw M8 X 45Torx Flanged Screw M8 X 45
-
10420641170 Plug screw M30 x 1.5. Includes 10 to 11Plug screw M30 x 1.5. Includes 10 to 11
-
11420631300 O-ringO-ring
-
12420249073 Grooved pinGrooved pin
-
13420430405 O-ringO-ring
-
14420660110 Plug coverPlug cover
-
15420811790 Front engine bracketFront engine bracket
-
16420641188 Torx flanged screw M8 x 35Torx flanged screw M8 x 35
-
17420811785 Engine bracket PTO (exhaust)Engine bracket PTO (exhaust)
-
18420641188 Torx flanged screw M8 x 35Torx flanged screw M8 x 35
-
19420641213 Torx flanged screw M8 x 55Torx flanged screw M8 x 55
-
20420811780 Engine bracket PTO (intake)Engine bracket PTO (intake)
-
21420851740 Retaining plateRetaining plate
-
22420641213 Torx flanged screw M8 x 55Torx flanged screw M8 x 55
-
23420660290 Hose bracketHose bracket
-
24420236252 Chain tensionerChain tensioner
-
25420430623 Gasket RingGasket Ring
-
26420640453 Plug screw M16Plug screw M16
-
27420847970 SpacerSpacer
-
28420660090 Rubber bracketRubber bracket
-
29420827968 Flat washer 6.4 mmFlat washer 6.4 mm
-
30420641258 Torx flanged screw M6 x 35Torx flanged screw M6 x 35
-
31420256777 Oil pressure switchOil pressure switch
-
32420664030 Knock sensorKnock sensor
-
33420641188 Torx flanged screw M8 x 35Torx flanged screw M8 x 35
-
34420888850 Oil radiatorOil radiator
-
35420250055 O-ringO-ring
-
36420641048 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
37420922796 Formed hoseFormed hose
-
38420922791 Formed hoseFormed hose
-
39420851663 Gear clampGear clamp
-
40420851673 Gear clampGear clamp
-
41420888994 Electric starter ass'yElectric starter ass'y
-
42420631310 O-ringO-ring
-
43420664710 Carbon brush setCarbon brush set
-
44420834521 Starter gear 9 teethStarter gear 9 teeth
-
45420845600 Retaining ringRetaining ring
-
46420641238 Torx flanged screw M6 x 25Torx flanged screw M6 x 25
-
47420232480 Needle bearingNeedle bearing
-
48420889870 Drive gear 35 teethDrive gear 35 teeth
-
49420888980 Drive axle ass'yDrive axle ass'y
-
50420238300 Spring diskSpring disk
-
51420827261 Thrust washerThrust washer
-
52420956943 Oil Level TubeOil Level Tube
-
53420950810 O-ringO-ring
-
54420956933 Oil Level GaugeOil Level Gauge
-
55293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
56413707000 Molykote 111Molykote 111
-
57219700346 Engine oil 4 strokes, 10W40, 12 x 1 literEngine oil 4 strokes, 10W40, 12 x 1 liter
-
58293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
59293550021 Isoflex grease, 50 gIsoflex grease, 50 g
