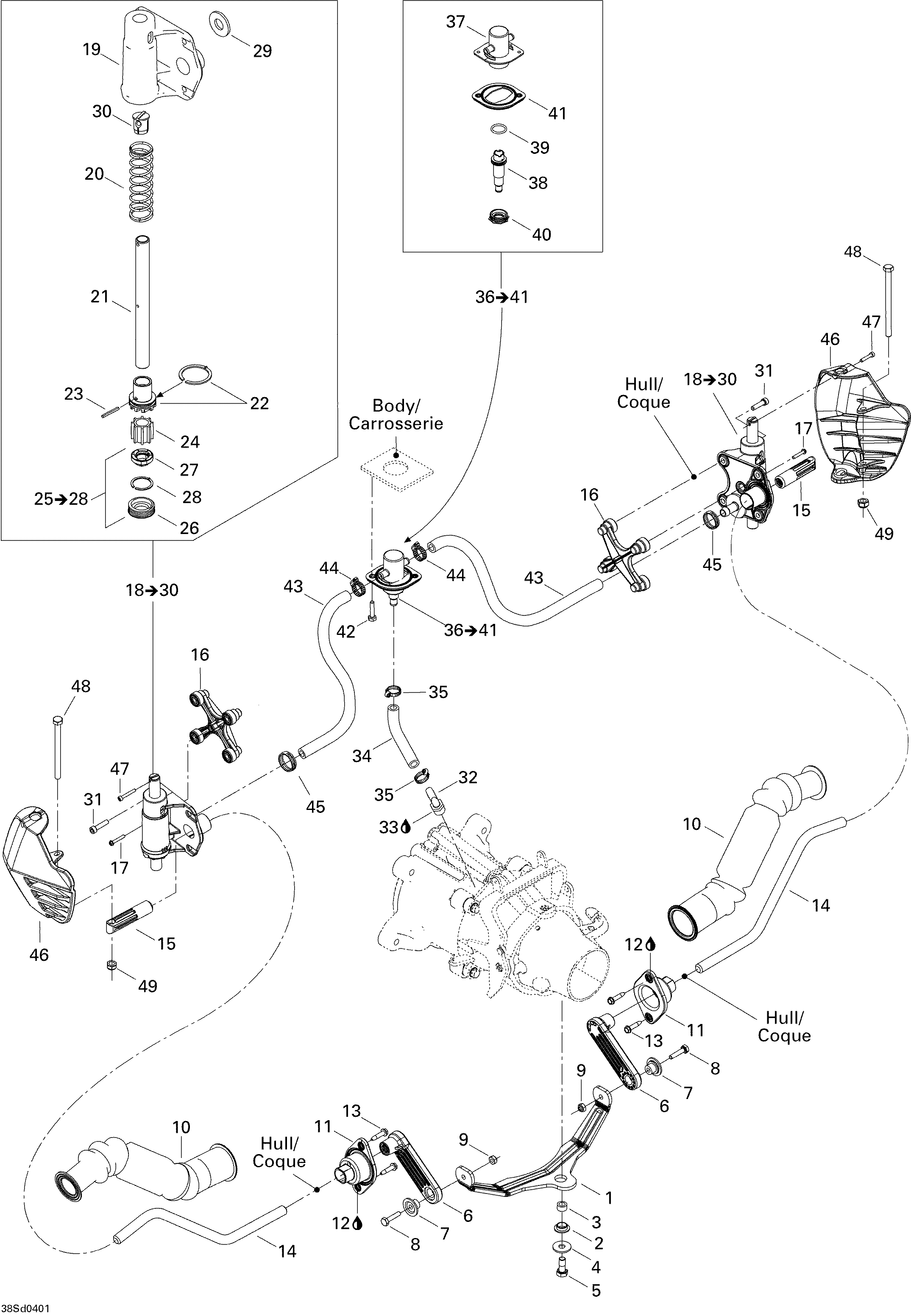

07- Off Power Assisted Steering для BRP GTX 4-TEC, Special Supercharged - 2004
![](/wa-data/public/shop/sheme/bombardier/watercraft/fd53ff00-8577-405d-9fc3-56336ceda32d.png)
-
№АртикулНазвание
-
1277000979 U-leverU-lever
-
2271000321 Venturi bushingVenturi bushing
-
3277000980 BushingBushing
-
4234082600 Flat washer M8Flat washer M8
-
5250000150 Hex. screw M8 x 20 (scotch grip)Hex. screw M8 x 20 (scotch grip)
-
6277000978 LeverLever
-
7293900042 Flanged bushingFlanged bushing
-
8207162560 Hex. screw M6 x 25Hex. screw M6 x 25
-
9232561600 Hex. elastic nut M6Hex. elastic nut M6
-
10277001018 Seal tubeSeal tube
-
11277001164 Rod grommetRod grommet
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13211000023 Hex. flanged plastite screw #10 x 7/8''Hex. flanged plastite screw #10 x 7/8''
-
14277000976 L.H. tie rodL.H. tie rod
-
277001063 R.H. tie rodR.H. tie rod
-
15277000998 Stabilizing fittingStabilizing fitting
-
16277001177 Support Plate Ass'YSupport Plate Ass'Y
-
17241142560 Hex. flanged screw K40 x 25Hex. flanged screw K40 x 25
-
19277001138 L.H. cylinder supportL.H. cylinder support
-
277001142 R.H. cylinder supportR.H. cylinder support
-
20277000962 RingRing
-
21277001091 Rod pivotRod pivot
-
22277001080 Piston ass'yPiston ass'y
-
23250400014 Spring pin 3 x 20Spring pin 3 x 20
-
24277001168 SpacerSpacer
-
25265000008 Cover ass'y. Includes 25 to 28Cover ass'y. Includes 25 to 28
-
26265000009 CoverCover
-
27277000985 Wear RingWear Ring
-
28277000986 Split RingSplit Ring
-
29293250119 L.H. sealL.H. seal
-
30277001185 InsertInsert
-
31205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
32271001298 Elbow 90° ass'yElbow 90° ass'y
-
33293800018 Loctite 592, pipie sealant, 50 mlLoctite 592, pipie sealant, 50 ml
-
34276000101 HoseHose
-
35293650080 Norma clampNorma clamp
-
36277001178 Valve ass'y. Includes 36 to 40Valve ass'y. Includes 36 to 40
-
37277000999 Valve HousingValve Housing
-
39414542700 O-ringO-ring
-
40265000009 CoverCover
-
41293250144 SealSeal
-
42211000023 Hex. flanged plastite screw #10 x 7/8''Hex. flanged plastite screw #10 x 7/8''
-
43276000001 Hose 12.5 mmHose 12.5 mm
-
44293650130 Tridon clampTridon clamp
-
45293650123 Oetiker clampOetiker clamp
-
46277001143 L.H. side vaneL.H. side vane
-
277001144 R.H. side vaneR.H. side vane
-
47205042560 Socket head screw M4 x 25Socket head screw M4 x 25
-
48250000077 Hex. screw M8 x 110Hex. screw M8 x 110
-
49232581600 Hex. elastic nut M8Hex. elastic nut M8
