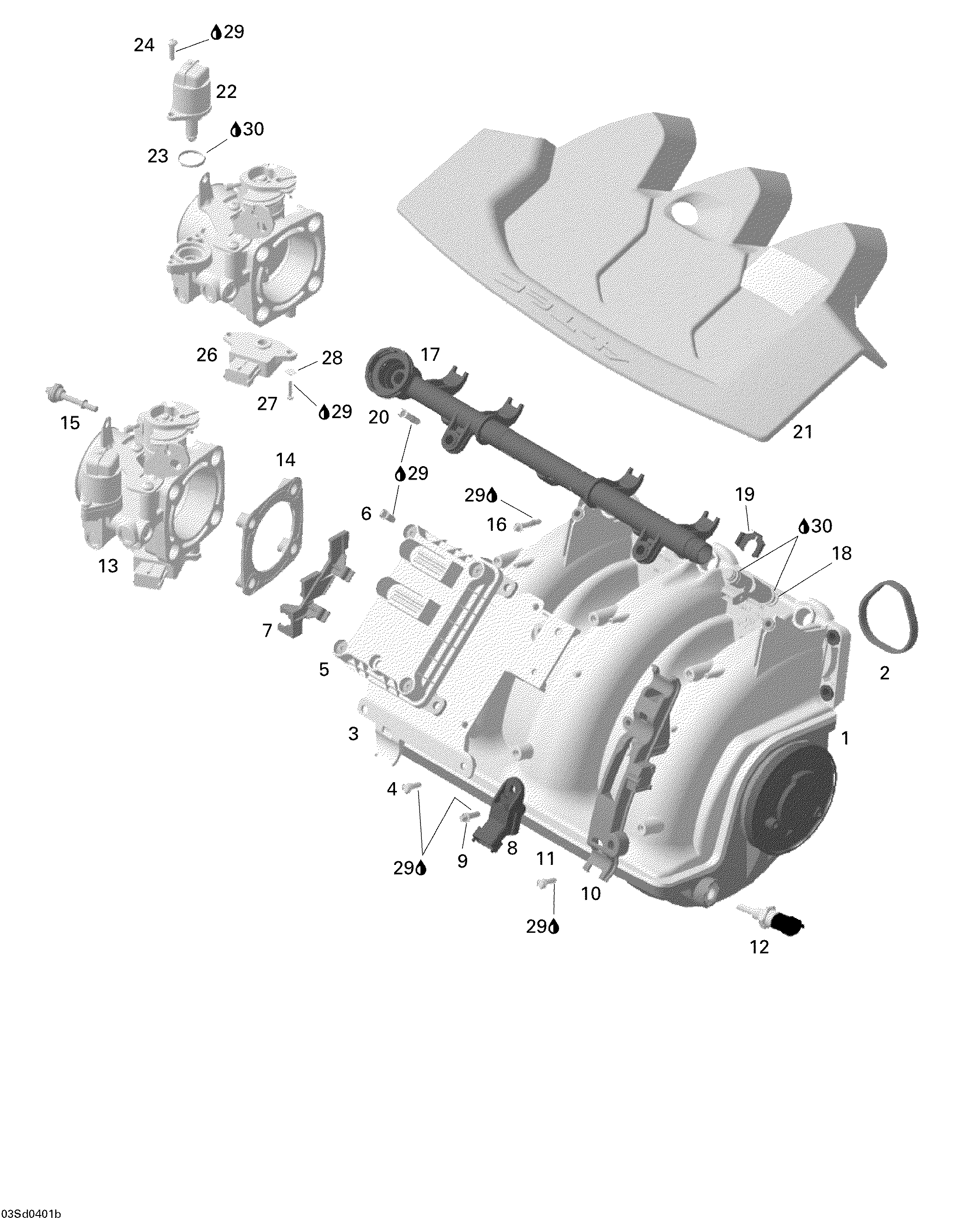

02- Air Intake Manifold для BRP GTX 4-TEC, Special Supercharged - 2004
-
№АртикулНазвание
-
1420867950 Air intake manifoldAir intake manifold
-
2420950740 GasketGasket
-
3420851520 Base plateBase plate
-
4420641048 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
5420664562 Electronic control unitElectronic control unit
-
6420641583 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
7420660400 Connector bracketConnector bracket
-
8420274057 Pressure sensorPressure sensor
-
9420641048 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
10420660410 Wiring harness supportWiring harness support
-
11420641583 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
12420222425 Temperature sensorTemperature sensor
-
13420889023 Throttle bodyThrottle body
-
14420950792 Rubber gasketRubber gasket
-
15420641268 Torx flanged screw M6 x 30Torx flanged screw M6 x 30
-
16420641238 Torx flanged screw M6 x 25Torx flanged screw M6 x 25
-
17420874391 Fuel rail ass'yFuel rail ass'y
-
18420874520 Fuel injectorFuel injector
-
19420851530 Injector clipInjector clip
-
20420641238 Torx flanged screw M6 x 25Torx flanged screw M6 x 25
-
21420660173 Stick coil coverStick coil cover
-
22420963050 Idle bypass valveIdle bypass valve
-
23420631780 O-ringO-ring
-
24420440911 ScrewScrew
-
25420845710 Snap ring (not shown)Snap ring (not shown)
-
26270000251 Position SensorPosition Sensor
-
27208641660 ScrewScrew
-
28234042600 WasherWasher
-
29219700346 Engine Oil 4 Strokes, 10W40, 12 x 1 LiterEngine Oil 4 Strokes, 10W40, 12 x 1 Liter
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
