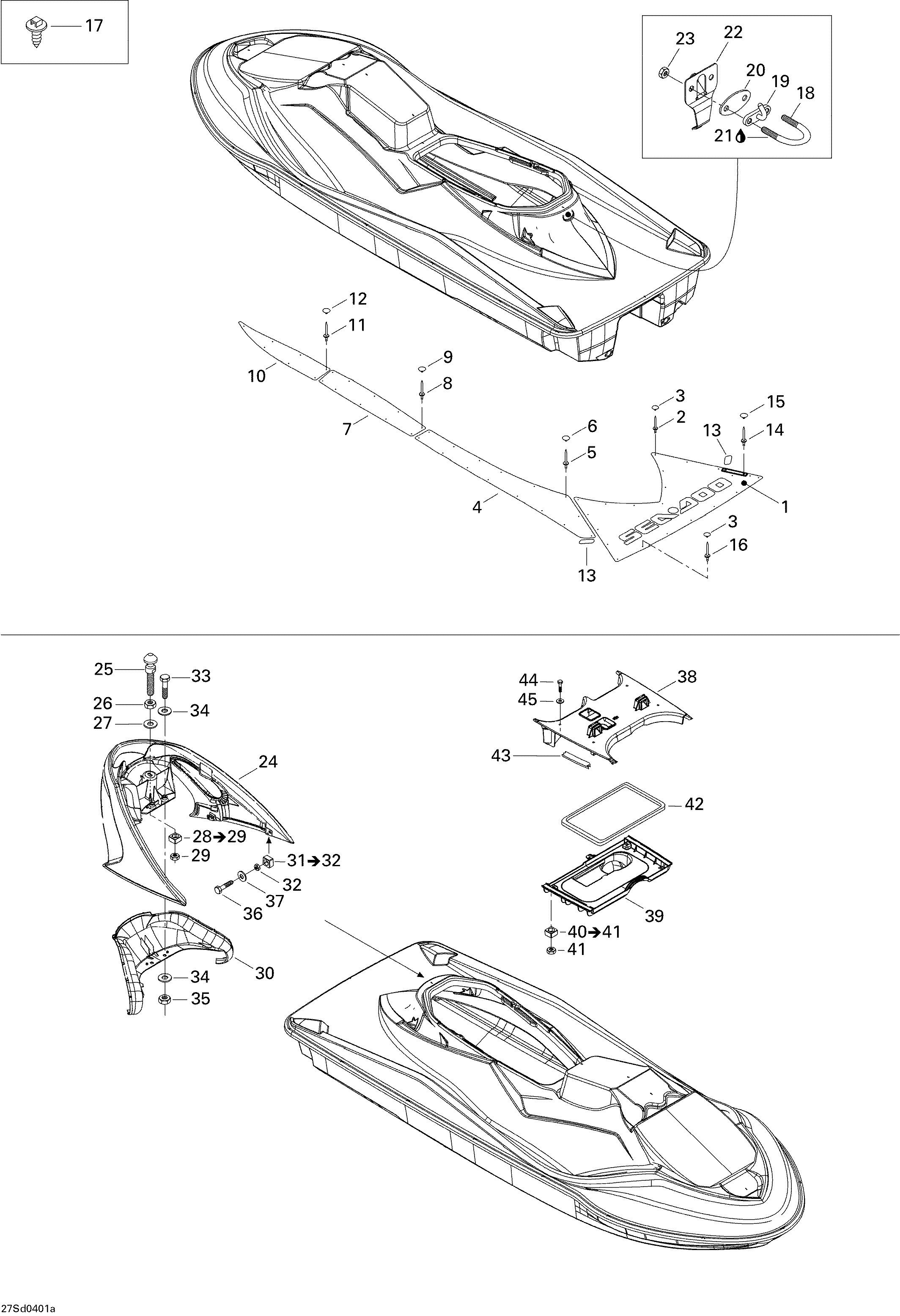

09- Body 1 для BRP GTX 4-TEC, Special Supercharged - 2004
![](/wa-data/public/shop/sheme/bombardier/watercraft/91e95499-e17d-4fee-ad67-5ecab9d42464.png)
-
№АртикулНазвание
-
1291001905 Rear carpet (black)Rear carpet (black)
-
2293150036 Pop rivet 1/8''Pop rivet 1/8''
-
3293000014 Snap cap (black)Snap cap (black)
-
4291001906 R.H. center rear carpet (black)R.H. center rear carpet (black)
-
291001907 L.H. center rear carpet (black)L.H. center rear carpet (black)
-
5293150036 Pop rivet 1/8''Pop rivet 1/8''
-
6293000014 Snap cap (black)Snap cap (black)
-
7291001908 R.H. center front carpet (black)R.H. center front carpet (black)
-
291001909 L.H. center front carpet (black)L.H. center front carpet (black)
-
8293150036 Pop rivet 1/8''Pop rivet 1/8''
-
9293000014 Snap cap (black)Snap cap (black)
-
10291001910 R.H. front carpet (black)R.H. front carpet (black)
-
291001911 L.H. front carpet (black)L.H. front carpet (black)
-
11293150036 Pop rivet 1/8''Pop rivet 1/8''
-
12293000014 Snap cap (black)Snap cap (black)
-
13291001758 R.H. anti-skidR.H. anti-skid
-
291001759 L.H. anti-skidL.H. anti-skid
-
14293150016 Pop rivet 1/8''Pop rivet 1/8''
-
15293000014 Snap cap (black)Snap cap (black)
-
16293150015 Pop rivet 1/8''Pop rivet 1/8''
-
17293730018 Mount dartMount dart
-
18292000011 U-clampU-clamp
-
19291001232 HookHook
-
20291001386 Finition plate (black)Finition plate (black)
-
21296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
22291001747 Retainer plateRetainer plate
-
23232581600 Hex. elastic nut M8Hex. elastic nut M8
-
24269000722 Grab handle (black)Grab handle (black)
-
25291000945 Seat studSeat stud
-
26232100600 Hex. nut M10Hex. nut M10
-
27234002600 Flat washer M10Flat washer M10
-
28271000598 Nut housing ass'y. Includes 28 to 29Nut housing ass'y. Includes 28 to 29
-
29232501600 Elastic stop nut M10Elastic stop nut M10
-
30269000749 Handle cover (black)Handle cover (black)
-
31269500725 Nut housing ass'y. Includes 31 to 32Nut housing ass'y. Includes 31 to 32
-
32232561600 Hex. elastic nut M6Hex. elastic nut M6
-
33207084560 Hex. screw M8 x 45Hex. screw M8 x 45
-
34234081600 Flat washer M8Flat washer M8
-
35232581600 Hex. elastic nut M8Hex. elastic nut M8
-
36207162560 Hex. screw M6 x 25Hex. screw M6 x 25
-
37234062600 Flat washer M6Flat washer M6
-
38291001602 Upper bridge (black)Upper bridge (black)
-
39291001599 Lower bridge (black)Lower bridge (black)
-
40269501166 Nut housing ass'y. Includes 40 to 41Nut housing ass'y. Includes 40 to 41
-
41232561200 Elastic stop nut M6Elastic stop nut M6
-
42293200090 GasketGasket
-
43293250008 GasketGasket
-
44207167560 Hex. screw M6 x 75Hex. screw M6 x 75
-
45234062600 Flat washer M6Flat washer M6
