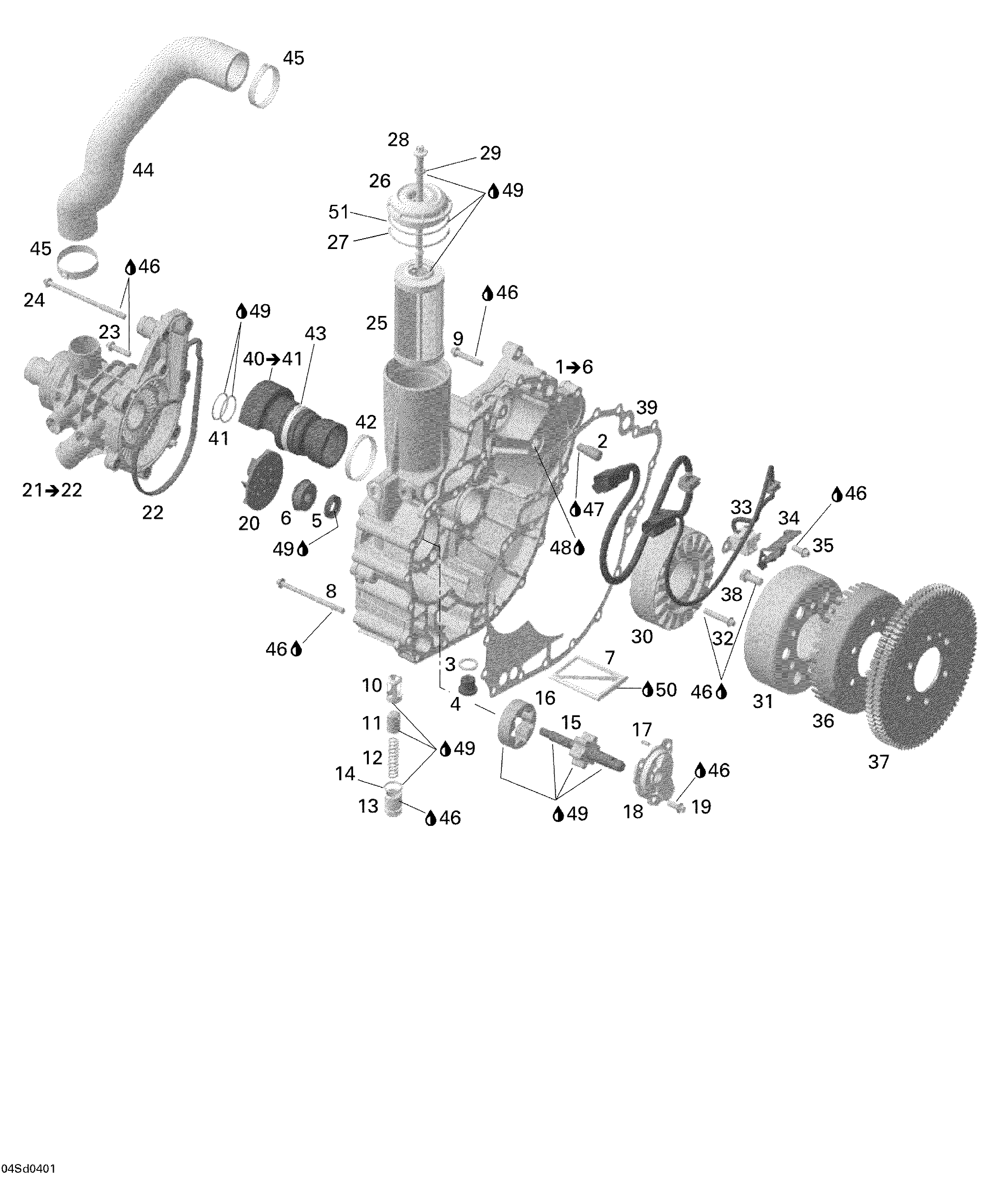

03- PTO Cover And Magneto для BRP GTX 4-TEC, Special Supercharged - 2004
-
№АртикулНазвание
-
1420811579 Timing/drive cover ass'y. Includes 1 to 6Timing/drive cover ass'y. Includes 1 to 6
-
2420856010 Spray nozzleSpray nozzle
-
3420430623 Gasket RingGasket Ring
-
4420240233 Plug screw M16Plug screw M16
-
5420650310 Oil sealOil seal
-
6420650370 Rotary SealRotary Seal
-
7420956950 Oil SieveOil Sieve
-
8420641228 Torx flanged screw M6 x 85Torx flanged screw M6 x 85
-
9420641258 Torx flanged screw M6 x 35Torx flanged screw M6 x 35
-
10420256605 Valve seat sleeveValve seat sleeve
-
11420256630 Piston valvePiston valve
-
12420939210 Compression SpringCompression Spring
-
13420641050 Plug screw M20 x 1.5Plug screw M20 x 1.5
-
14420230890 O-ringO-ring
-
15420837472 Oil pump shaft ass'yOil pump shaft ass'y
-
16420956675 Oil Pump RotorOil Pump Rotor
-
17420929070 Needle pinNeedle pin
-
18420811590 Oil pump coverOil pump cover
-
19420641048 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
20420922801 ImpellerImpeller
-
21420922685 Water pump housingWater pump housing
-
22420950840 Gasket. Includes 21 to 22Gasket. Includes 21 to 22
-
23420641238 Torx flanged screw M6 x 25Torx flanged screw M6 x 25
-
24420641338 Torx Flanged Screw M6 X 105Torx Flanged Screw M6 X 105
-
25420956741 Oil FilterOil Filter
-
26420610328 Oil Filter CoverOil Filter Cover
-
27420230920 O-ringO-ring
-
28420641100 Screw M8 x 140.5Screw M8 x 140.5
-
29420950860 O-RingO-Ring
-
30420889720 Stator ass'yStator ass'y
-
31420889710 Magneto flywheel ass'yMagneto flywheel ass'y
-
32420641258 Torx flanged screw M6 x 35Torx flanged screw M6 x 35
-
33420664140 Crankshaft sensorCrankshaft sensor
-
34420926300 Retaining plateRetaining plate
-
35420641048 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
36420664080 Pick up gear 36 teethPick up gear 36 teeth
-
37420834485 Double Gear Starter 86 TDouble Gear Starter 86 T
-
38295501043 1503-4 TEC Magneto Installation Procedure Kit. 6 Bolts Package. Ref. to Instr. Sheet 2192005021503-4 TEC Magneto Installation Procedure Kit. 6 Bolts Package. Ref. to Instr. Sheet 219200502
-
39420931130 GasketGasket
-
40420832648 Ball bearing with bellows. Includes 40 to 41Ball bearing with bellows. Includes 40 to 41
-
41420631610 O-ringO-ring
-
42420851653 Gear clampGear clamp
-
43420853023 Gear clampGear clamp
-
44420922821 Formed hoseFormed hose
-
45420851683 Gear clampGear clamp
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
47420711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
48413707000 Molykote 111Molykote 111
-
49219700346 Engine oil 4 strokes, 10W40, 12 x 1 literEngine oil 4 strokes, 10W40, 12 x 1 liter
-
50293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
51420850500 O-RingO-Ring
