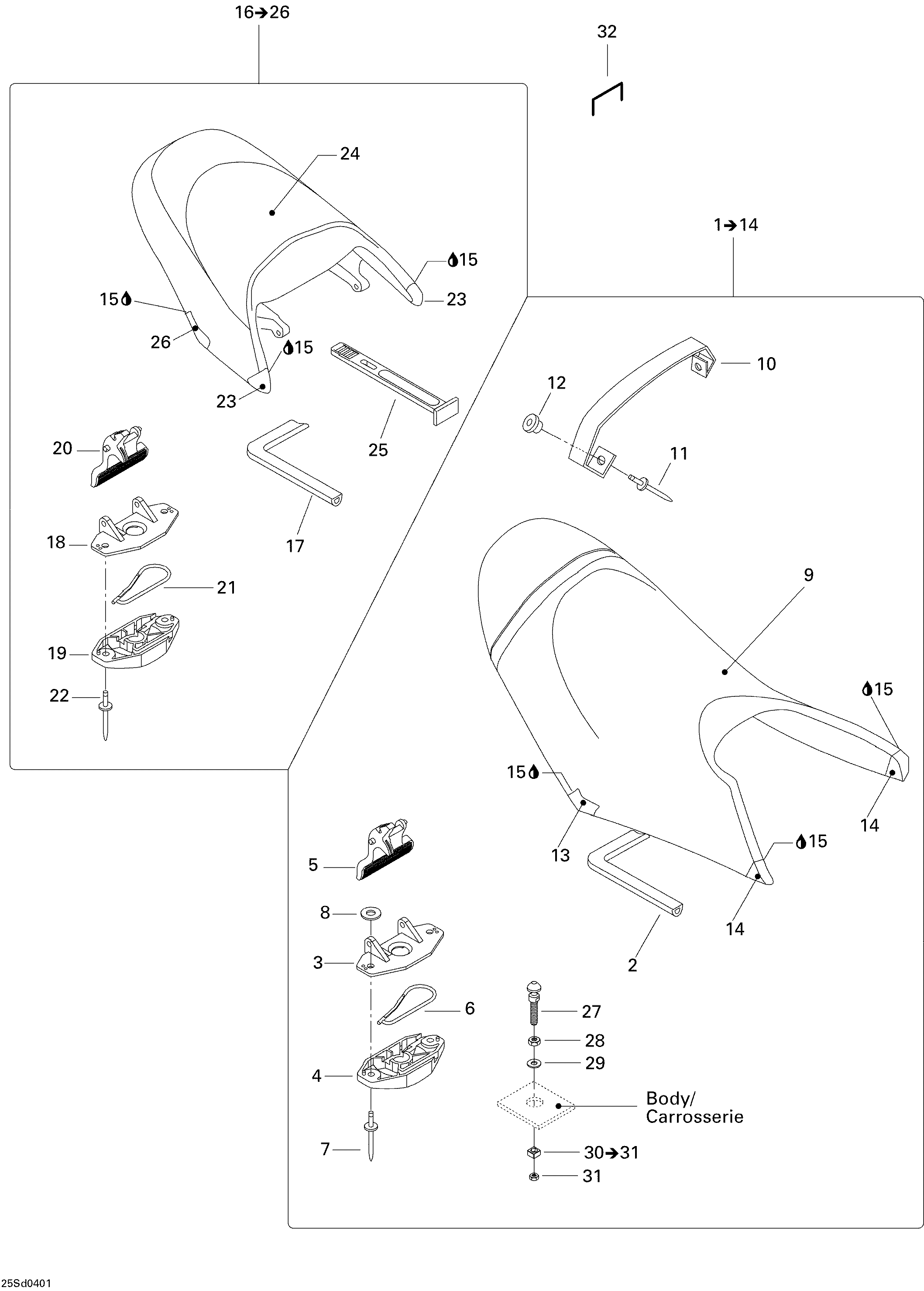

09- Seat для BRP GTX 4-TEC, Special Supercharged - 2004
-
№АртикулНазвание
-
1269001021 Front seat ass'y (silver). Includes 1 to 14Front seat ass'y (silver). Includes 1 to 14
-
2293200062 SealSeal
-
3269700076 Latch coverLatch cover
-
4269000015 Latch baseLatch base
-
5269700077 Latch leverLatch lever
-
6269700017 Latch springLatch spring
-
7293150074 Pop rivet 1/4''Pop rivet 1/4''
-
8234061600 Flat washer M6Flat washer M6
-
9269001026 Front seat cover and foam (silver)Front seat cover and foam (silver)
-
10269000962 Seat strap (silver)Seat strap (silver)
-
11293150078 Pop rivet 1/4''Pop rivet 1/4''
-
12293720067 GrommetGrommet
-
13269000963 R.H. seat corner (silver)R.H. seat corner (silver)
-
269000964 L.H. seat corner (silver)L.H. seat corner (silver)
-
14269000965 R.H. front seat corner (silver)R.H. front seat corner (silver)
-
269000966 L.H. front seat corner (silver)L.H. front seat corner (silver)
-
15413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
-
16269001022 Rear seat ass'y (silver). Includes 16 to 26Rear seat ass'y (silver). Includes 16 to 26
-
17293200062 SealSeal
-
18269700076 Latch coverLatch cover
-
19269000015 Latch baseLatch base
-
20269700077 Latch leverLatch lever
-
21269700017 Latch springLatch spring
-
22293150074 Pop rivet 1/4''Pop rivet 1/4''
-
23269000969 R.H. seat corner (silver)R.H. seat corner (silver)
-
269000970 L.H. seat corner (silver)L.H. seat corner (silver)
-
24269001027 Rear seat cover and foam (silver)Rear seat cover and foam (silver)
-
25269500408 StrapStrap
-
26269000971 Seat corner (silver)Seat corner (silver)
-
27291000945 Seat studSeat stud
-
28232100600 Hex. nut M10Hex. nut M10
-
29234002600 Flat washer M10Flat washer M10
-
30271000598 Nut housing ass'y. Includes 30 to 31Nut housing ass'y. Includes 30 to 31
-
31232501600 Elastic stop nut M10Elastic stop nut M10
-
32293730005 StapleStaple
