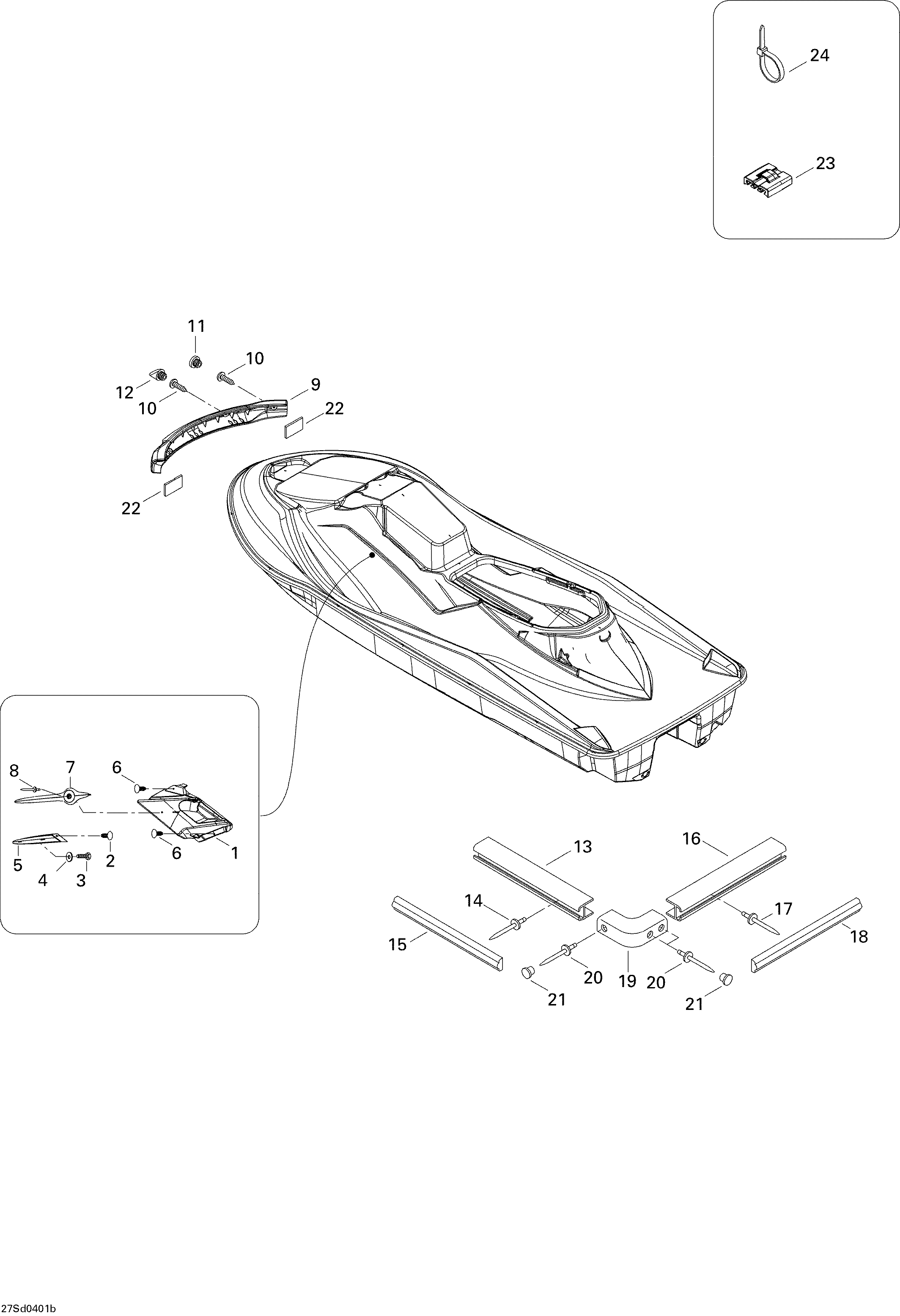

09- Body 2 для BRP GTX 4-TEC, Special Supercharged - 2004
-
№АртикулНазвание
-
1269500931 R.H. Grill (black)R.H. Grill (black)
-
269500932 LH Grill (black)LH Grill (black)
-
2293730010 DartDart
-
3241141660 Hex. flanged screw K40 x 16Hex. flanged screw K40 x 16
-
4234052600 Flat washer M5Flat washer M5
-
5293450223 R.H. insertR.H. insert
-
293450224 LH insertLH insert
-
6293730006 Dart (black)Dart (black)
-
7269500716 Finition plateFinition plate
-
8293150011 Pop rivet 3/16''Pop rivet 3/16''
-
9291001035 Bumper nose (black)Bumper nose (black)
-
10211000037 Phillips plastite screw #10 x 7/8''Phillips plastite screw #10 x 7/8''
-
11291001519 Bumper plug (black)Bumper plug (black)
-
12291001040 Bumper plug (black)Bumper plug (black)
-
13291001609 Side bumper (black)Side bumper (black)
-
14293150005 Pop rivet 3/16''Pop rivet 3/16''
-
15291001840 Side trim Yellow (M-506)Side trim Yellow (M-506)
-
16291001483 Rear bumper (black)Rear bumper (black)
-
17293150005 Pop rivet 3/16''Pop rivet 3/16''
-
18291001537 Rear bumper trim Yellow (M-506)Rear bumper trim Yellow (M-506)
-
19291001505 Bumper corner (black)Bumper corner (black)
-
20293150013 Pop rivet 3/16''Pop rivet 3/16''
-
21291000339 Bumper plug (black)Bumper plug (black)
-
22274001010 Rubber padRubber pad
-
23293750025 Tie-rap mountTie-rap mount
-
24414115200 Tie-rapTie-rap
