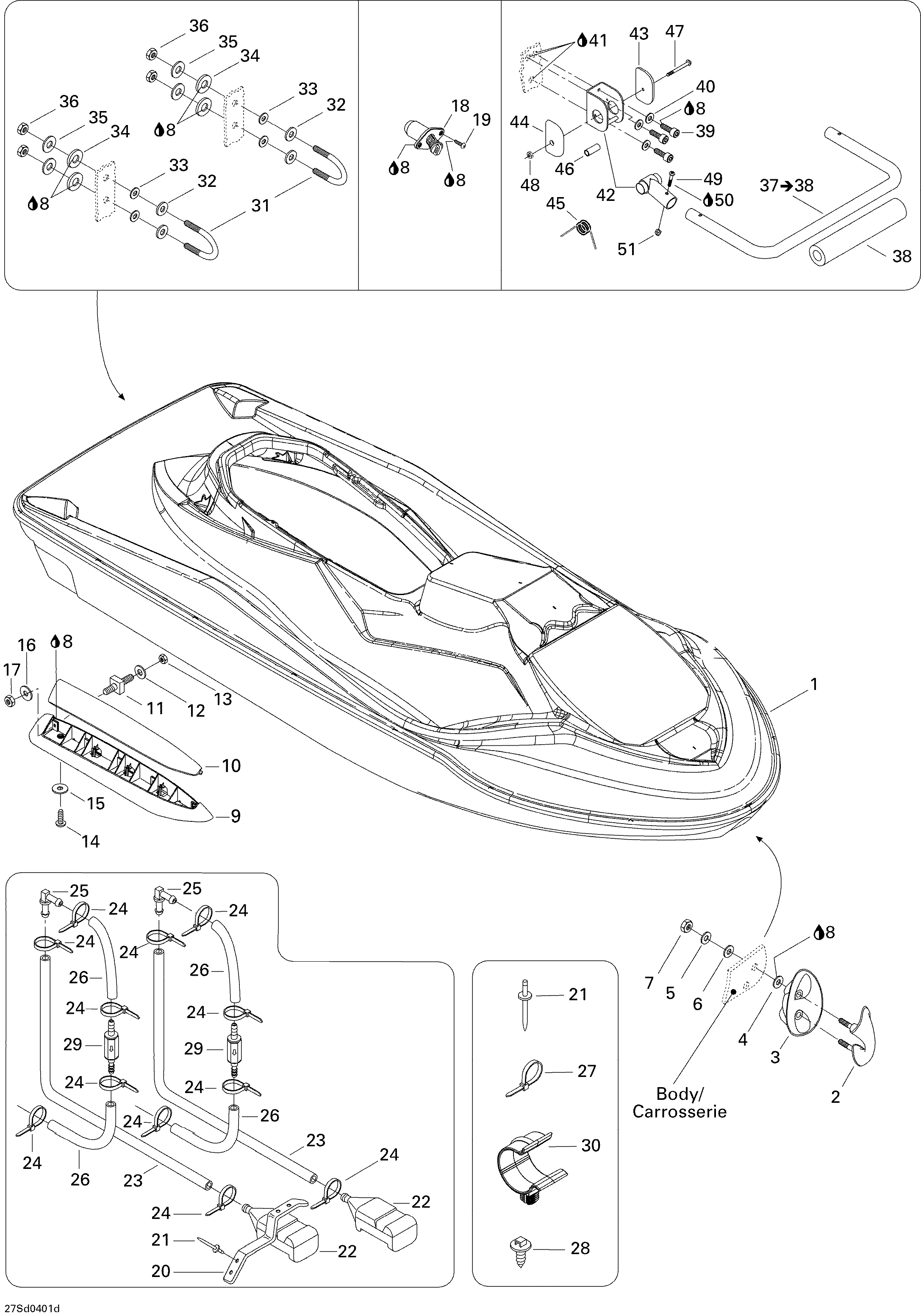

09- Hull для BRP GTX 4-TEC, Special Supercharged - 2004
-
№АртикулНазвание
-
2292000708 Bow-eye (black)Bow-eye (black)
-
292000870 Bow-eye (grey)Bow-eye (grey)
-
3292000872 Shell (grey)Shell (grey)
-
4234081600 Flat washer M8Flat washer M8
-
5250200011 Flat washer M8Flat washer M8
-
6293830037 Rubber washerRubber washer
-
7232581600 Hex. elastic nut M8Hex. elastic nut M8
-
8296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
9292000818 R.H. sponsonR.H. sponson
-
292000816 L.H. sponsonL.H. sponson
-
10292000815 R.H. coverR.H. cover
-
292000817 L.H. coverL.H. cover
-
11293450227 Threaded insertThreaded insert
-
12234062600 Flat washer M6Flat washer M6
-
13232061600 Hex. nut M6Hex. nut M6
-
14211000037 Phillips plastite screw #10 x 7/8''Phillips plastite screw #10 x 7/8''
-
15234051600 Flat washer M5Flat washer M5
-
16234062600 Flat washer M6Flat washer M6
-
17232061600 Hex. nut M6Hex. nut M6
-
18292000685 Drain plug ass'yDrain plug ass'y
-
19211000021 Pan head Phillips screw #10 x 5/8''Pan head Phillips screw #10 x 5/8''
-
20292000398 L.H. spring clipL.H. spring clip
-
21293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
22292000688 Bailer screenBailer screen
-
23275000007 Hose 8 mmHose 8 mm
-
24293750001 Tie-rap 94 mmTie-rap 94 mm
-
25293710057 Elbow fitting 90°Elbow fitting 90°
-
26204550051 Oil Injection Hose 8mmOil Injection Hose 8mm
-
27414115200 Tie-rapTie-rap
-
28293730018 Mount dartMount dart
-
29276000093 Check valveCheck valve
-
30275500526 RetainerRetainer
-
31292000933 U-clampU-clamp
-
32293050001 Flat washerFlat washer
-
33234081100 Flat washer M8Flat washer M8
-
34293830037 Rubber washerRubber washer
-
35250200011 Flat washer M8Flat washer M8
-
36232581600 Hex. elastic nut M8Hex. elastic nut M8
-
37292000778 Stair tube ass'y. Includes 37 to 38Stair tube ass'y. Includes 37 to 38
-
38292000781 Protective sleeveProtective sleeve
-
39250000076 Socket head screw M6 x 25 (scotch grip)Socket head screw M6 x 25 (scotch grip)
-
40234061600 Flat washer M6Flat washer M6
-
41293800066 Sealant, loctite 5900, 300 mlSealant, loctite 5900, 300 ml
-
42292000539 Support ass'ySupport ass'y
-
43292000540 R.H. support capR.H. support cap
-
44292000548 L.H. support capL.H. support cap
-
45292000541 Rewind springRewind spring
-
46292000542 Plastic tubePlastic tube
-
47211000186 Phillips screw 1/4''-20 x 2-1/2''Phillips screw 1/4''-20 x 2-1/2''
-
48212000005 Elastic stop nut 1/4''-20Elastic stop nut 1/4''-20
-
49205063560 Socket head screw M6 x 35Socket head screw M6 x 35
-
50293800060 Loctite 243Loctite 243
-
51232361600 Domed hex. nut M6Domed hex. nut M6
