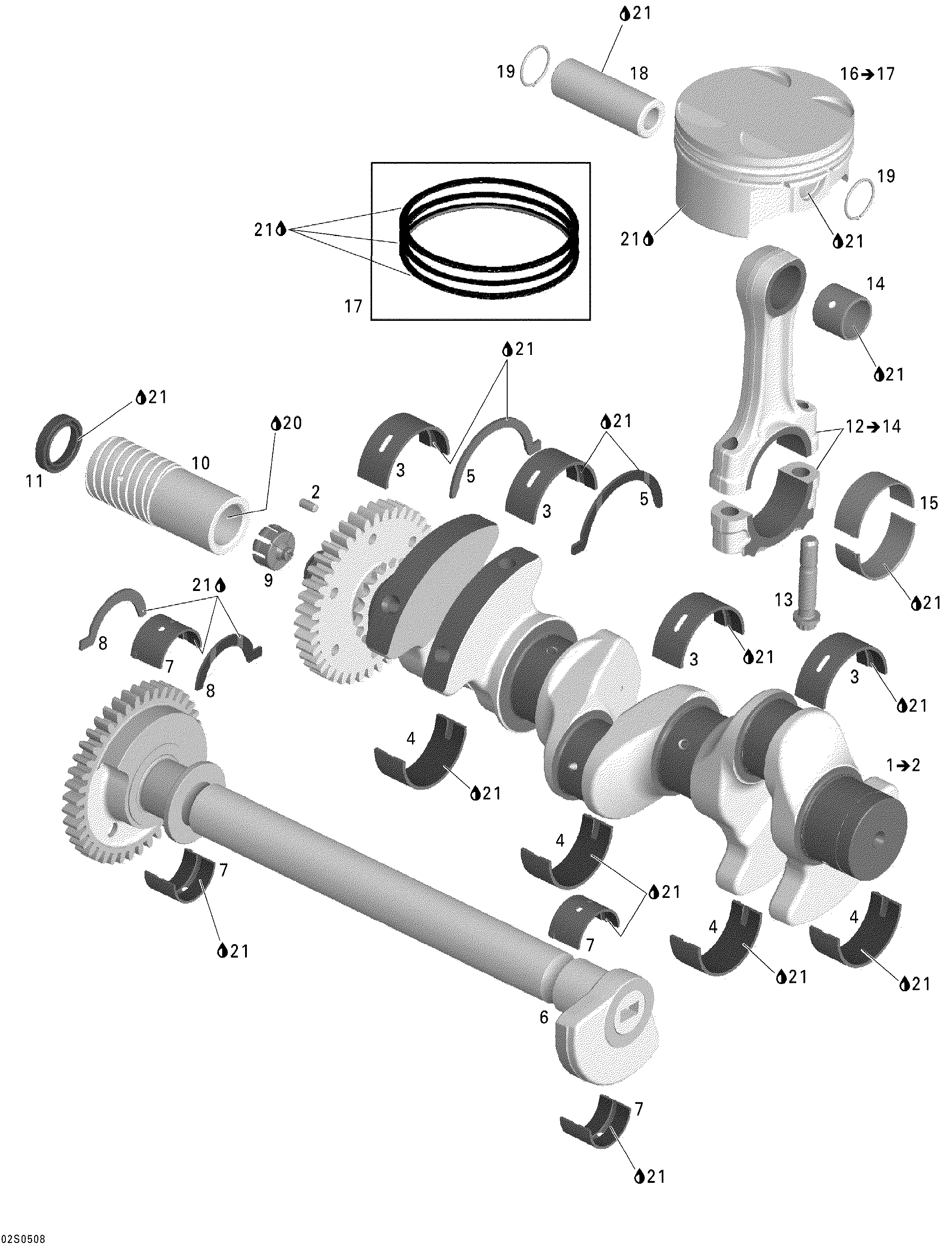

01- Crankshaft, Pistons And Balance Shaft для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1420819078 Crankshaft Ass'y. Includes 1 to 2Crankshaft Ass'y. Includes 1 to 2
-
2420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
3420933455 Plain Bearing HalfPlain Bearing Half
-
4420933465 Plain Bearing HalfPlain Bearing Half
-
5420933475 Ring HalfRing Half
-
6420837555 Balance Shaft Ass'yBalance Shaft Ass'y
-
7420933440 Plain Bearing HalfPlain Bearing Half
-
8420933470 Ring HalfRing Half
-
9420660280 Stop SleeveStop Sleeve
-
10420847952 Output SleeveOutput Sleeve
-
11420630550 Sealing RingSealing Ring
-
12420917515 Connecting Rod Ass'y. Includes 12 to 14Connecting Rod Ass'y. Includes 12 to 14
-
13420640990 Connecting Rod ScrewConnecting Rod Screw
-
14420933510 Bearing SleeveBearing Sleeve
-
15420933520 Half-BearingHalf-Bearing
-
16420890244 Piston Ass'y, 99.94 mm. Includes 16 to 17Piston Ass'y, 99.94 mm. Includes 16 to 17
-
16420890245 Piston Ass'y, Oversize, 100.19 mm. Includes 16 to 17Piston Ass'y, Oversize, 100.19 mm. Includes 16 to 17
-
17420890380 Piston Set Ring, StandardPiston Set Ring, Standard
-
17420890381 Piston Set Ring, OversizePiston Set Ring, Oversize
-
18420216250 Piston PinPiston Pin
-
19420845580 CirclipCirclip
-
20413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
21219700346 Engine Oil 4 Strokes, 10w40, 12 X 1 LEngine Oil 4 Strokes, 10w40, 12 X 1 L
