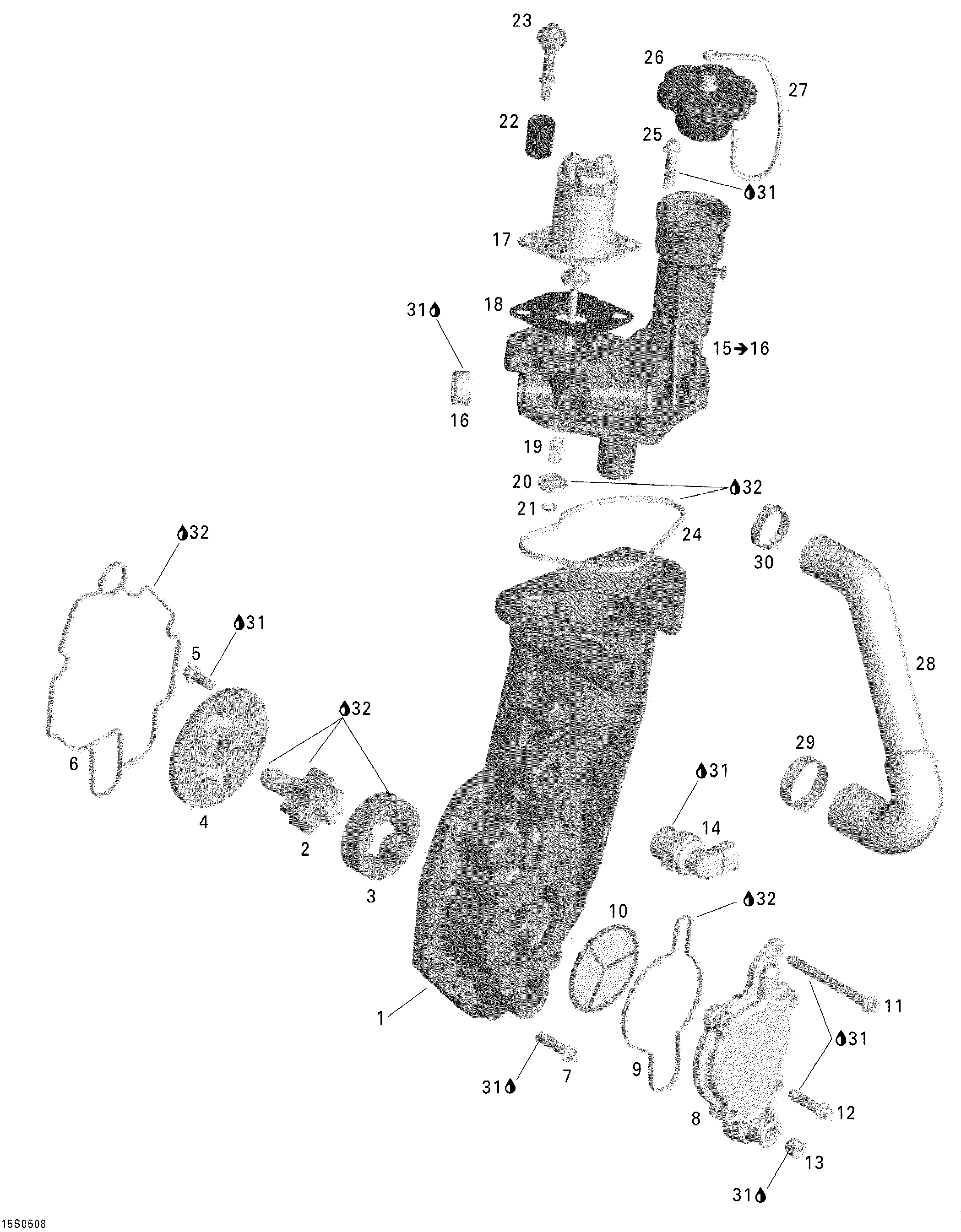

02- Oil Separator для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1420956762 Oil Pump HousingOil Pump Housing
-
2420837543 Pump Shaft Ass'yPump Shaft Ass'y
-
3420956675 Outer Rotor 16 mmOuter Rotor 16 mm
-
4420811850 Oil Pump CoverOil Pump Cover
-
5420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
6420631480 GasketGasket
-
7420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
8420811893 Oil Sieve CoverOil Sieve Cover
-
9420630232 GasketGasket
-
10420256570 Oil SieveOil Sieve
-
11420641518 Torx Flanged Screw M6 X 65Torx Flanged Screw M6 X 65
-
12420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
13420641323 Plug Screw M10Plug Screw M10
-
14420256885 Oil Pressure SwitchOil Pressure Switch
-
15420811967 Oil Separator Cover. Includes 15 to 16Oil Separator Cover. Includes 15 to 16
-
16420641313 Plug Screw M30Plug Screw M30
-
17420956666 Shut Off (Solenoid)Shut Off (Solenoid)
-
18420960820 GasketGasket
-
19420939250 Compression SpringCompression Spring
-
20420856055 Valve DiscValve Disc
-
21420845620 Retaining RingRetaining Ring
-
22420947290 Distance SleeveDistance Sleeve
-
23420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
24420630222 GasketGasket
-
25420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
26420956923 Plug Cover, YellowPlug Cover, Yellow
-
27420660620 Retaining BandRetaining Band
-
28420956975 Formed HoseFormed Hose
-
29420851673 Gear ClampGear Clamp
-
30420851663 Gear ClampGear Clamp
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32219700346 Engine Oil 4 Strokes, 10w40, 12 X 1 LEngine Oil 4 Strokes, 10w40, 12 X 1 L
