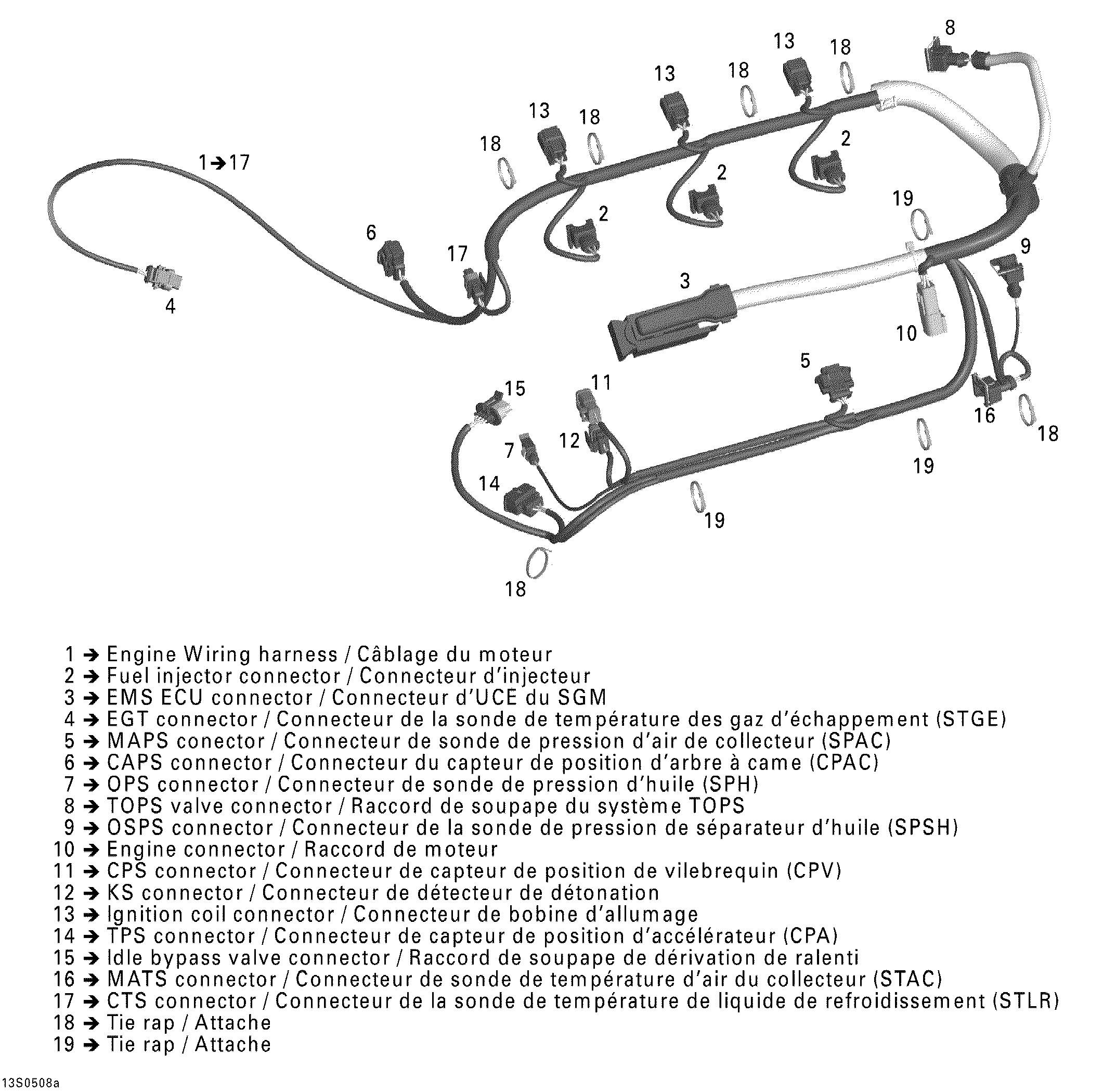

10- Engine Harness для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1420664951 Engine Wiring Harness Ass'y. Includes 1 to 17Engine Wiring Harness Ass'y. Includes 1 to 17
-
2278001003 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
3420664450 Connector HousingConnector Housing
-
5278001829 ConnectorConnector
-
6278001830 ConnectorConnector
-
7278001012 Male Connector, 1 CircuitMale Connector, 1 Circuit
-
8415128500 ConnectorConnector
-
9415128500 ConnectorConnector
-
10278000635 Female Connector, 4 CircuitsFemale Connector, 4 Circuits
-
11278001831 Connector, MagnetoConnector, Magneto
-
12278001005 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
13278001832 Connector, Stick CoilConnector, Stick Coil
-
14278000997 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
15278001833 Connector, Idle Bypass ValveConnector, Idle Bypass Valve
-
16415128500 ConnectorConnector
-
17278001005 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
18420866714 Tie-RapTie-Rap
-
19420866716 Tie-RapTie-Rap
