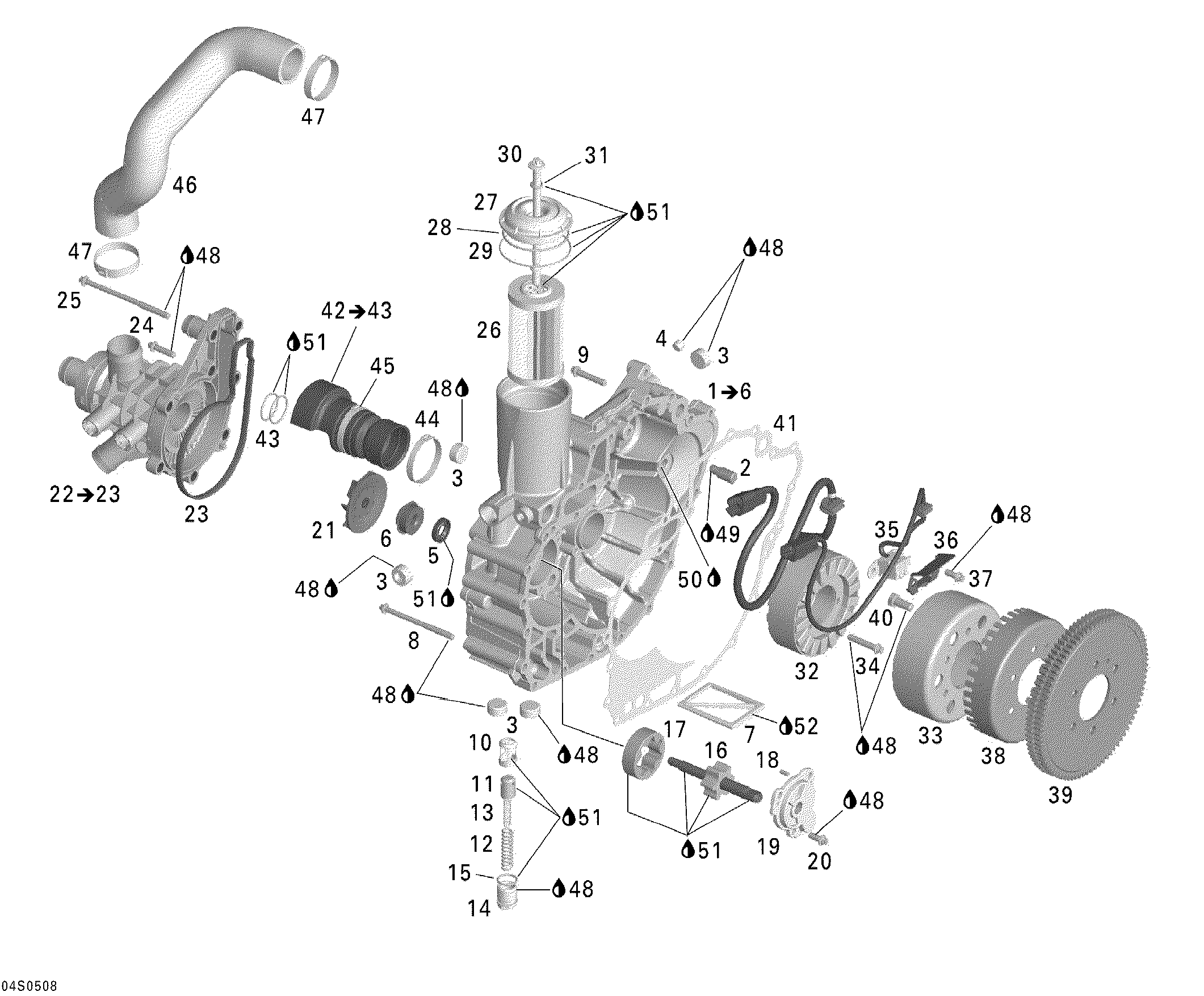

03- PTO Cover And Magneto для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1420811579 Timing/drive Cover Ass'y. Includes 1 to 6Timing/drive Cover Ass'y. Includes 1 to 6
-
2420856012 Spray NozzleSpray Nozzle
-
3420641313 Plug Screw M30Plug Screw M30
-
4420641323 Plug Screw M10Plug Screw M10
-
5420650310 Oil SealOil Seal
-
6420650370 Rotary SealRotary Seal
-
7420956950 Oil SieveOil Sieve
-
8420641228 Torx Flanged Screw M6 X 85Torx Flanged Screw M6 X 85
-
9420641258 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
10420256605 Valve Seat SleeveValve Seat Sleeve
-
11420256630 Piston ValvePiston Valve
-
12420939210 Compression SpringCompression Spring
-
13420939400 Compression SpringCompression Spring
-
14420641051 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
15420230890 O-RingO-Ring
-
16420837472 Oil Pump Shaft Ass'yOil Pump Shaft Ass'y
-
17420956675 Outer Rotor 16 mmOuter Rotor 16 mm
-
18420929070 Needle PinNeedle Pin
-
19420811590 Oil Pump CoverOil Pump Cover
-
20420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
21420922801 ImpellerImpeller
-
22420922686 Water Pump Housing Ass'y. Includes 22 to 23Water Pump Housing Ass'y. Includes 22 to 23
-
23420950840 GasketGasket
-
24420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
25420641338 Torx Flanged Screw M6 X 105Torx Flanged Screw M6 X 105
-
26420956741 Oil FilterOil Filter
-
27420610328 Oil Filter CoverOil Filter Cover
-
28420850500 O-RingO-Ring
-
29420230920 O-RingO-Ring
-
30420641105 Hex Screw M8 X 140.5Hex Screw M8 X 140.5
-
31420950860 O-RingO-Ring
-
32420889720 Stator Ass'yStator Ass'y
-
33420889710 Magneto Flywheel Ass'yMagneto Flywheel Ass'y
-
34420641258 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
35420664140 Crankshaft SensorCrankshaft Sensor
-
36420926300 Retaining PlateRetaining Plate
-
37420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
38420664080 Pick-up Gear, 36 TeethPick-up Gear, 36 Teeth
-
39420834486 Starter Double Gear 87/86 TeethStarter Double Gear 87/86 Teeth
-
40295501043 1503-4TEC Magneto Installation Procedure Kit. 6 Bolts Kit. Ref. to Instr. Sheet 2192005021503-4TEC Magneto Installation Procedure Kit. 6 Bolts Kit. Ref. to Instr. Sheet 219200502
-
41420931130 GasketGasket
-
42420832648 Ball Bearing With Bellows. Includes 42 to 43Ball Bearing With Bellows. Includes 42 to 43
-
43420631610 O-RingO-Ring
-
44420851653 Gear ClampGear Clamp
-
45420853023 Gear ClampGear Clamp
-
46420922821 Formed HoseFormed Hose
-
47420851683 Gear ClampGear Clamp
-
48293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
49413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
50413707000 Molykote 111, 150 GMolykote 111, 150 G
-
51219700346 Engine Oil 4 Strokes, 10w40, 12 X 1 LEngine Oil 4 Strokes, 10w40, 12 X 1 L
-
52293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
