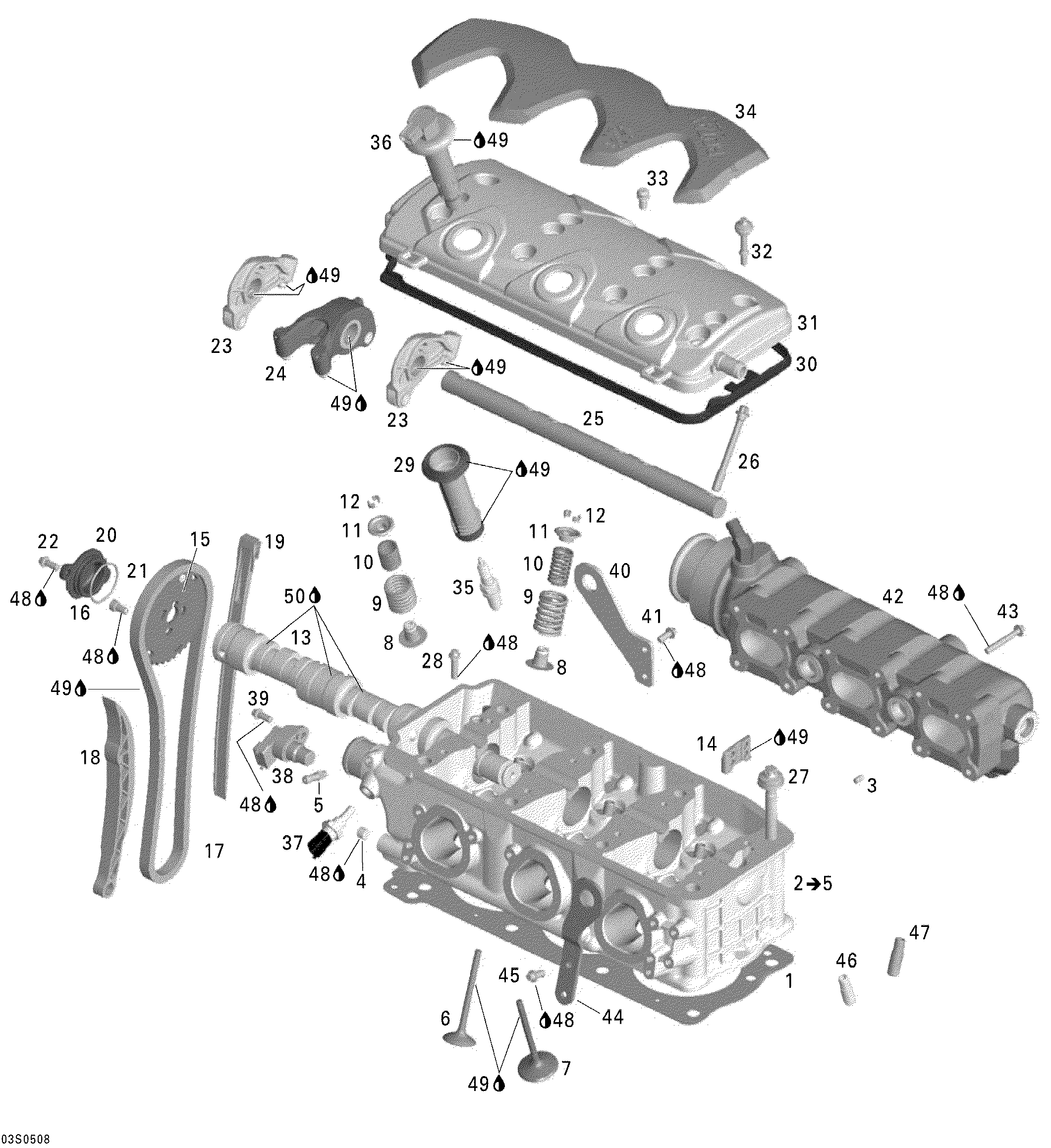

01- Cylinder Head для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1420950770 Cylinder Head GasketCylinder Head Gasket
-
2420613976 Cylinder Head Assembly 1503. Includes 2 to 5Cylinder Head Assembly 1503. Includes 2 to 5
-
3420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
4420641323 Plug Screw M10Plug Screw M10
-
5420924720 Hose NippleHose Nipple
-
6295501047 Exhaust Valve Kit. 6 Valves per package. Always replace complete valve set.Exhaust Valve Kit. 6 Valves per package. Always replace complete valve set.
-
7420254290 Intake Valve, 38 mmIntake Valve, 38 mm
-
8420630200 Valve StemValve Stem
-
9420238180 Valve SpringValve Spring
-
10420838280 Valve Inside SpringValve Inside Spring
-
11420254281 Valve Spring RetainerValve Spring Retainer
-
12420253645 Cotter ValveCotter Valve
-
13420837629 CamshaftCamshaft
-
14420851692 Camshaft GuideCamshaft Guide
-
15420254307 Timing Gear 38 TeethTiming Gear 38 Teeth
-
16420841339 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
17420898040 Camshaft ChainCamshaft Chain
-
18420236540 Chain Tension GuideChain Tension Guide
-
19420236500 Chain GuideChain Guide
-
20420660100 Camshaft CoverCamshaft Cover
-
21420950870 O-RingO-Ring
-
22420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
23420254328 Rocker Arm, ExhaustRocker Arm, Exhaust
-
24420254315 Rocker Arm, InnerRocker Arm, Inner
-
25420854592 Rocker Arm, ShaftRocker Arm, Shaft
-
26420641080 Torx Screw M8 X 72Torx Screw M8 X 72
-
27420641110 Torx Flanged Screw M11 X 147Torx Flanged Screw M11 X 147
-
28420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
29420851750 Spark Plug TubeSpark Plug Tube
-
30420950820 Valve Cover GasketValve Cover Gasket
-
31420811581 Valve CoverValve Cover
-
32420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
33420641488 Torx Screw M6 X 10Torx Screw M6 X 10
-
34420660164 Valve CoverValve Cover
-
35707000246 Spark Plug NGK Dcp-R8ESpark Plug NGK Dcp-R8E
-
36420664020 Ignition CoilIgnition Coil
-
37420222425 Temperature SensorTemperature Sensor
-
38420664040 Camshaft SensorCamshaft Sensor
-
39420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
40420851616 Transport Bracket PTOTransport Bracket PTO
-
41420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
42420973699 Exhaust ManifoldExhaust Manifold
-
43420641198 Torx Flanged Screw M6 X 45Torx Flanged Screw M6 X 45
-
44420851612 Transport Bracket FrontTransport Bracket Front
-
45420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
46420253924 Valve GuideValve Guide
-
47420253924 Valve GuideValve Guide
-
48293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
49219700346 Engine Oil 4 Strokes, 10w40, 12 X 1 LEngine Oil 4 Strokes, 10w40, 12 X 1 L
-
50293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
