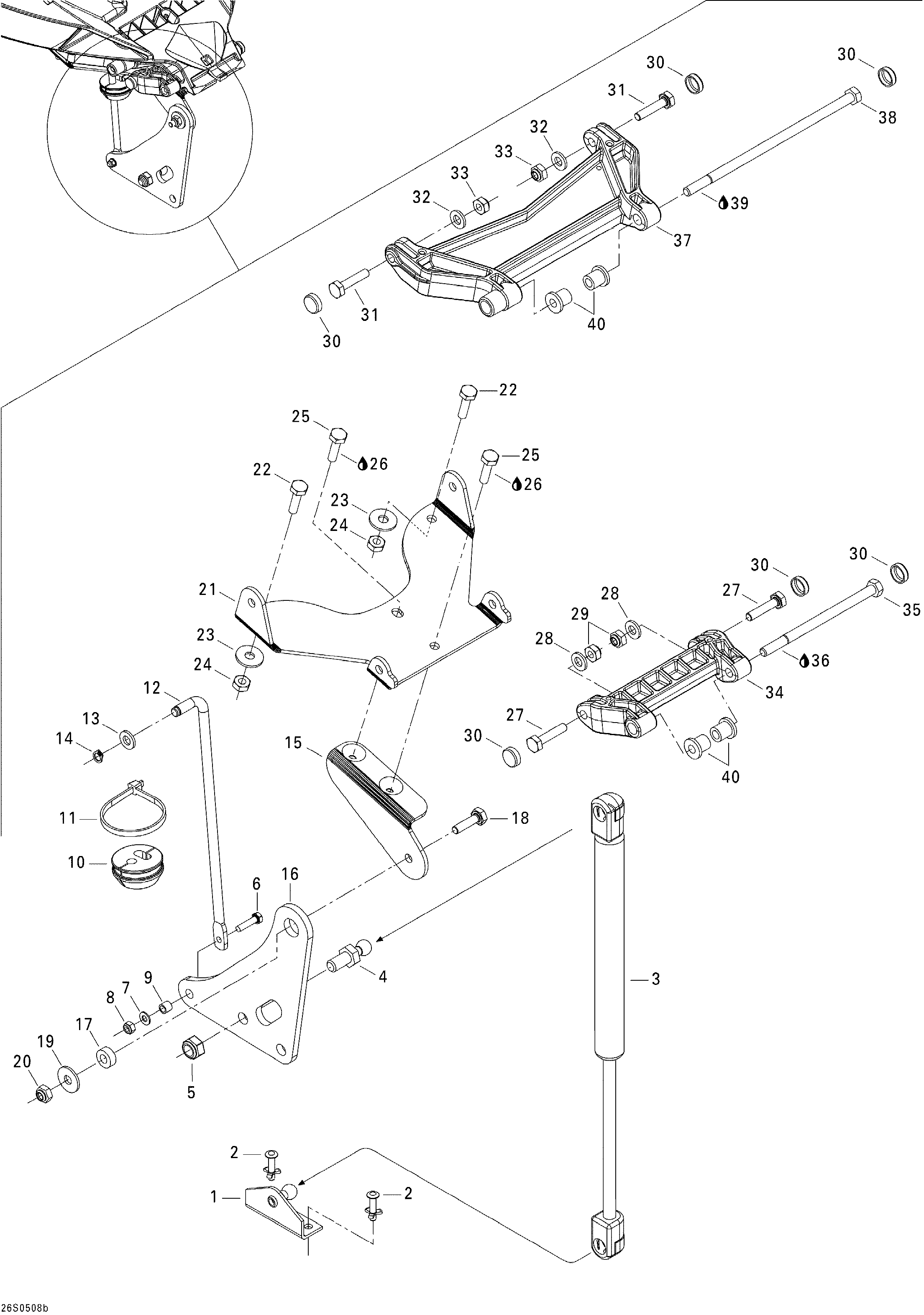

09- Front Storage Compartment 2 для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1291002124 Shock SupportShock Support
-
2293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
3269500937 Gaz ShockGaz Shock
-
4250300016 Ball StudBall Stud
-
5232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
6207141660 Hex Screw M4 X 16Hex Screw M4 X 16
-
7234041600 Flat Washer 4 mmFlat Washer 4 mm
-
8232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
9269501130 SpacerSpacer
-
10293720070 Cable GrommetCable Grommet
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12269500842 RodRod
-
13234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
14293370005 Circlip 6 mmCirclip 6 mm
-
15269500846 Support LeverSupport Lever
-
16269501132 LeverLever
-
17269501172 SpacerSpacer
-
18207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
19234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
20232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
21269500934 Pivot SupportPivot Support
-
22207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
23234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
24232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
25207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27211000022 Hex Special Screw M6 X 25Hex Special Screw M6 X 25
-
28234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
29232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
30414436900 Snap Cap, BlackSnap Cap, Black
-
31211000022 Hex Special Screw M6 X 25Hex Special Screw M6 X 25
-
32234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
33232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
34269500935 Front ArmFront Arm
-
35230060060 Hex Screw M6 X 100Hex Screw M6 X 100
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37269501012 Rear ArmRear Arm
-
38230065060 Hex Screw M6 X 150Hex Screw M6 X 150
-
39293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
40269500706 SleeveSleeve
