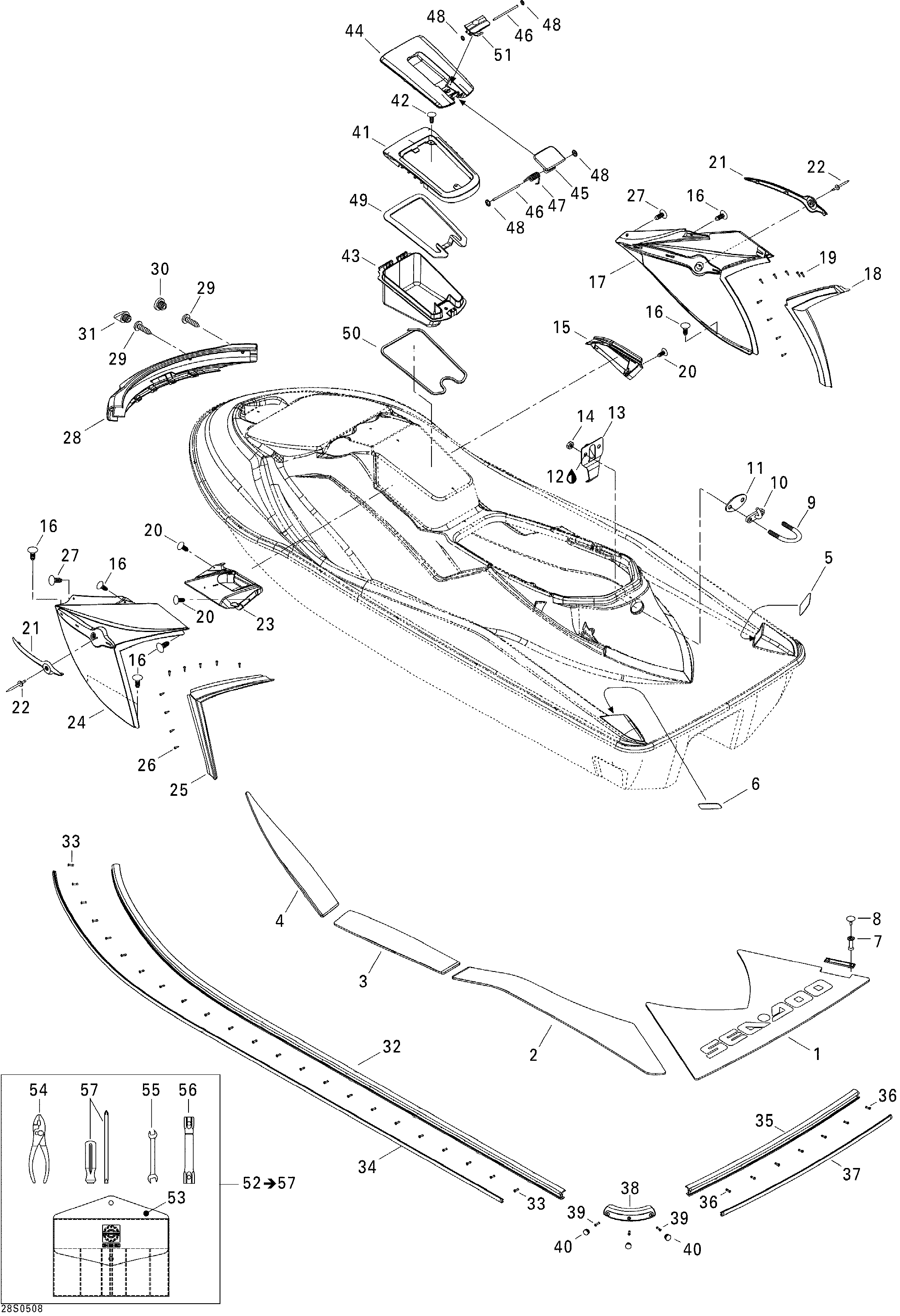

09- Body, Rear View для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1291002140 Rear CarpetRear Carpet
-
2291002162 RH Center Rear CarpetRH Center Rear Carpet
-
2291002164 LH Center Rear CarpetLH Center Rear Carpet
-
3291002166 RH Center Front CarpetRH Center Front Carpet
-
3291002168 LH Center Front CarpetLH Center Front Carpet
-
4291002170 RH Front CarpetRH Front Carpet
-
4291002172 LH Front CarpetLH Front Carpet
-
5291001758 RH Anti-SkidRH Anti-Skid
-
6291001759 LH Anti-SkidLH Anti-Skid
-
7293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
8293000014 Snap CapSnap Cap
-
9292000011 U-clampU-clamp
-
10291001232 HookHook
-
11291001386 Finition Plate, BlackFinition Plate, Black
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13291001747 Retainer PlateRetainer Plate
-
14232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
15269501309 RH Grill, Slate GrayRH Grill, Slate Gray
-
16293730004 Dart, BlackDart, Black
-
17291002081 RH Splash Guard, Pearl BlackRH Splash Guard, Pearl Black
-
18291001784 RH MouldingRH Moulding
-
19209641960 Phillips Tapping Screw M4.2 X 19Phillips Tapping Screw M4.2 X 19
-
20293730006 Dart, BlackDart, Black
-
21269500716 Finition PlateFinition Plate
-
22293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
23269501310 LH Grill, Slate GrayLH Grill, Slate Gray
-
24291002080 LH Splash Guard, Pearl BlackLH Splash Guard, Pearl Black
-
25291001785 LH MouldingLH Moulding
-
26209641960 Phillips Tapping Screw M4.2 X 19Phillips Tapping Screw M4.2 X 19
-
27293730010 Dart, BlackDart, Black
-
28291002069 Bumper Nose, Slate GreyBumper Nose, Slate Grey
-
29250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
30291002070 Bumper Plug, Slate GreyBumper Plug, Slate Grey
-
31291002071 Bumper Plug, Slate GreyBumper Plug, Slate Grey
-
32291002072 Side Bumper, Slate GreySide Bumper, Slate Grey
-
33293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
34291002074 Lateral Bumper TrimLateral Bumper Trim
-
35291002075 Rear Bumper, Slate GreyRear Bumper, Slate Grey
-
36293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
37291002077 Rear Bumper Trim, Metallic SilverRear Bumper Trim, Metallic Silver
-
38291002078 Bumper Corner, Slate GreyBumper Corner, Slate Grey
-
39293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
40291002079 Bumper Plug, Slate GreyBumper Plug, Slate Grey
-
41269501311 Glove Box TrimGlove Box Trim
-
42293730006 Dart, BlackDart, Black
-
43269501281 Glove BoxGlove Box
-
44269501321 Glove Box Door, Slate GreyGlove Box Door, Slate Grey
-
45269500553 Latch, BlackLatch, Black
-
46211400008 PinPin
-
47291000922 Spring LatchSpring Latch
-
48211100002 Push NutPush Nut
-
49293250146 GasketGasket
-
50293250127 GasketGasket
-
51269501289 Latch (Black)Latch (Black)
-
52294000682 Tool Kit. Includes 52 to 57Tool Kit. Includes 52 to 57
-
55529017300 Fork WrenchFork Wrench
-
56529035731 Socket WrenchSocket Wrench
-
57529019200 Driver ScrewDriver Screw
