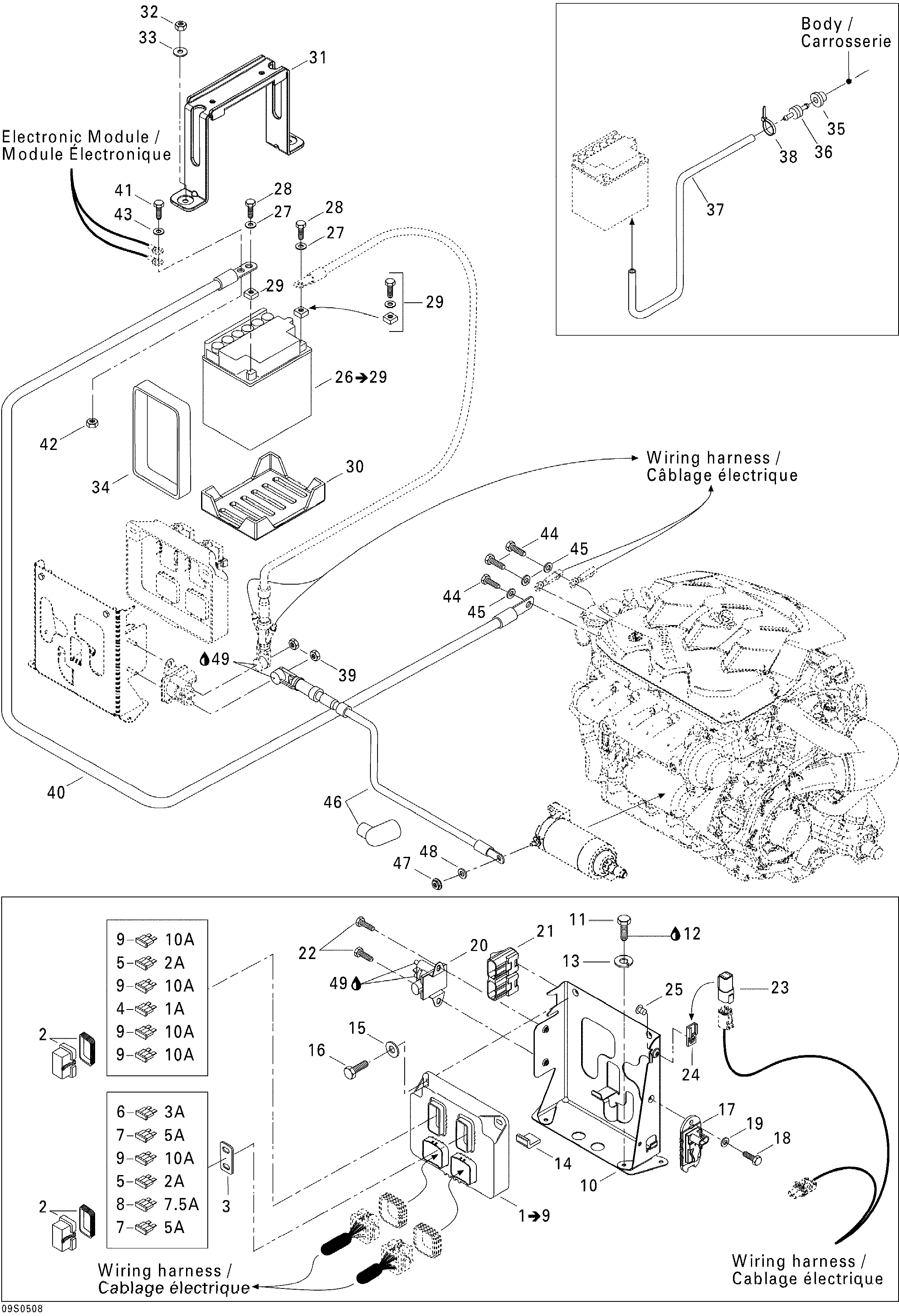

10- Electrical System для BRP GTX 4-TEC, LTD SCIC - 2005
-
№АртикулНазвание
-
1278002043 Program Module. Includes 1 to 9Program Module. Includes 1 to 9
-
2278001618 Fuse CoverFuse Cover
-
3278001719 Fuse Holder FoamFuse Holder Foam
-
4409012800 Fuse, 1 AmpereFuse, 1 Ampere
-
5278001442 Fuse, 2 AmperesFuse, 2 Amperes
-
6278001196 Fuse, 3 AmperesFuse, 3 Amperes
-
7278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
8278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
9278001197 Fuse, 10 AmperesFuse, 10 Amperes
-
10278002005 Module SupportModule Support
-
11211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
12293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
13211200043 Lock WasherLock Washer
-
14278001166 Module ProtectionModule Protection
-
15234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
16207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
17278001992 Interrupter ''t.o.p.s.''Interrupter ''t.o.p.s.''
-
18207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
19234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
20278001802 Starter RelayStarter Relay
-
21710000342 Housing CoverHousing Cover
-
22207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
23278001725 Diagnostic Connector CapDiagnostic Connector Cap
-
24270000141 ClipClip
-
25204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
26278001882 Battery, 30 Amperes. Includes 26 to 29Battery, 30 Amperes. Includes 26 to 29
-
27211200018 Flat Washer M6Flat Washer M6
-
28211000045 Battery ScrewBattery Screw
-
29295500849 Battery Fastener KitBattery Fastener Kit
-
30278001582 Lower Battery PadLower Battery Pad
-
31278001677 Battery SupportBattery Support
-
32232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
33234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
34278001764 Battery Strap 337 mmBattery Strap 337 mm
-
35293720029 GrommetGrommet
-
36275500499 Check ValveCheck Valve
-
37275500446 Hose 6 mmHose 6 mm
-
38293750001 Tie Rap 94 mmTie Rap 94 mm
-
39232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
40278001611 Battery Ground Cable Ass'yBattery Ground Cable Ass'y
-
41207161260 Hex Screw M6 X 12Hex Screw M6 X 12
-
42232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
43234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
44207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
45234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
46278002061 Starter CableStarter Cable
-
47232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
48234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
49293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
