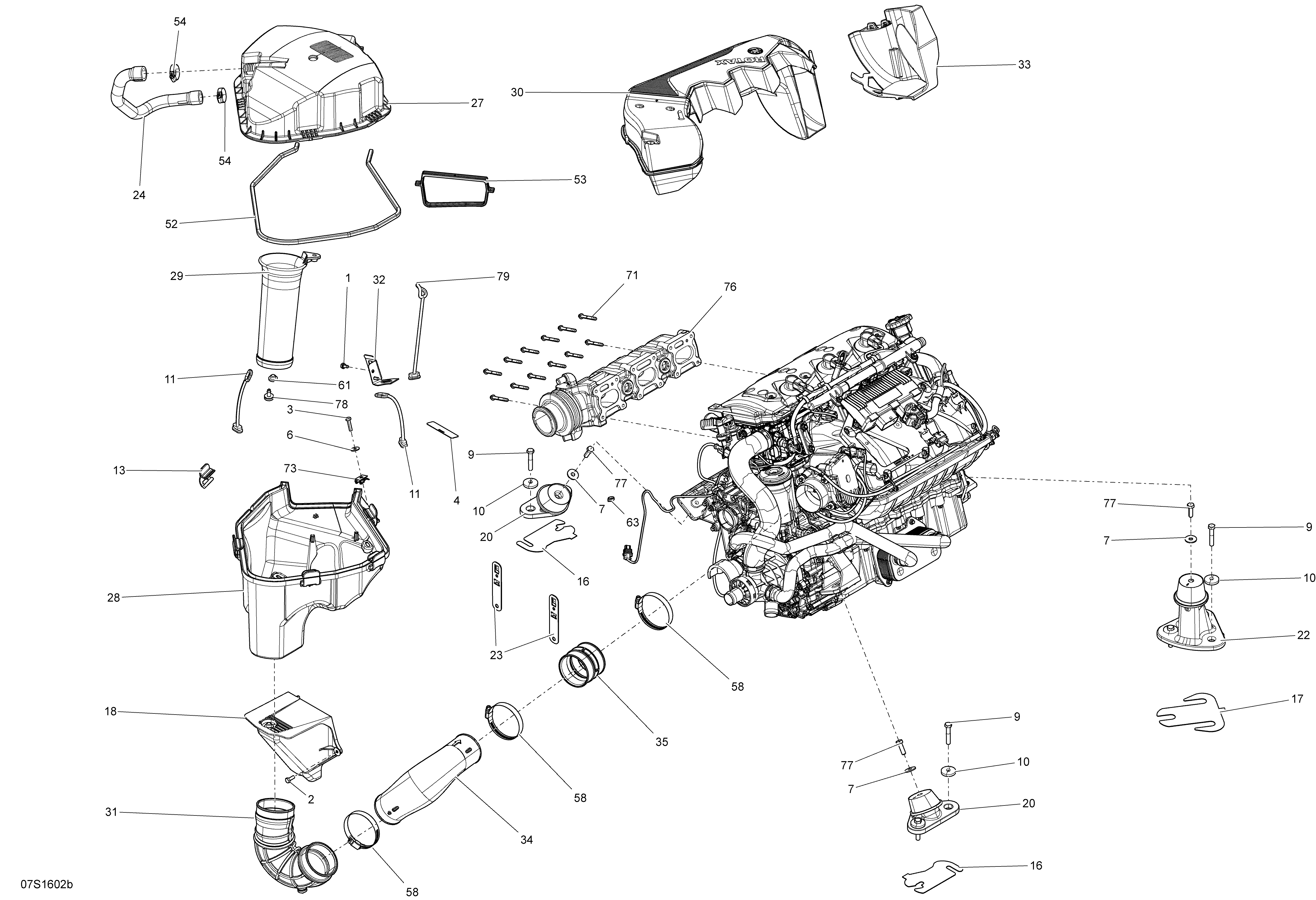

01- Engine - GTX S 155 для BRP GTX - 2016
-
№АртикулНазвание
-
1207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
2207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
3207362560 Hex. Screw M6 X 25, Scotch GripHex. Screw M6 X 25, Scotch Grip
-
4219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
6234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
10250200018 Cone Washer. Platform Piranha Fixe / SCone Washer. Platform Piranha Fixe / S
-
10250200018 Cone WasherCone Washer
-
11269501299 StrapStrap
-
13269501718 ClipClip
-
16270000762 Shim 1.3 mmShim 1.3 mm
-
17270000770 Shim 1.3 mmShim 1.3 mm
-
18270000791 Air Box SupportAir Box Support
-
20270000882 Rubber MountRubber Mount
-
22270000886 Rubber MountRubber Mount
-
23270000946 Holding StrapHolding Strap
-
24270000948 Formed HoseFormed Hose
-
27273000249 Air Silencer UpperAir Silencer Upper
-
28273000250 Air Silencer LowAir Silencer Low
-
29273000359 Intake HoseIntake Hose
-
30273000253 Intake TubeIntake Tube
-
31273000257 Connector HoseConnector Hose
-
32273000260 Air Box BracketAir Box Bracket
-
33273000271 DeflectorDeflector
-
34273000327 Hose IntakeHose Intake
-
35273000277 Intake FittingIntake Fitting
-
52293200123 Neoprene SealNeoprene Seal
-
53293250190 SealSeal
-
54293650051 Tridon Gear ClampTridon Gear Clamp
-
58293650179 Tridon Clamp. Engine 1503 NA iTCTridon Clamp. Engine 1503 NA iTC
-
58293650179 Tridon Clamp. Platform Piranha S with 1503 NA iTCTridon Clamp. Platform Piranha S with 1503 NA iTC
-
61293720064 GrommetGrommet
-
63293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
71420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
73420942108 Panel Nut M6 X 1Panel Nut M6 X 1
-
76274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
77207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
78275500454 Check ValveCheck Valve
-
79273000344 StrapStrap
