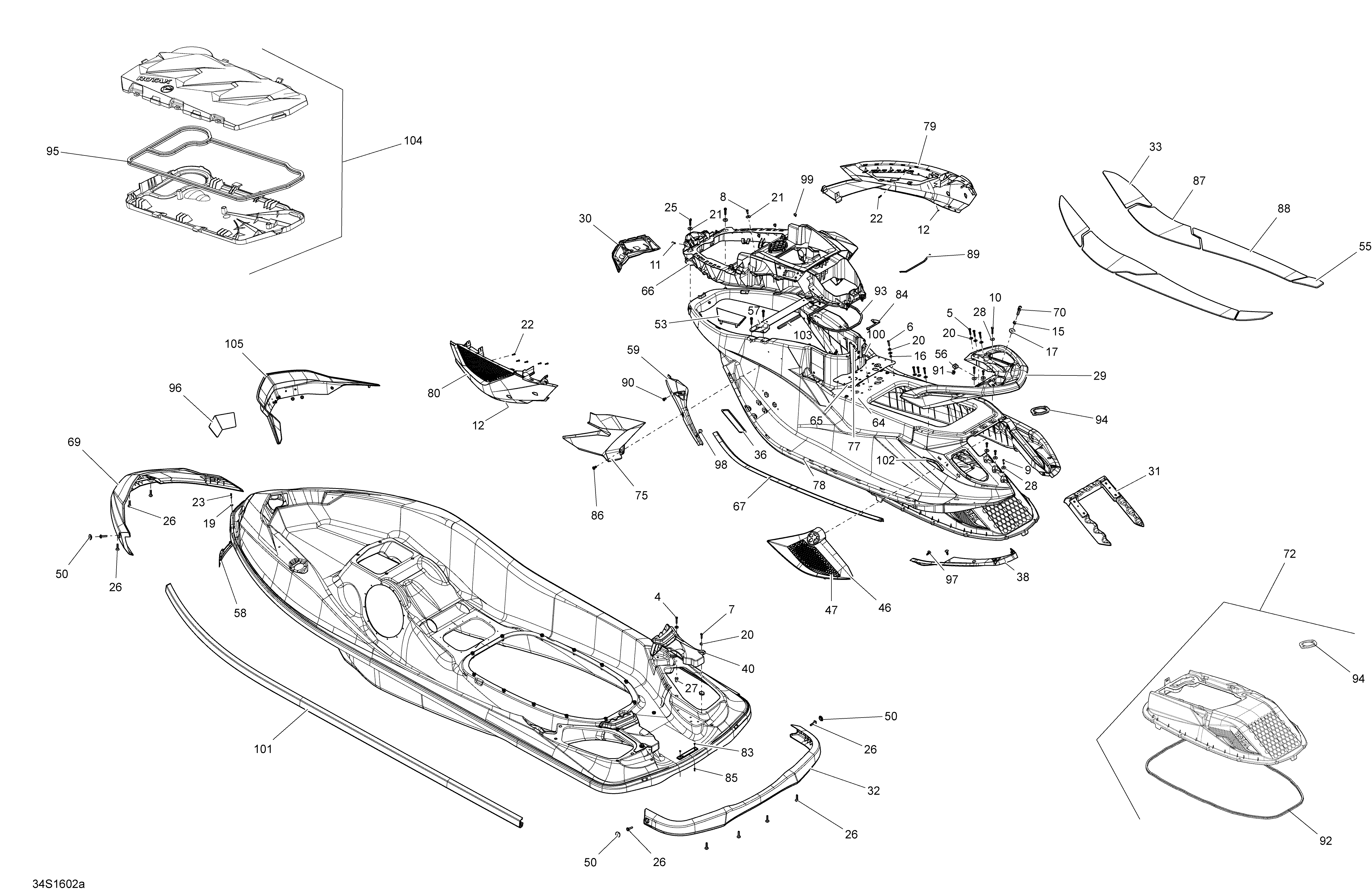

09- Body - With Suspension для BRP GTX - 2016
-
№АртикулНазвание
-
1204100049 Phillips Tapping Screw #8 X 1''Phillips Tapping Screw #8 X 1''
-
2205364060 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
3205364560 Socket Screw Head M6 X 45Socket Screw Head M6 X 45
-
4205463560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
5207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
6207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
7250000681 Hex Screw M6 X 30Hex Screw M6 X 30
-
8207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
9207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
10207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
11211000106 Hex. Forming Screw M6 X 16Hex. Forming Screw M6 X 16
-
12211100002 Push NutPush Nut
-
13219903084 Caution Decal, Engine OilCaution Decal, Engine Oil
-
14219903090 Warning Decal, Gasoline VaporWarning Decal, Gasoline Vapor
-
15232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
16232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
16232561200 Elastic Stop Nut M6, Brass. Model GTX iSElastic Stop Nut M6, Brass. Model GTX iS
-
17234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
18234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
19234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
20234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
21234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
22241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
23241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
24241731260 Oval Philipp Screw KA30 x 12Oval Philipp Screw KA30 x 12
-
25243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
26250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
27250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
28250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
29291004621 Black Rear HandleBlack Rear Handle
-
30269501797 Front GridFront Grid
-
31279000214 Rear Pivot Ass'yRear Pivot Ass'y
-
32291004274 Rear BumperRear Bumper
-
33291002608 RH Front CarpetRH Front Carpet
-
33291002607 LH Front CarpetLH Front Carpet
-
36291002695 RH Footrest CoverRH Footrest Cover
-
36291002694 LH Footrest CoverLH Footrest Cover
-
38291002697 RH Rear Scraper JointRH Rear Scraper Joint
-
38291002696 LH Rear Scraper JointLH Rear Scraper Joint
-
40291002698 RH Rear GrillRH Rear Grill
-
40291002658 LH Rear GrillLH Rear Grill
-
41291002724 Front Rewinder CoverFront Rewinder Cover
-
42291002726 ButtonButton
-
43291002727 Under CamUnder Cam
-
44291002729 Rope GuideRope Guide
-
45291002733 Rope 3/16''Rope 3/16''
-
46291002741 RH Lateral Rear TrimRH Lateral Rear Trim
-
46291002739 LH Lateral Rear TrimLH Lateral Rear Trim
-
47291002742 RH Rear Side GrilleRH Rear Side Grille
-
47291002740 LH Rear Side GrilleLH Rear Side Grille
-
50291002744 Bumber CapBumber Cap
-
51291002754 Button CapButton Cap
-
52291002755 Double Cage Nut Ass'yDouble Cage Nut Ass'y
-
53291002756 Front Rewinder CapFront Rewinder Cap
-
54291002762 Inside CoverInside Cover
-
55291002776 RH Rear CarpetRH Rear Carpet
-
55291002775 LH Rear CarpetLH Rear Carpet
-
56271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
57291002778 Module StifnerModule Stifner
-
58291002818 Deck NoseDeck Nose
-
59291002838 RH Front Scraper JointRH Front Scraper Joint
-
59291002837 LH Front Scraper JointLH Front Scraper Joint
-
62291003023 Jam Cleat System Ass'yJam Cleat System Ass'y
-
64291003306 Lower Central ReinforcementLower Central Reinforcement
-
65291002926 Upper Reinforcement. Model GTX S & iSUpper Reinforcement. Model GTX S & iS
-
66291004400 Front ModuleFront Module
-
67291003818 Mid JointMid Joint
-
69291004275 Front BumperFront Bumper
-
70291003878 Seat StudSeat Stud
-
71291004019 Retractable Rope Ass'yRetractable Rope Ass'y
-
72291004056 Deck Extension Ass'yDeck Extension Ass'y
-
75291004258 RH Cosmetic. Model GTX S & iSRH Cosmetic. Model GTX S & iS
-
75291004256 LH Cosmetic. Model GTX S & iSLH Cosmetic. Model GTX S & iS
-
77291004210 Seat PivotSeat Pivot
-
78291004211 Upper Deck AssUpper Deck Ass
-
79291004202 Front RH Cosmetic Ass. Model GTX iSFront RH Cosmetic Ass. Model GTX iS
-
79291004249 Front RH Cosmetic Ass. Model GTX SFront RH Cosmetic Ass. Model GTX S
-
80291004205 Front LH Cosmetic Ass. Model GTX iSFront LH Cosmetic Ass. Model GTX iS
-
80291004251 Front LH Cosmetic Ass. Model GTX SFront LH Cosmetic Ass. Model GTX S
-
83293000014 Black Snap CapBlack Snap Cap
-
84293000118 CapCap
-
85293150016 Rivet 1/8''Rivet 1/8''
-
86293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
87291003464 RH Center Front CarpetRH Center Front Carpet
-
87291003463 LH Center Front CarpetLH Center Front Carpet
-
88291003466 RH Center Rear CarpetRH Center Rear Carpet
-
88291003465 LH Center Rear CarpetLH Center Rear Carpet
-
89293250376 SealSeal
-
90293150186 Pop Rivet 3/16Pop Rivet 3/16
-
91232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
92293250185 Lip SealLip Seal
-
93293250200 Neoprene SealNeoprene Seal
-
94293250209 Lip SealLip Seal
-
95293250213 GasketGasket
-
96293250231 GasketGasket
-
97293730006 Black DartBlack Dart
-
98293730010 Black DartBlack Dart
-
99293830005 Rubber BumperRubber Bumper
-
100572051500 Cap. Model GTX SCap. Model GTX S
-
100572051500 Cap. Model GTX iSCap. Model GTX iS
-
101291004304 BumperBumper
-
102293250087 Gasket, NeopreneGasket, Neoprene
-
103271000110 Protection TrimProtection Trim
-
104295501145 Vent AdaptorVent Adaptor
-
105291004280 DeflectorDeflector
